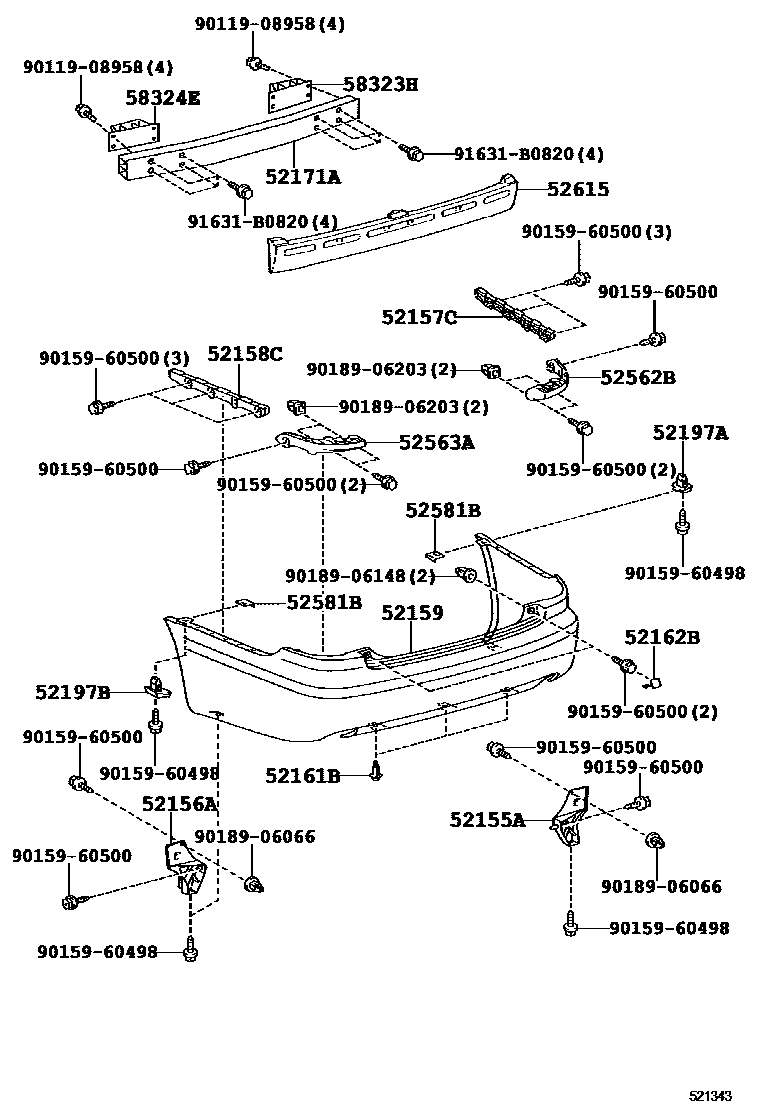

REAR BUMPER & BUMPER STAY
52155ASUPPORT, REAR BUMPER SIDE, RH
52156ASUPPORT, REAR BUMPER SIDE, LH
52157CSUPPORT, REAR BUMPER SIDE, NO.2 RH
52158CSUPPORT, REAR BUMPER SIDE, NO.2 LH
52159COVER, REAR BUMPER
PAINT REQ.
52161BPIECE, REAR BUMPER
sub52161-0K040
52162BPLATE, REAR BUMPER, NO.1
52171AREINFORCEMENT, REAR BUMPER, NO.1
52197ABRACKET, REAR BUMPER SEAL, RH
52197BBRACKET, REAR BUMPER SEAL, LH
52562BRETAINER, REAR BUMPER, UPPER RH
52563ARETAINER, REAR BUMPER, UPPER LH
52581BPROTECTOR, REAR BUMPER
52615ABSORBER, REAR BUMPER ENERGY
58323HREINFORCEMENT, REAR BUMPER ARM SUPPORT, RH
58324EREINFORCEMENT, REAR BUMPER ARM SUPPORT, LH
9011908958
main90119-08958
9015960498
main90159-60498
9015960500
main90159-60500
9018906066
main90189-06066
9018906148
main90189-06148
9018906203
main90189-06203
91631B0820
main91631-B0820
23 parts on this diagram · 1 diagram in section
