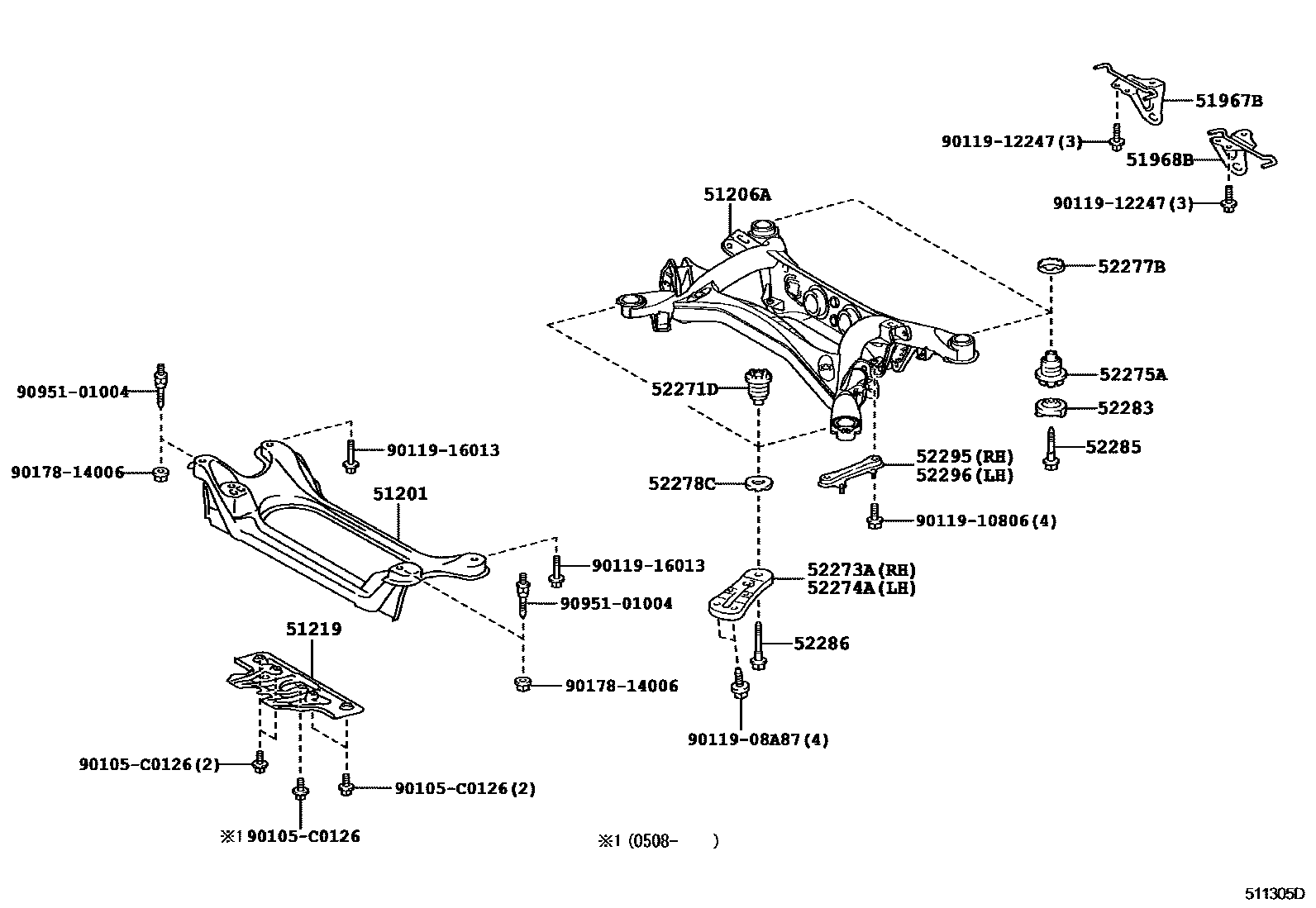

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1 0002 1UNDER COVER

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51210-0N010iGRS18#200502-200909

sub51210-0N011

main51210-0N011iGRS18#200910

51206AMEMBER SUB-ASSY, REAR SUSPENSION

main51206-0N010iGRS18#200502-200907

sub51206-0N011

main51206-0N011iGRS18#200908

51219PROTECTOR, FRONT SUSPENSION MEMBER, LWR

main51219-0N010iGRS18#200502

51967BHOOK, TRANSPORT, REAR RH

main51967-0N010iGRS18#200502-200711

sub51967-0N011

main51967-0N011iGRS18#200712-200911

51968BHOOK, TRANSPORT, REAR LH

main51968-0N010iGRS18#200502-200711

sub51968-0N011

main51968-0N011iGRS18#200712-200911

52271DCUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT

main52271-0N010iGRS18#200502

52273ASTOPPER, REAR SUSPENSION MEMBER, LOWER RH

main52273-30080iGRS18#¥1,520200502

52274ASTOPPER, REAR SUSPENSION MEMBER, LOWER LH

main52273-30080iGRS18#¥1,520200502

52275ACUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, REAR

main52275-0N010iGRS18#200502

52277BSTOPPER, REAR SUSPENSION MEMBER, REAR UPPER

main52277-0N010iGRS18#200502

52278CSTOPPER, REAR SUSPENSION MEMBER, REAR LOWER

main52278-0N010iGRS18#200502

52283STOPPER, DIFFERENTIAL SUPPORT MEMBER, LOWER

main52283-30060iGRS18#¥1,190200502

52285BOLT, DIFFERENTIAL SUPPORT MEMBER MOUNTING, NO.1

main52285-30021iGRS18#¥1,360200502

52286BOLT, DIFFERENTIAL SUPPORT MEMBER MOUNTING, NO.2

main52286-30010iGRS182¥2,760200502-200507

main52286-53020iGRS18#¥2,680200508

52295BRACE, REAR SUSPENSION MEMBER, RH

main52295-0P010iGRS18#200510

main52295-30030iGRS182¥2,040200502-200509

52296BRACE, REAR SUSPENSION MEMBER, LH

main52295-0P010iGRS18#200510

main52295-30030iGRS182¥2,040200502-200509

90105C0126

main90105-C0126

9011908A87

main90119-08A87¥100

9011910806

main90119-10806¥810

9011912247

main90119-12247¥260

9011916013

main90119-16013¥870

9017814006

main90178-14006¥160

9095101004

main90951-01004¥590

23 parts on this diagram · 2 diagrams in section
