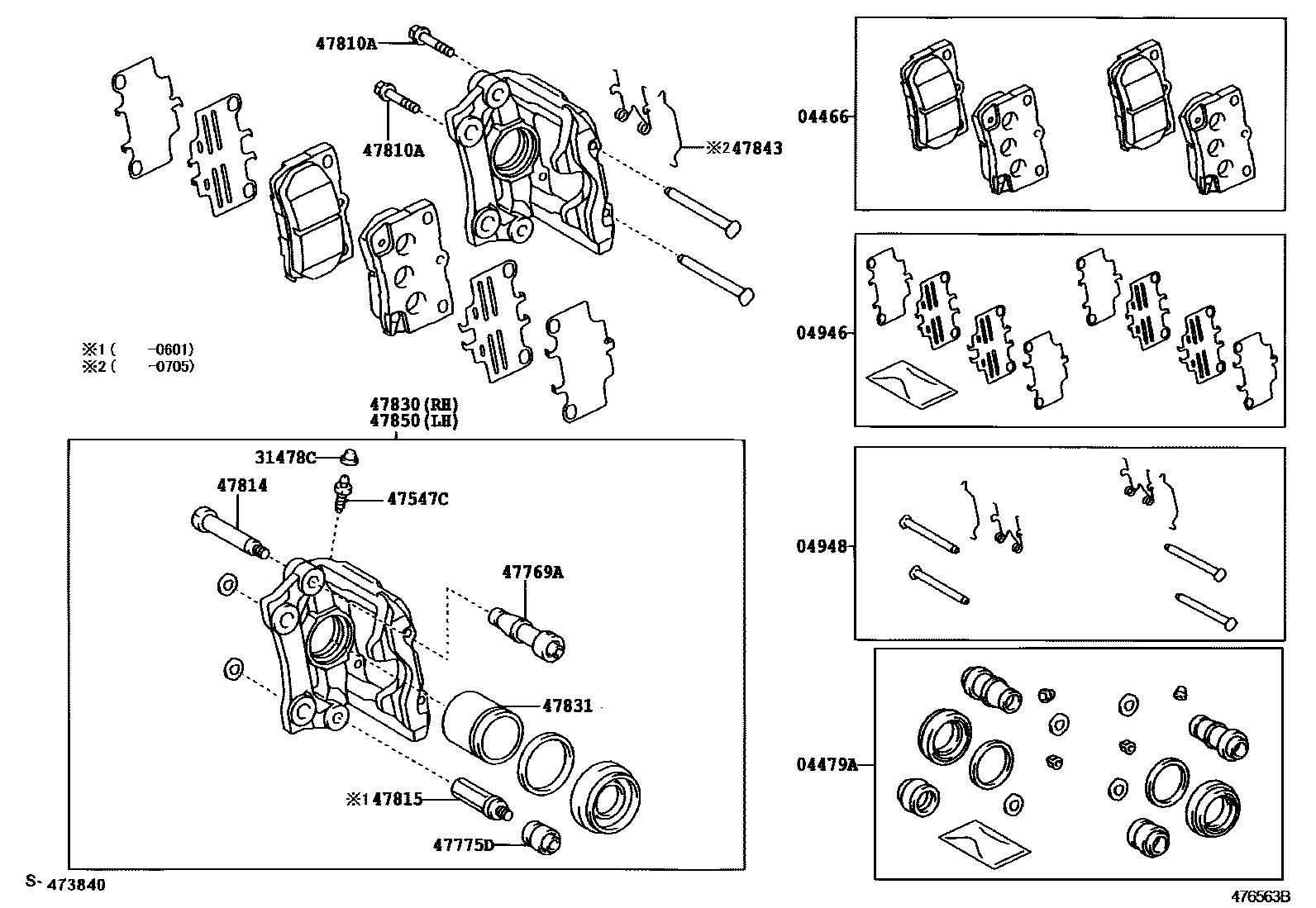

REAR DISC BRAKE CALIPER & DUST COVER

04466PAD KIT, DISC BRAKE, REAR

main04466-30210iGRS18#200502-200904

MARK AK PA561H

main04466-30230iGRS18#200904

MARK AK NS254

04479ACYLINDER KIT, DISC BRAKE, REAR

main04479-0P010iGRS18#200508-200601

main04479-0P020iGRS18#200601

sub04479-0N030

main04479-30340iGRS182200502-200508

sub04479-30550

04946SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)

main04946-0P010iGRS18#200508

main04946-30110iGRS182200502-200507

04948FITTING KIT, DISC BRAKE, REAR

main04948-0P010iGRS18#200508-200705

sub04948-0P020

main04948-0P020iGRS18#200705

main04948-30090iGRS182200502-200508

sub04948-30140

31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)

main31478-0N010iGRS18#200502

47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)

main47547-27030iGRS18#200502

47769ABUSH, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)

main47879-0P010iGRS18#200508

main47879-30300iGRS182200502-200508

47775DBOOT, BUSH DUST(FOR REAR DISC BRAKE)

main47775-32050iGRS182200502-200508

main47875-0P010iGRS18#200508-200601

main47875-0P011iGRS18#200601

47810ABOLT, HEXAGON(FOR REAR CALIPER)

main90105-10525iGRS18#200502-200911

47814PIN, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)

main47814-30300iGRS18#200502

47815PIN, REAR CYLINDER SLIDE, NO.2(FOR REAR DISC BRAKE)

main47815-30300iGRS18#200502-200601

47830CYLINDER ASSY, DISC BRAKE, REAR RH

main47830-0N010iGRS182200502-200508

main47830-0P010iGRS18#200508-200601

main47830-0P011iGRS18#200601-200911

sub47830-0N040

47831PISTON, REAR DISC BRAKE

main47831-30300iGRS18#200502

47843CLIP, REAR DISC BRAKE PIN HOLD

main47843-30300iGRS18#200502-200705

47850CYLINDER ASSY, DISC BRAKE, REAR LH

main47850-0N010iGRS182200502-200508

main47850-0P010iGRS18#200508-200601

main47850-0P011iGRS18#200601-200911

sub47850-0N040

15 parts on this diagram · 1 diagram in section
