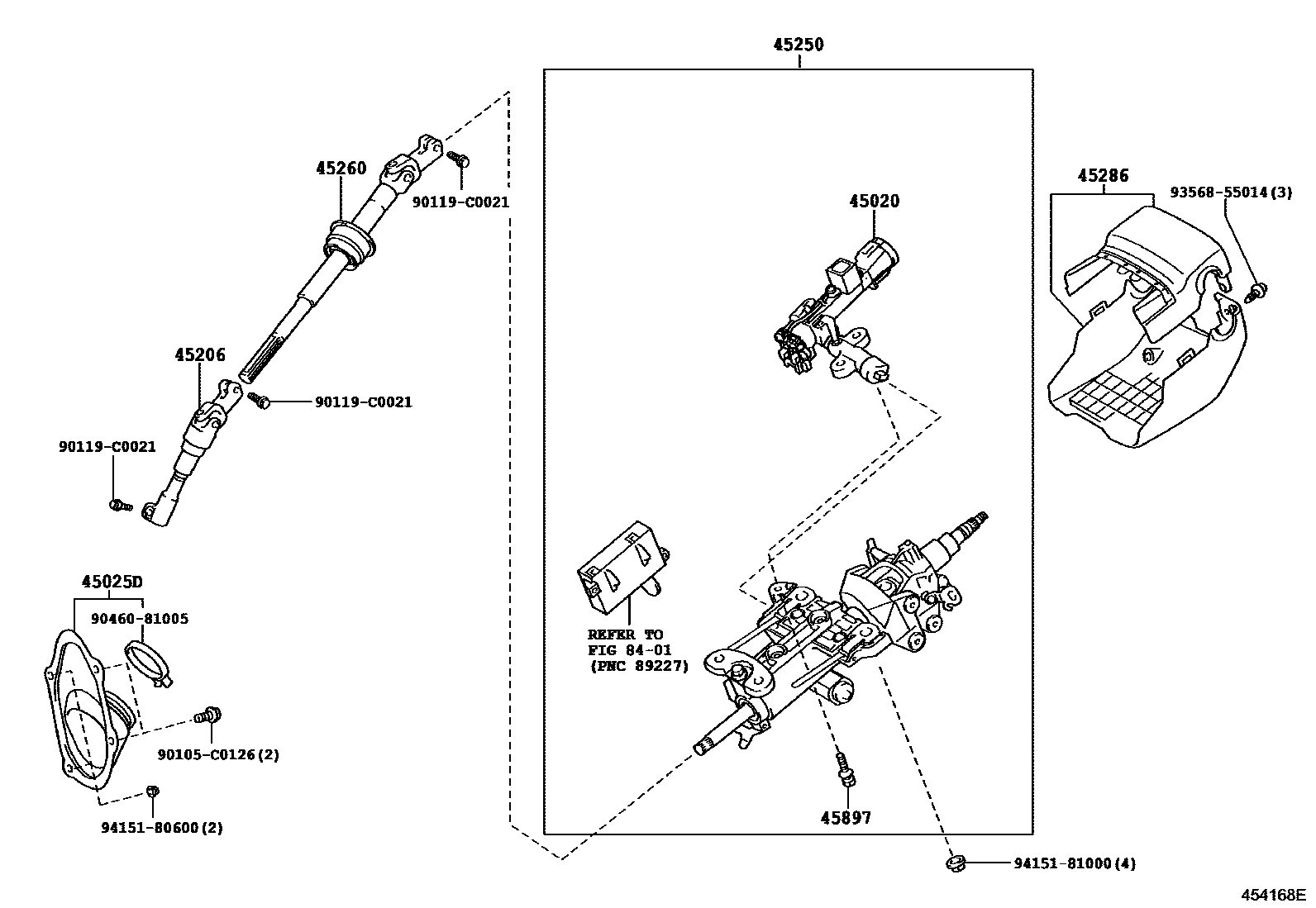

STEERING COLUMN & SHAFT

0001 1 0002 1W(SMART)

45020BRACKET ASSY, STEERING COLUMN UPPER W/SWITCH

main45020-0N010iGRS18#..25,25ROY,ROYEX200502

45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1

main45025-0N010iGRS18#200502

45206YOKE SUB-ASSY, STEERING SLIDING W/SHAFT

main45206-0N010iGRS18#200502-200601

sub45206-0N020

main45206-0N020iGRS18#200602

45250COLUMN ASSY, STEERING

main45250-0N010iGRS18#..25,25ROY,ROYEX200502-200606

sub45250-0N011

main45250-0N011iGRS18#..25,25ROY,ROYEX200607-200911

main45250-0N020iGRS182..ROYEX200502-200606

WIRELESS DOOR LOCK-W(SMART)

sub45250-0N021

main45250-0N021iGRS182..ROY,ROYG200607-200911

45260SHAFT ASSY, STEERING INTERMEDIATE, NO.2

main45260-0N010iGRS18#200502-200708

sub45260-0N011

main45260-0N011iGRS18#200709

45286COVER, STEERING COLUMN

main45286-0N901-C0iGRS18#200502

BLACK,TRIM2#

main45286-0N901-E0iGRS18#200502

ORCHID BROWN,TRIM0#

45897BOLT, STEERING LOCK SET

main45897-12020iGRS18#200502

8401

90105C0126

main90105-C0126

90119C0021

main90119-C0021

9046081005

main90460-81005

9356855014

main93568-55014

9415180600

main94151-80600

9415181000

main94151-81000

14 parts on this diagram · 2 diagrams in section
