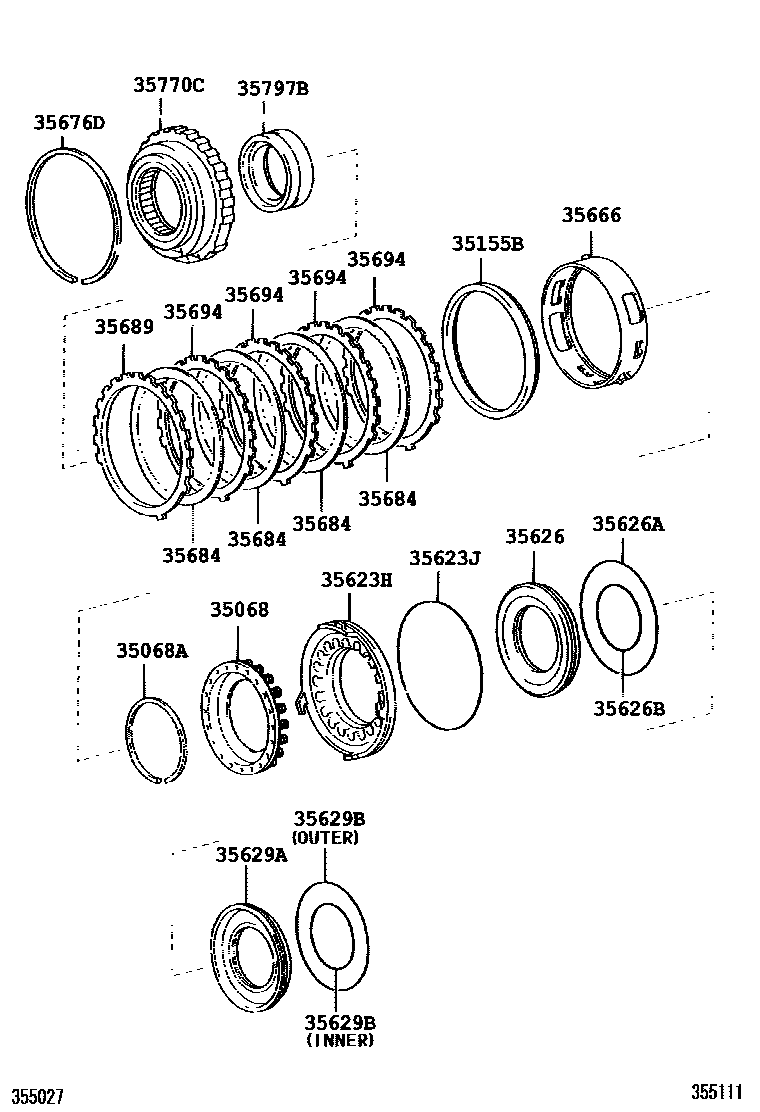

BRAKE NO.3, 1ST & REVERSE BRAKE (ATM)

35068SPRING SUB-ASSY, 1ST & REVERSE BRAKE RETURN

main35068-60010iGRS182200502

35068ARING, SHAFT SNAP (FOR 1ST & REVERSE BRAKE RETURN SPRING)

main90520-61001iGRS182200502

35155BSLEEVE, REAR COVER

main35155-50010iGRS182200502

35623HPISTON, 1ST & REVERSE BRAKE

main35623-50030iGRS182200502

35623JRING, O (FOR 1ST & REVERSE BRAKE)

main90301-99087iGRS182200502

35626SLEEVE, BRAKE REACTION

main35626-50010iGRS182200502

35626ARING (FOR BRAKE REACTION SLEEVE OUTER)

main90301-99144iGRS182200502

35626BRING (FOR BRAKE REACTION SLEEVE INNER)

main90301-79003iGRS182200502

35629APISTON, BRAKE, NO.4

main35629-50020iGRS182200502

35629BRING, O (FOR BRAKE PISTON NO.4)

main90301-67006iGRS182200502

INNER

main90301-99084iGRS182200502

OUTER

35666TUBE, BRAKE APPLY

main35666-50010iGRS182200502

35676DRING, HOLE SNAP (FOR 1ST & REVERSE BRAKE FLANGE)

main90521-99131iGRS182200502

35684DISC, BRAKE, NO.4

main35684-50010×4iGRS182200502

35689FLANGE, BRAKE, NO.4

main35689-60100iGRS182200502

T=1.8,MARK 0

main35689-60110iGRS182200502

T=2.0,MARK 2

main35689-60120iGRS182200502

T=2.2,MARK 4

main35689-60130iGRS182200502

T=2.4,MARK 6

main35689-60140iGRS182200502

T=2.6,MARK 8

main35689-60150iGRS182200502

T=2.8,MARK 10

main35689-60160iGRS182200502

T=3.0,MARK 12

main35689-60170iGRS182200502

T=3.2,MARK 14

35694PLATE, BRAKE, NO.4

main35694-60011×4iGRS182200502

35770CCLUTCH ASSY, 1WAY NO.3

main35770-50010iGRS182200502

sub35770-60030

35797BRACE, 1 WAY CLUTCH, INNER

main35797-50030iGRS182200502-200601

main35797-50031iGRS182200601

17 parts on this diagram · 1 diagram in section
