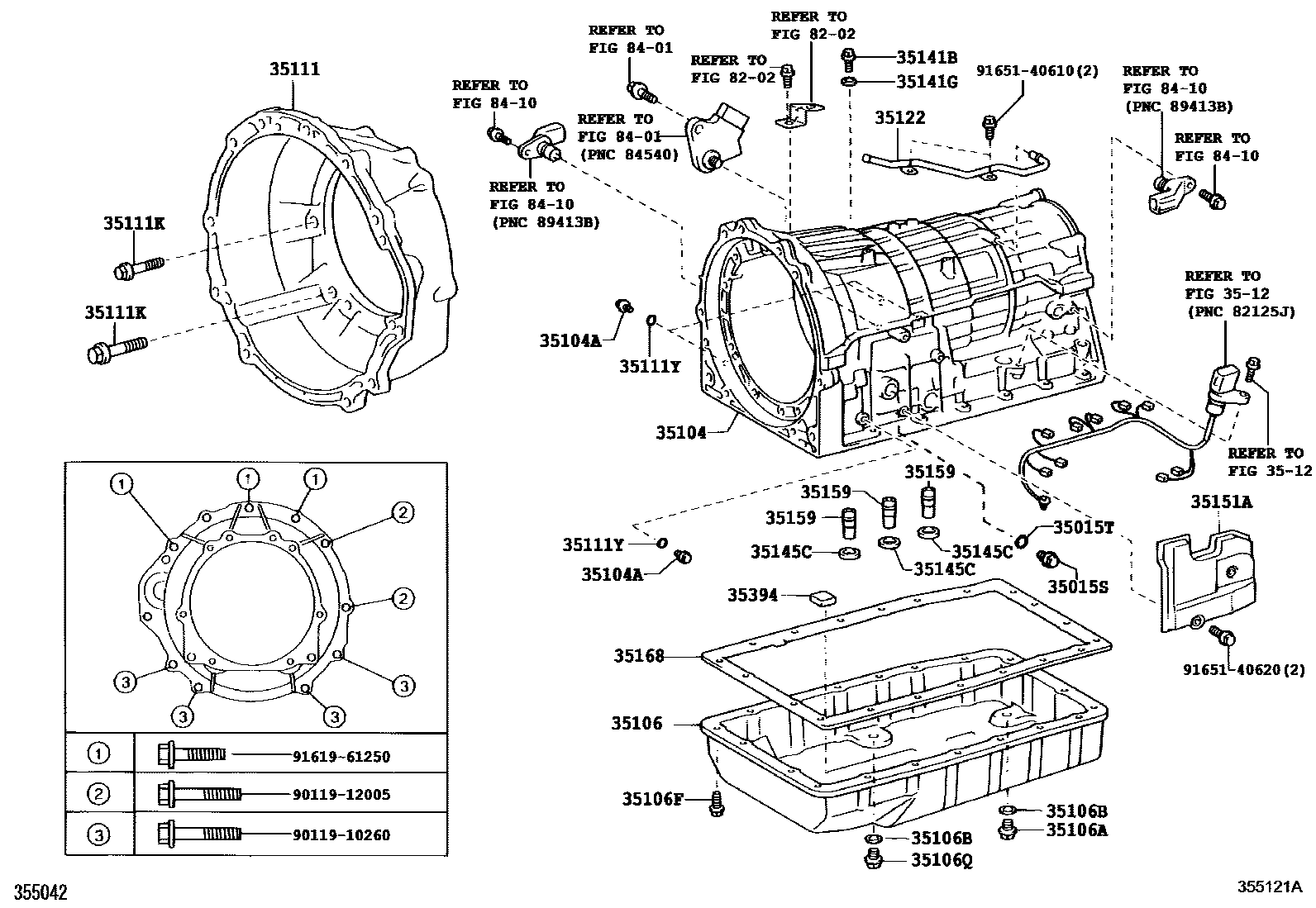

TRANSMISSION CASE & OIL PAN (ATM)

0001 1A760E 0002 1A960E

35015SPLUG, STRAIGHT(FOR TRANSMISSION CASE ADAPTER)

main90341-18059iGRS18#200502

35015TRING, O(FOR TRANSMISSION CASE ADAPTER)

main90301-15004iGRS188200502-200710

main90301-C0010iGRS188200710

sub90301-15004

35104CASE SUB-ASSY, AUTOMATIC TRANSMISSION

main35104-50020iGRS182200502

35104APLUG, AUTOMATIC TRANSMISSION CASE

main90341-08001iGRS182200502

35106PAN SUB-ASSY, AUTOMATIC TRANSMISSION OIL

main35106-0P010iGRS188200710

sub35106-22120

main35106-22120iGRS188200510-200710

main35106-50040iGRS182200502

35106APLUG SUB-ASSY, DRAIN (ATM)

main90341-10011iGRS18#200502

35106BGASKET, DRAIN PLUG (ATM)

main35178-30010iGRS18#200502

35106FBOLT (FOR AUTOMATIC TRANSMISSION OIL PAN)

main90119-06117iGRS18#200502-200610

sub90119-06173

main90119-06173iGRS188200610-200710

35106QPLUG (FOR AUTOMATIC TRANSMISSION OIL PAN)

main90341-10021iGRS18#200502

35111HOUSING, AUTOMATIC TRANSMISSION

main35111-0N010iGRS182200502

(L)

sub35111-30190

main35111-0P010iGRS188200510-200710

(L)

sub35111-22110

main35111-0P010iGRS188200710

sub35111-22110

main35111-22110iGRS188200510-200710

(J)

main35111-30190iGRS182200502

(J)

35111KBOLT (FOR TRANSMISSION HOUSING & CASE SETTING)

main90119-10232iGRS18#200502

*10-1.5PX35-30

main90119-10947iGRS18#200502

*10-1.50PX35-29.3

main90119-12378iGRS18#200502

*12-1.75PX38-30

35111YRING, O (FOR AUTOMATIC TRANSMISSION CASE)

main90301-06196iGRS182200502

3512

35122TUBE, BREATHER (FOR AUTOMATIC TRANSAXLE)

main90930-03171iGRS182200502

main90930-03181iGRS188200510

35141BPLUG (FOR AUTOMATIC TRANSMISSION CASE)

main90341-14011iGRS182200502

35141GRING, O (FOR AUTOMATIC TRANSMISSION CASE)

main90301-11030iGRS182200502

35145CGASKET, TRANSAXLE CASE

main35145-60020iGRS18#200502

35151ACOVER, TRANSAXLE CASE, UPPER

main35151-22020iGRS188200510

main35151-30040iGRS182200502

35159GASKET, BRAKE DRUM

main35159-60010iGRS18#200502

35168GASKET, AUTOMATIC TRANSMISSION OIL PAN

main35168-22020iGRS188200510

main35168-60010iGRS182200502

35394MAGNET, OIL CLEANER (FOR TRANSMISSION)

main35394-0P010iGRS188200710

sub35394-30011

main35394-30011iGRS188200502-200710

8202

8401

8410

9011910260

main90119-10260

9011912005

main90119-12005

9161961250

main91619-61250

9165140610

main91651-40610

9165140620

main91651-40620

29 parts on this diagram · 2 diagrams in section
