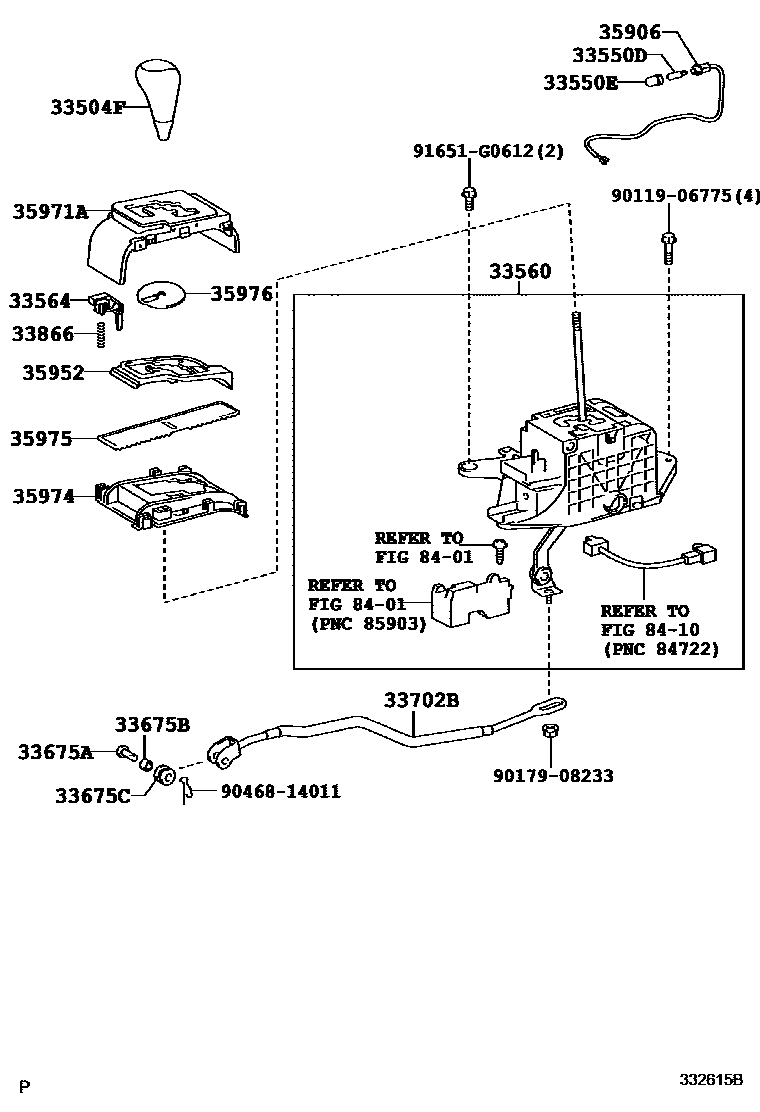

SHIFT LEVER & RETAINER

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-0N010-C0iGRS182..ROYG200502-200911

BLACK,TRIM2#

main33504-0N010-E0iGRS182..ROYG200502-200911

ORCHID BROWN,TRIM0#

main33504-0N020-C0iGRS182..ROY200502-200710

BLACK,TRIM2#

main33504-0N020-C0iGRS182..ROY200710-200911

BLACK,TRIM20

main33504-0N020-E0iGRS182..ROY200502-200911

ORCHID BROWN,TRIM0#

main33504-0N030-C0iGRS18#..25,25ROY,ROYEX200502-200911

BLACK,TRIM2#

main33504-0N030-E0iGRS18#..25,25ROY,ROYEX200502-200911

ORCHID BROWN,TRIM0#

33550DBULB, POSITION INDICATOR LAMP

main90981-11018iGRS18#200502

12V 1.2W W/O SOCKET

33550ECAP, POSITION INDICATOR LAMP

main90339-04049iGRS18#200502

33560UNIT ASSY, SHIFT LOCK CONTROL

main33560-0N010iGRS182..ROY,ROYG200502

main33560-0N020iGRS18#..25,25ROY,ROYEX200502

33564LINK, SHIFT LOCK RELEASE, NO.1

main33564-0N010iGRS18#200601

main33564-30170iGRS18#200502-200601

33675APIN, W/HOLE (FOR TRANSMISSION CONTROL ROD)

main33726-30020iGRS18#200502

33675BBUSH (FOR TRANSMISSION CONTROL ROD)

main90560-08091iGRS18#200502-200911

33675CGROMMET (FOR TRANSMISSION CONTROL ROD)

main90480-17013iGRS18#200502-200911

33702BROD SUB-ASSY, GEAR SHIFTING, NO.1 (FOR FLOOR SHIFT)

main33702-22140iGRS188200510-200911

main33702-30580iGRS182200502-200911

33866SPRING, SHIFT LOCK RELEASE

main33866-50010iGRS18#200502

35906WIRE SUB-ASSY, INDICATOR LAMP

main35906-30140iGRS18#200502

35952LENS, POSITION INDICATOR

main35952-30130iGRS18#200502

35971AHOUSING, POSITION INDICATOR, UPPER

main35971-30480iGRS18#200502

35974HOUSING, POSITION INDICATOR, LOWER

main35974-0N010iGRS18#200601

main35974-30160iGRS18#200502-200601

35975COVER, SLIDE (FOR POSITION INDICATOR)

main35975-50030iGRS18#200502

35976COVER, SLIDE, NO.2 (FOR POSITION INDICATOR)

main35976-50020iGRS18#200502

8401

8410

9011906775

main90119-06775

9017908233

main90179-08233

9046814011

main90468-14011

91651G0612

main91651-G0612

22 parts on this diagram · 1 diagram in section
