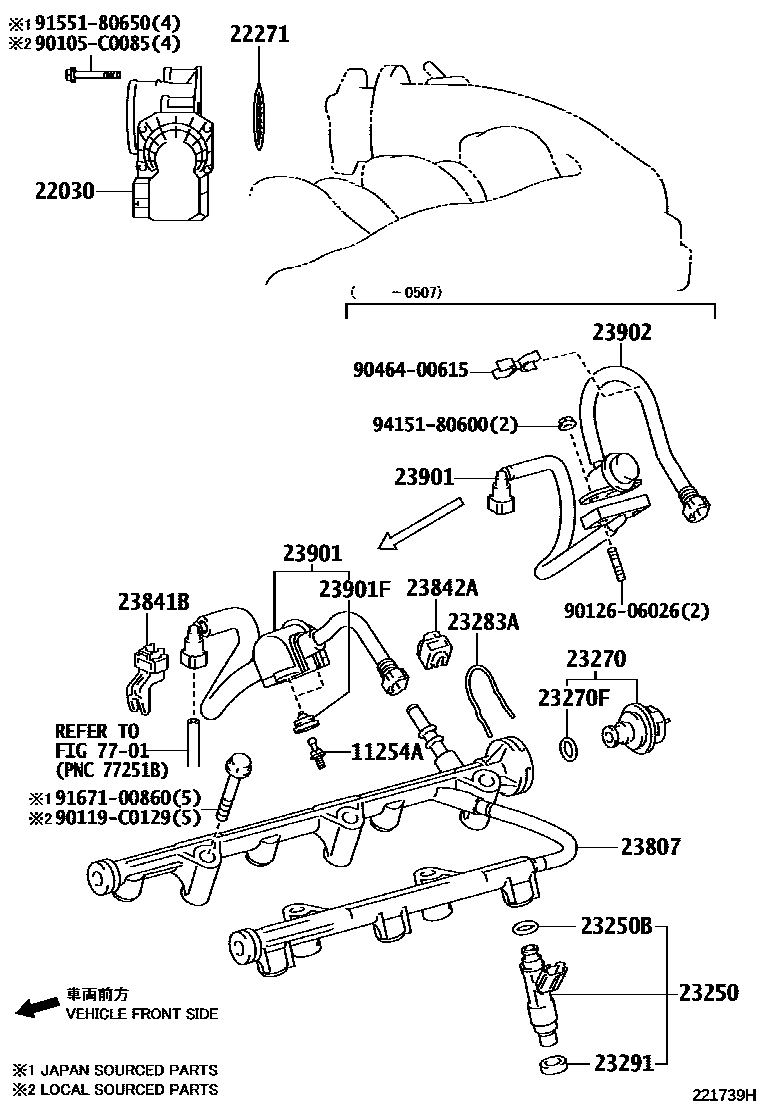

FUEL INJECTION SYSTEM

11254ABRACKET, V-BANK COVER

main11254-31020i3GRFE,5GRFE..GRS18#200507

22030BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR

main22030-0P020i3GRFE..GRS182200502-200509

main22030-0P040i3GRFE,5GRFE..GRS18#200509

22271GASKET, THROTTLE BODY

main22271-31030i3GRFE,5GRFE..GRS18#200502

23250INJECTOR ASSY, FUEL

main23209-0P020i3GRFE..GRS182200502-200507

main23209-0P050i3GRFE,5GRFE..GRS18#200507-200911

23250BRING, O(FOR FUEL INJECTOR)

main90301-07033i3GRFE,5GRFE..GRS18#200502

23270DAMPER ASSY, FUEL PRESSURE PULSATION

main23270-31010i3GRFE,5GRFE..GRS18#200502-200908

sub23270-31080

main23270-31080i3GRFE,5GRFE..GRS18#200908

sub23270-31140

23270FRING, O(FOR PULSATION DAMPER)

main90301-07033i3GRFE,5GRFE..GRS18#200502-200911

23283AHOLDER, FUEL PRESSURE REGULATOR

main23283-31010i3GRFE,5GRFE..GRS18#200502

23291INSULATOR, INJECTOR VIBRATION

main23291-0P020i3GRFE,5GRFE..GRS18#200804

(L)

main23291-23010i3GRFE,5GRFE..GRS18#200502-200804

main23291-23010i3GRFE,5GRFE..GRS18#200804

(J)

23807PIPE SUB-ASSY, FUEL DELIVERY

main23807-31030i3GRFE,5GRFE..GRS18#200502

23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)

main23841-21050i3GRFE,5GRFE..GRS18#200706

main23841-28010i3GRFE,5GRFE..GRS18#200502-200705

sub23841-21050

23842ACLAMP, FUEL PIPE, NO.2(FOR EFI)

main23842-31020i3GRFE,5GRFE..GRS18#200502

23901TUBE SUB-ASSY, FUEL

main23901-31100i3GRFE..GRS182200502-200507

sub23901-31130

sub11254-31020

main23901-31130i3GRFE,5GRFE..GRS18#200507-200603

sub23901-31131

main23901-31131i3GRFE,5GRFE..GRS18#200603

sub23901-31170

23901FGROMMET(FOR FUEL TUBE)

main90480-22024i3GRFE,5GRFE..GRS18#200507

23902TUBE SUB-ASSY, FUEL

main23902-31020i3GRFE..GRS182200502-200507

sub23901-31130

sub11254-31020

7701

90105C0085

main90105-C0085

90119C0129

main90119-C0129

9012606026

main90126-06026

9046400615

main90464-00615

9155180650

main91551-80650

9167100860

main91671-00860

9415180600

main94151-80600

23 parts on this diagram · 1 diagram in section
