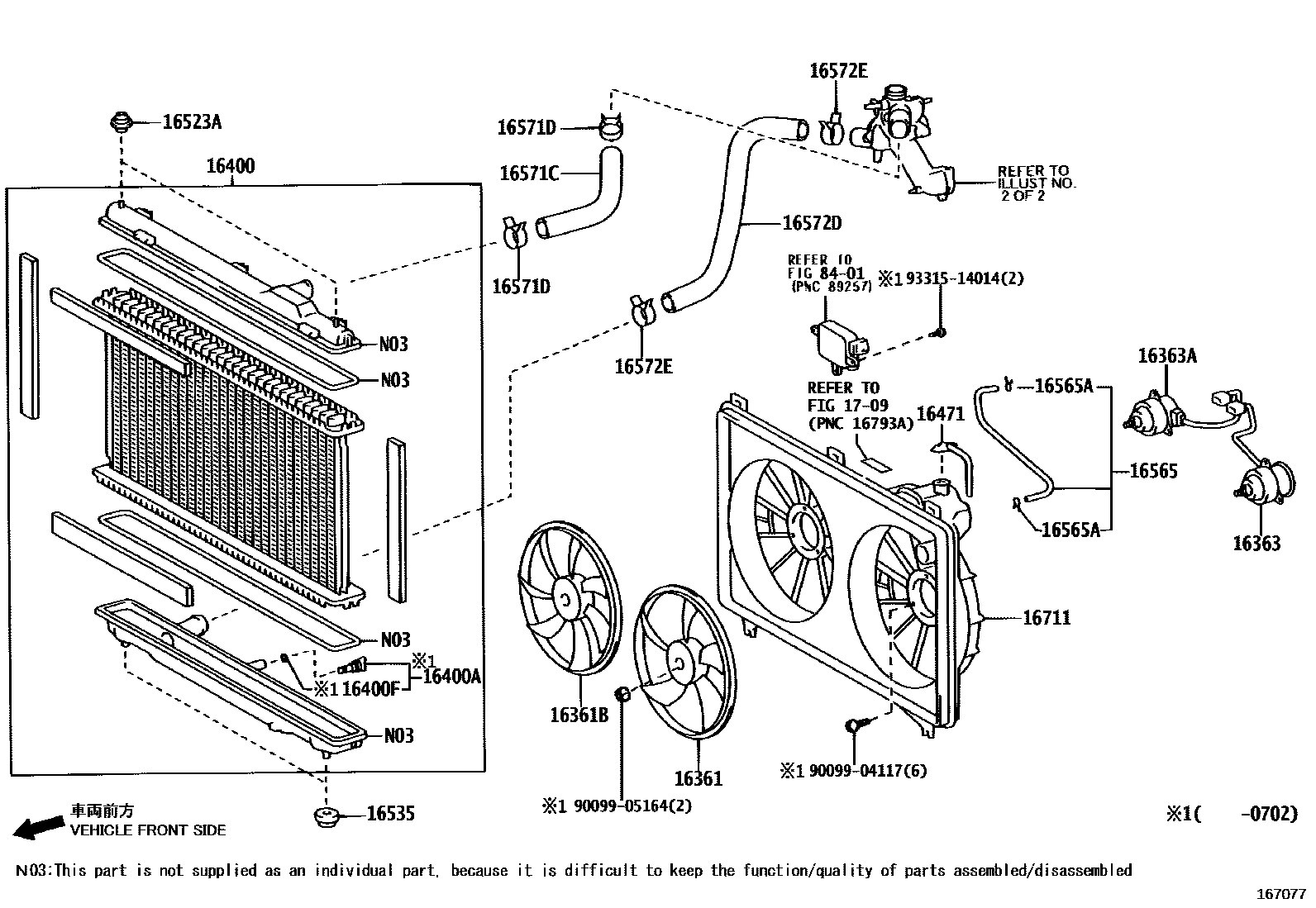

RADIATOR & WATER OUTLET

0001 1 0002 1 0003 1

16361FAN

main16361-0P020i3GRFE,5GRFE..GRS18#200502-200701

16361BFAN, NO.2

main16361-0P030i3GRFE,5GRFE..GRS18#200502-200701

16363MOTOR, COOLING FAN

main16363-0P010i3GRFE,5GRFE..GRS18#200502-200701

16363AMOTOR, COOLING FAN, NO.2

main16363-0P020i3GRFE,5GRFE..GRS18#200502-200701

16400RADIATOR ASSY

main16400-0P090i3GRFE,5GRFE..GRS18#200502-200701

sub16400-0P091

main16400-0P091i3GRFE,5GRFE..GRS18#200702

16400ACOCK SUB-ASSY, RADIATOR DRAIN

main16417-0H290i3GRFE,5GRFE..GRS18#200702

main16417-21280i3GRFE,5GRFE..GRS18#200502-200702

16400FPACKING(FOR RADIATOR DRAIN COCK)

main16492-21050i3GRFE,5GRFE..GRS18#200502

16471CAP SUB-ASSY, RESERVE TANK

main16405-0P010i3GRFE,5GRFE..GRS18#200502-200701

16523ACUSHION, RADIATOR SUPPORT

main16523-0P010i3GRFE,5GRFE..GRS18#200502

16535SUPPORT, RADIATOR, LOWER

main90480-T0007i3GRFE,5GRFE..GRS18#200502

16565HOSE, RESERVE TANK INLET

main16565-0P010i3GRFE,5GRFE..GRS18#200502-200701

16565ACLIP

main90467-11085i3GRFE,5GRFE..GRS18#200502

16571CHOSE, RADIATOR, NO.1

main16571-0P050i3GRFE,5GRFE..GRS18#200502-200512

sub16571-31140

main16571-31140i3GRFE,5GRFE..GRS18#200601

16571DCLIP, RADIATOR HOSE, NO.1

main90466-41007i3GRFE,5GRFE..GRS18#200502-200909

main96136-44801i3GRFE,5GRFE..GRS18#200910

16572DHOSE, RADIATOR, NO.2

main16572-0P050i3GRFE,5GRFE..GRS18#200502-200512

sub16572-31180

main16572-31180i3GRFE,5GRFE..GRS18#200601

sub16572-31380

16572ECLIP, RADIATOR HOSE, NO.2

main90466-41007i3GRFE,5GRFE..GRS18#200502-200909

main96136-44801i3GRFE,5GRFE..GRS18#200910

16711SHROUD, FAN

main16711-0P060i3GRFE,5GRFE..GRS18#200502-200701

1709

8401

9009904117

main90099-04117

9009905164

main90099-05164

9331514014

main93315-14014

22 parts on this diagram · 3 diagrams in section
