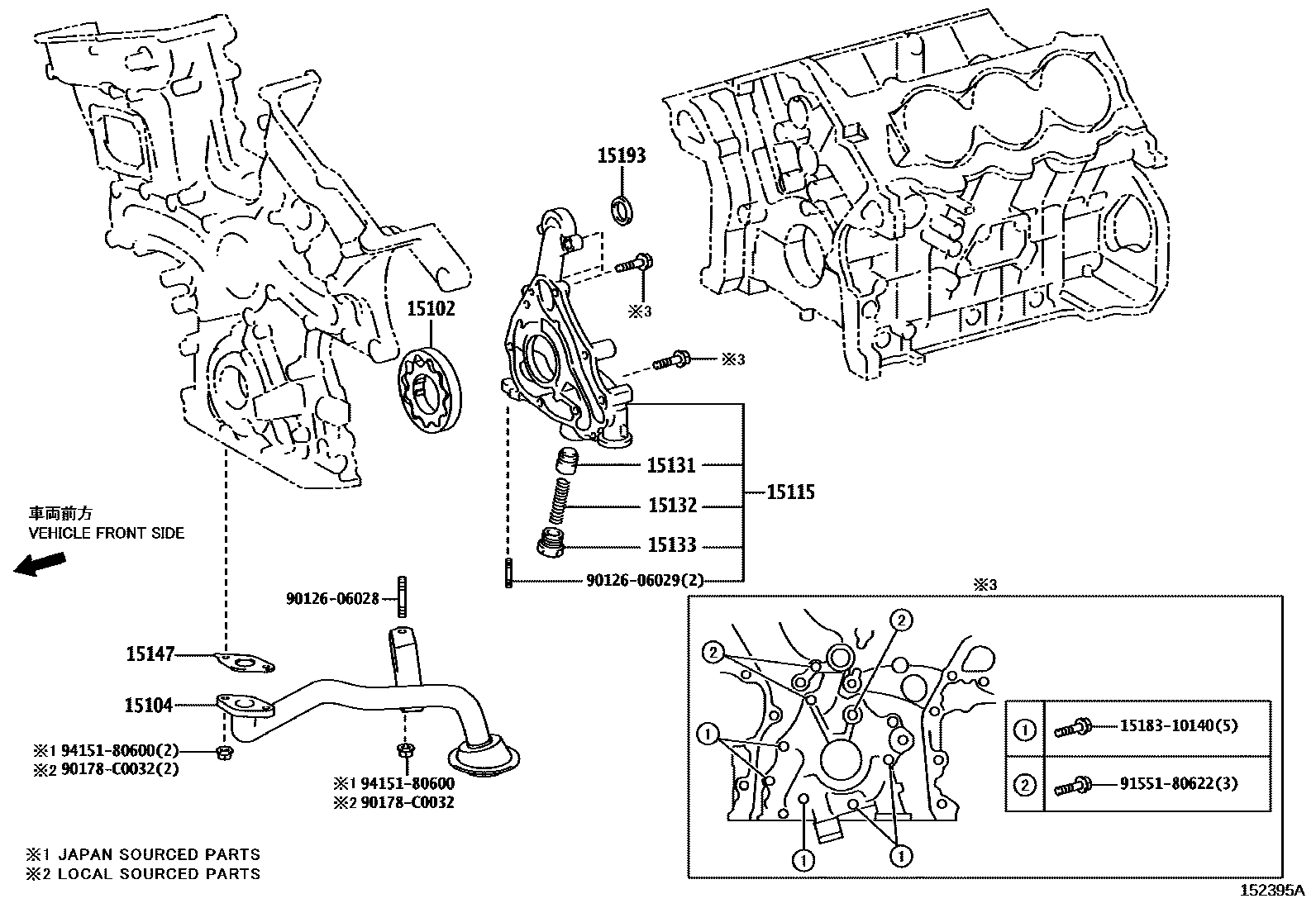

ENGINE OIL PUMP

15102ROTOR SET, OIL PUMP

main15103-0P020i3GRFE,5GRFE..GRS18#200509

main15103-31050i3GRFE..GRS182¥3,740200502-200509

15104STRAINER SUB-ASSY, OIL

main15104-31080i3GRFE,5GRFE..GRS18#¥6,900200502

15115COVER, OIL PUMP

main15115-0P020i3GRFE,5GRFE..GRS18#200509

main15115-31040i3GRFE..GRS182¥2,240200502-200509

15131VALVE, OIL PUMP RELIEF

main15131-17010i3GRFE,5GRFE..GRS18#¥360200502

15132SPRING, OIL PUMP RELIEF VALVE

main15132-46020i3GRFE,5GRFE..GRS18#¥210200502

15133PLUG, OIL PUMP RELIEF VALVE

main15133-28020i3GRFE,5GRFE..GRS18#¥260200502

15147GASKET, OIL STRAINER

main15147-0P010i3GRFE,5GRFE..GRS18#¥270200509

(L)

main15147-31060i3GRFE..GRS182¥270200502-200509

main15147-31060i3GRFE,5GRFE..GRS18#¥270200509

(J)

15193GASKET, OIL PUMP

main15193-0P020i3GRFE,5GRFE..GRS18#200703

(L)

main15193-31020i3GRFE,5GRFE..GRS18#¥220200502-200703

main15193-31020i3GRFE,5GRFE..GRS18#¥220200703

(J)

1518310140BOLT, UNION(FOR OIL PUMP)

main15183-10140¥210

9012606028

main90126-06028¥60

9012606029

main90126-06029¥60

90178C0032

main90178-C0032

9155180622

main91551-80622¥60

9415180600

main94151-80600¥60

14 parts on this diagram · 1 diagram in section
