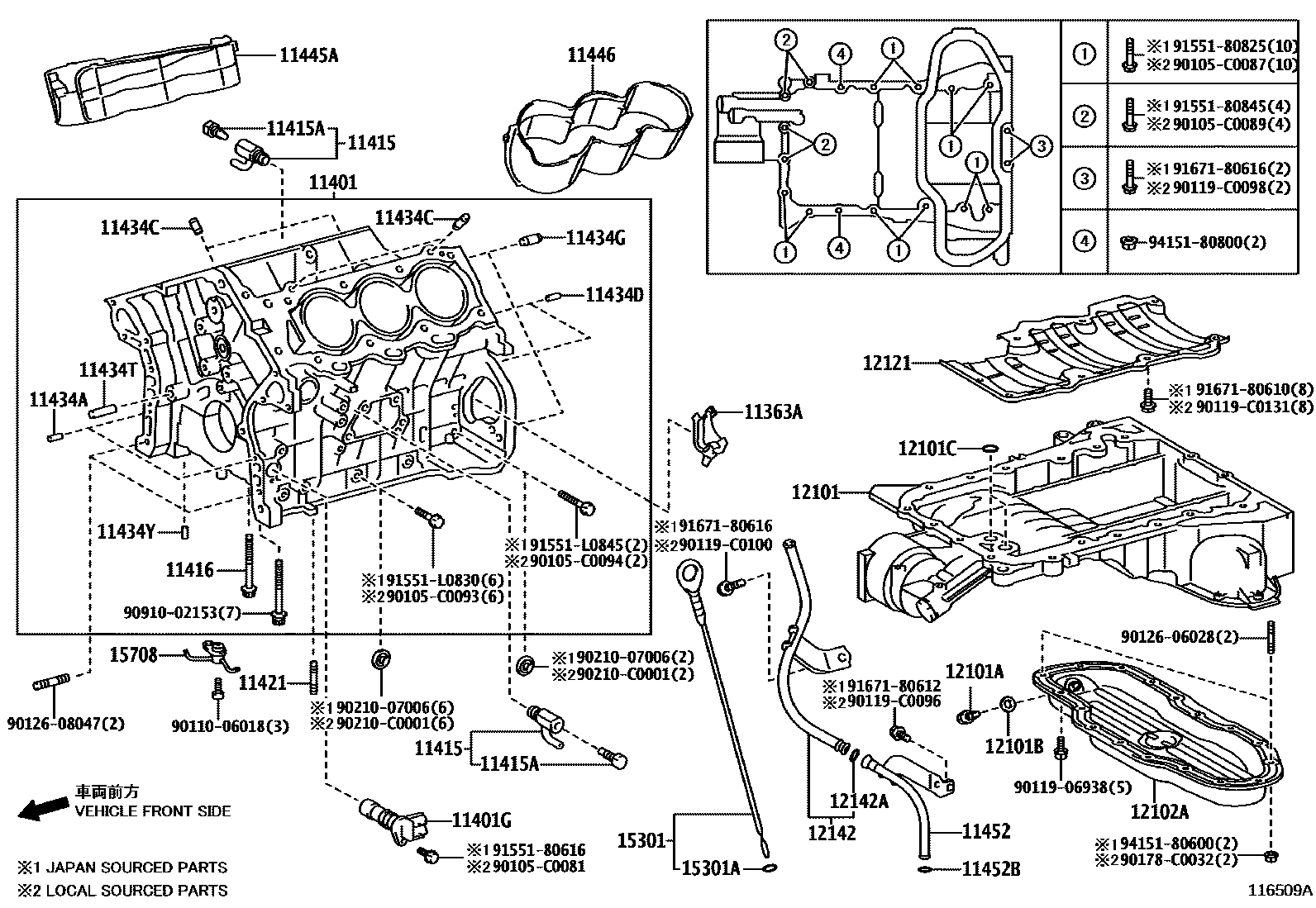

CYLINDER BLOCK

11363ACOVER, FLYWHEEL HOUSING SIDE

main11363-31010i3GRFE,5GRFE..GRS18#200502

sub11363-31030

11401BLOCK SUB-ASSY, CYLINDER

main11401-09540i3GRFE..GRS182200505

sub11401-09541

main11401-09570i5GRFE..GRS188200510

sub11401-09571

main11401-80755i3GRFE..GRS182200502-200505

sub11401-80816

11401GSENSOR, CRANK POSITION

main90919-05057i3GRFE,5GRFE..GRS18#200502-200911

11415COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK)

main90910-09129i3GRFE,5GRFE..GRS18#200502

11415APLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)

main90910-09087i3GRFE,5GRFE..GRS18#200502

11416BOLT(FOR CRANKSHAFT BEARING CAP SET)

main90910-02154i3GRFE,5GRFE..GRS18#200502

11421BOLT, STUD(FOR OIL PAN)

main90126-08051i3GRFE,5GRFE..GRS18#200502

11434APIN, STRAIGHT(FOR TIMING GEAR COVER SET)

main90250-04097i3GRFE,5GRFE..GRS18#200502

L=12,OD=4.0

11434CPIN, STRAIGHT (FOR CYLINDER HEAD SET)

main90250-08120i3GRFE,5GRFE..GRS18#200502

L=18,OD=8

11434DPIN, STRAIGHT(FOR ENGINE REAR OIL SEAL)

main90250-04097i3GRFE,5GRFE..GRS18#200502

L=12,OD=4.0

11434GPIN, STRAIGHT(FOR END PLATE)

main90250-10113i3GRFE,5GRFE..GRS18#200502

11434TPIN, RING(FOR TIMING BELT IDLER BRACKET SET)

main90250-10030i3GRFE,5GRFE..GRS18#200502

11434YPIN, STRAIGHT(FOR OIL PAN)

main90250-04097i3GRFE,5GRFE..GRS18#200502

11445ASPACER, CYLINDER BLOCK WATER JACKET, RH

main11445-0P010i3GRFE,5GRFE..GRS18#200509

(L)

main11445-31010i3GRFE,5GRFE..GRS18#200509

(J)

main11445-31010i3GRFE..GRS182200502-200509

11446SPACER, CYLINDER BLOCK WATER JACKET, LH

main11446-0P010i3GRFE,5GRFE..GRS18#200509

(L)

main11446-31010i3GRFE..GRS182200502-200509

main11446-31010i3GRFE,5GRFE..GRS18#200509

(J)

11452GUIDE, OIL LEVEL GAGE

main11452-31040i3GRFE,5GRFE..GRS18#200502-200911

11452BRING, O(FOR OIL LEVEL GAGE GUIDE)

main90301-12018i3GRFE,5GRFE..GRS18#200502-200911

12101PAN SUB-ASSY, OIL

main12101-0P010i3GRFE,5GRFE..GRS18#200509

(L)

main12101-31100i3GRFE..GRS182200502-200509

sub12101-31101

main12101-31101i3GRFE,5GRFE..GRS18#200509

(J)

12101APLUG(FOR OIL PAN DRAIN)

main90341-12012i3GRFE,5GRFE..GRS18#200502

12101BGASKET(FOR OIL PAN DRAIN PLUG)

main90430-12031i3GRFE,5GRFE..GRS18#200804

(J)

main90430-12031i3GRFE,5GRFE..GRS18#200502-200804

main90430-C0005i3GRFE,5GRFE..GRS18#200804

(L)

12101CRING, O(FOR OIL PAN)

main12151-0P020i3GRFE,5GRFE..GRS18#200703

(L)

main12151-31010i3GRFE,5GRFE..GRS18#200502-200703

main12151-31010i3GRFE,5GRFE..GRS18#200703

(J)

12102APAN SUB-ASSY, OIL, NO.2

main12102-0P010i3GRFE,5GRFE..GRS18#200509

(L)

main12102-31030i3GRFE..GRS182200502-200509

main12102-31030i3GRFE,5GRFE..GRS18#200509

(J)

12121PLATE, OIL PAN BAFFLE, NO.1

main12121-0P020i3GRFE,5GRFE..GRS18#200703

(L)

main12121-31060i3GRFE..GRS182200502-200510

main12121-31080i3GRFE,5GRFE..GRS18#200703

(J)

main12121-31080i3GRFE,5GRFE..GRS18#200510-200703

12142GUIDE, OIL LEVEL GAGE, NO.2

main12142-31010i3GRFE,5GRFE..GRS18#200502

12142ARING, O(FOR OIL LEVEL GAGE GUIDE, NO.2)

main96721-19010i3GRFE,5GRFE..GRS18#200502

15301GAGE SUB-ASSY, OIL LEVEL

main15301-31080i3GRFE,5GRFE..GRS18#200502

15301ARING, O(FOR OIL LEVEL GAGE)

main96741-19005i3GRFE,5GRFE..GRS18#200502

15708NOZZLE SUB-ASSY, OIL, NO.1

main15708-31010i3GRFE,5GRFE..GRS18#200502-200911

90105C0081

main90105-C0081

90105C0087

main90105-C0087

90105C0089

main90105-C0089

90105C0093

main90105-C0093

90105C0094

main90105-C0094

9011006018

main90110-06018

9011906938

main90119-06938

90119C0096

main90119-C0096

90119C0098

main90119-C0098

90119C0100

main90119-C0100

90119C0131

main90119-C0131

9012606028

main90126-06028

9012608047

main90126-08047

90178C0032

main90178-C0032

9021007006

main90210-07006

90210C0001

main90210-C0001

9091002153

main90910-02153

9155180616

main91551-80616

9155180825

main91551-80825

9155180845

main91551-80845

91551L0830

main91551-L0830

91551L0845

main91551-L0845

9167180610

main91671-80610

9167180612

main91671-80612

9167180616

main91671-80616

9415180600

main94151-80600

9415180800

main94151-80800

55 parts on this diagram · 1 diagram in section
