CLEARANCE & BACK SONAR

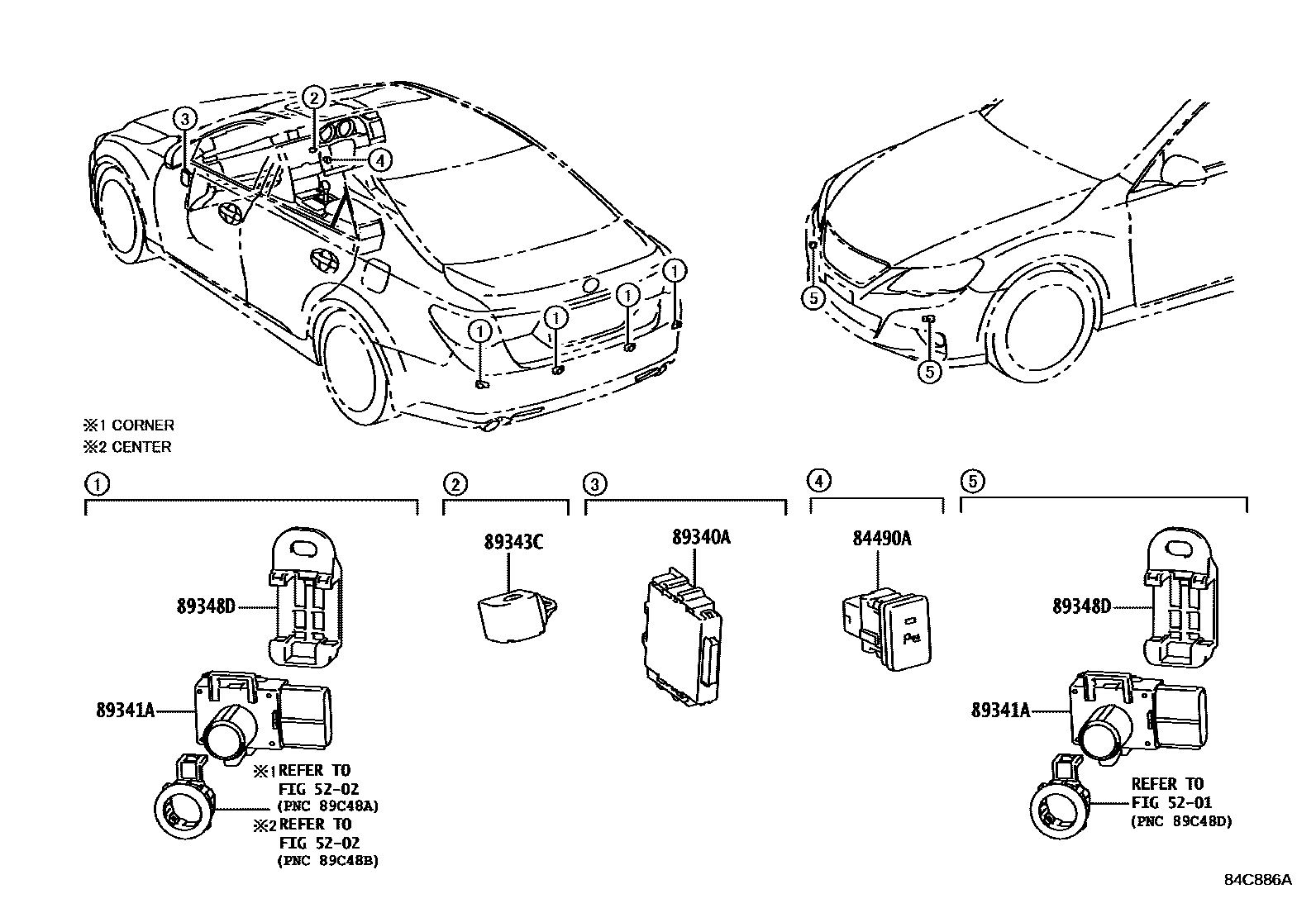

Parts diagram
5201
5202
84490ASWITCH ASSY, BACK SONAR OR CLEARANCE SONAR
main84490-22010i201112-201502
sub84490-22011
main84490-22011i201503-201611
89340ACOMPUTER ASSY, CLEARANCE WARNING
main89340-22090i201112-201208
main89340-22120i201208-201605
sub89340-22121
main89340-22121i201606
89341ASENSOR, ULTRASONIC, NO.1
main89341-33190-A5i201208-201611
WHITE PEARL CS.,062
sub89341-33210
sub89341-33190
main89341-33190-B0i201208-201611
SILVER ME.,1F7
sub89341-33210
sub89341-33190
main89341-33190-C2i201208-201611
BLACK,202
sub89341-33210
sub89341-33190
main89341-33190-D1i201208-201611
DK. RED M.M.,3Q3
sub89341-33210
sub89341-33190
main89341-33190-J6i201208-201611
DK.BLUE MC.,8T5
sub89341-33210
sub89341-33190
main89341-33190-P0i201208-201611
ICE TITANIUM M.M.,1H4
sub89341-33210
sub89341-33190
main89341-48010-A5i201112-201208
WHITE PEARL CS.,062
sub89341-60030
sub89341-48010
main89341-48010-B2i201112-201208
SILVER ME.,1F7
sub89341-60030
sub89341-48010
main89341-48010-B8i201112-201208
ICE TITANIUM M.M.,1H4
sub89341-60030
sub89341-48010
main89341-48010-C2i201112-201208
BLACK,202
sub89341-60030
sub89341-48010
main89341-48010-D4i201112-201208
GINGER RED M.M.,3R6
sub89341-60030
sub89341-48010
main89341-48010-E3i201112-201208
BRONZE M.M.,4T3
sub89341-60030
sub89341-48010
89343CBUZZER, CLEARANCE WARNING, NO.1
main89343-72010i201112-201208
89348DCLIP, ULTRASONIC SENSOR
main89348-33090i201112-201611

7 parts on this diagram · 1 diagram in section
