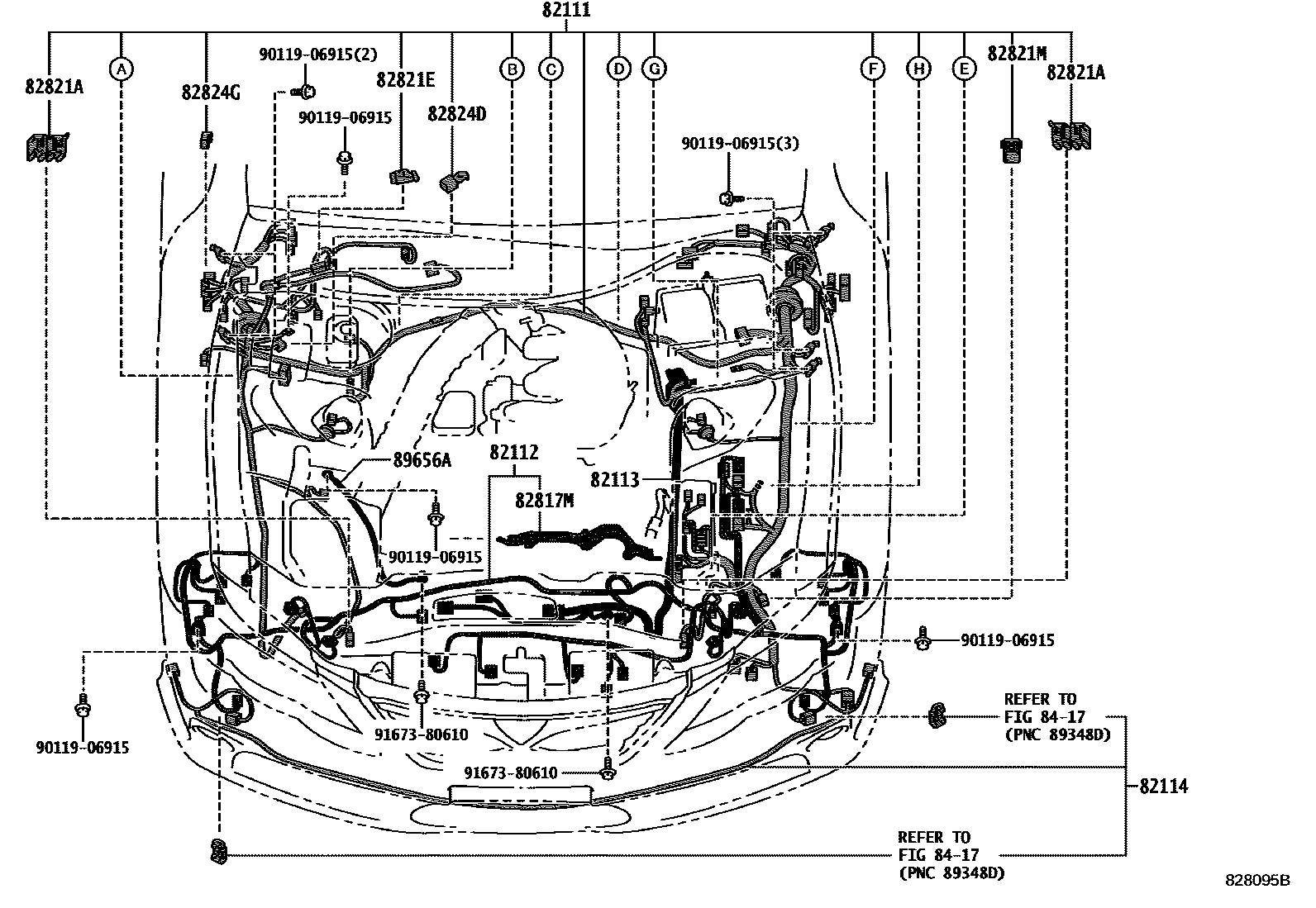

82111WIRE, ENGINE ROOM MAIN

main82111-22C80iGRX130201112-201208

main82111-22C81iGRX130201208-201309

sub82111-22C82

main82111-22C82iGRX130201310-201611

82112WIRE, ENGINE ROOM, NO.2

main82112-22170iGRX130201112-201208

main82112-22171iGRX130201208-201607

main82112-22172iGRX130201607

82113WIRE, ENGINE ROOM, NO.3

main82113-30450iGRX130201112-201208

82114WIRE, ENGINE ROOM, NO.4

main82114-22030iGRX130201112-201208

main82114-22031iGRX130201407-201611

main82114-22061iGRX130201208-201407

82817PROTECTOR, WIRING HARNESS, NO.1

main82817-30A20iGRX130201112-201208

82817MPROTECTOR, WIRING HARNESS, NO.12

main82817-22A70iGRX130201112-201208

82821ACOVER, CONNECTOR

main82821-30650iGRX130201112-201208

82821ECOVER, CONNECTOR

main82821-22120iGRX130201208

82821MCOVER, CONNECTOR

main82821-35040iGRX130201112-201208

82824CONNECTOR, WIRING HARNESS

main82824-30180iGRX130201112-201208

82824DCONNECTOR, WIRING HARNESS

main82824-48020iGRX130201112-201208

82824GCONNECTOR, WIRING HARNESS

main82824-50300iGRX130201112-201208

8417

89656AWIRE, POWER STEERING EARTH

main89656-30010iGRX130201112-201208

9011906915

main90119-06915

9167380610

main91673-80610
