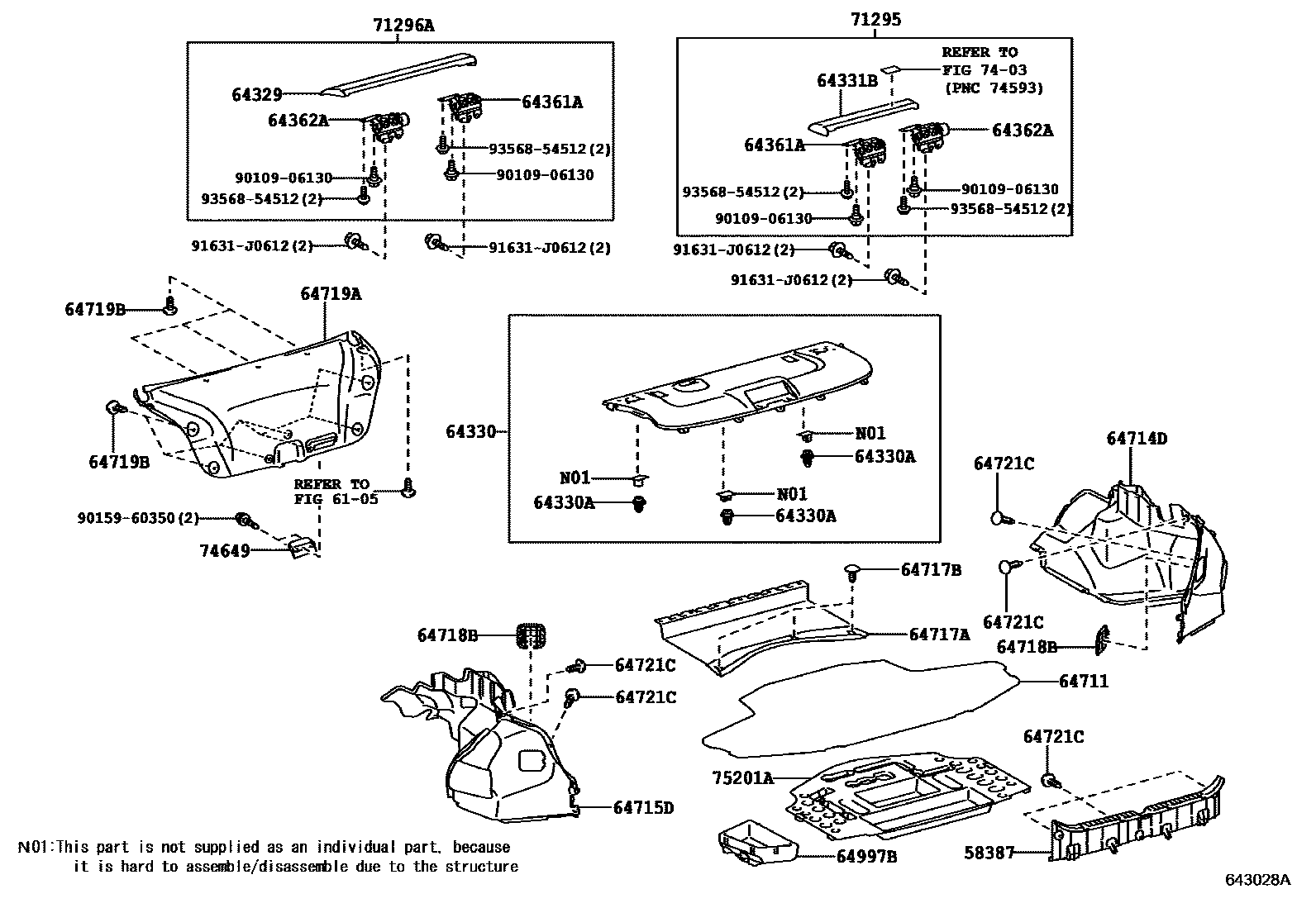

PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT
58387PLATE, REAR FLOOR FINISH
BLACK,TRIM2#
6105
64329BOARD, PACKAGE TRAY TRIM, REAR
64330PANEL ASSY, PACKAGE TRAY TRIM
BLACK,TRIM2#
64330ACLIP(FOR PACKAGE TRAY TRIM PANEL)
64331BBOARD, PACKAGE TRAY TRIM, FRONT
64361AHINGE, PACKAGE TRAY TRIM, NO.1
64362AHINGE, PACKAGE TRAY TRIM, NO.2
64711MAT, LUGGAGE COMPARTMENT FLOOR
BLACK,TRIM2#
64714DCOVER, LUGGAGE COMPARTMENT TRIM, SIDE, RH
BLACK,TRIM2#
64715DCOVER, LUGGAGE COMPARTMENT TRIM, SIDE, LH
BLACK,TRIM2#
64717ACOVER, LUGGAGE COMPARTMENT TRIM, FRONT
BLACK,TRIM2#
64717BCLIP(FOR LUGGAGE COMPARTMENT TRIM FRONT COVER)
64718BCOVER, LUGGAGE TRIM SERVICE HOLE
64719ACOVER, LUGGAGE COMPARTMENT DOOR
BLACK,TRIM2#
64719BCLIP(FOR LUGGAGE COMPARTMENT DOOR)
64721CCLIP(LUGGAGE COMPARTMENT)
64997BBOX, DECK FLOOR, LH
71295PLATE, REAR SEATBACK, UPPER RH
71296APLATE, REAR SEATBACK, UPPER LH
7403
74649GRIP, LUGGAGE COMPARTMENT DOOR ASSIST
75201ABOX, TOOL
BLACK,TRIM2#
9010906130
main90109-06130
9015960350
main90159-60350
91631J0612
main91631-J0612
9356854512
main93568-54512
27 parts on this diagram · 1 diagram in section
