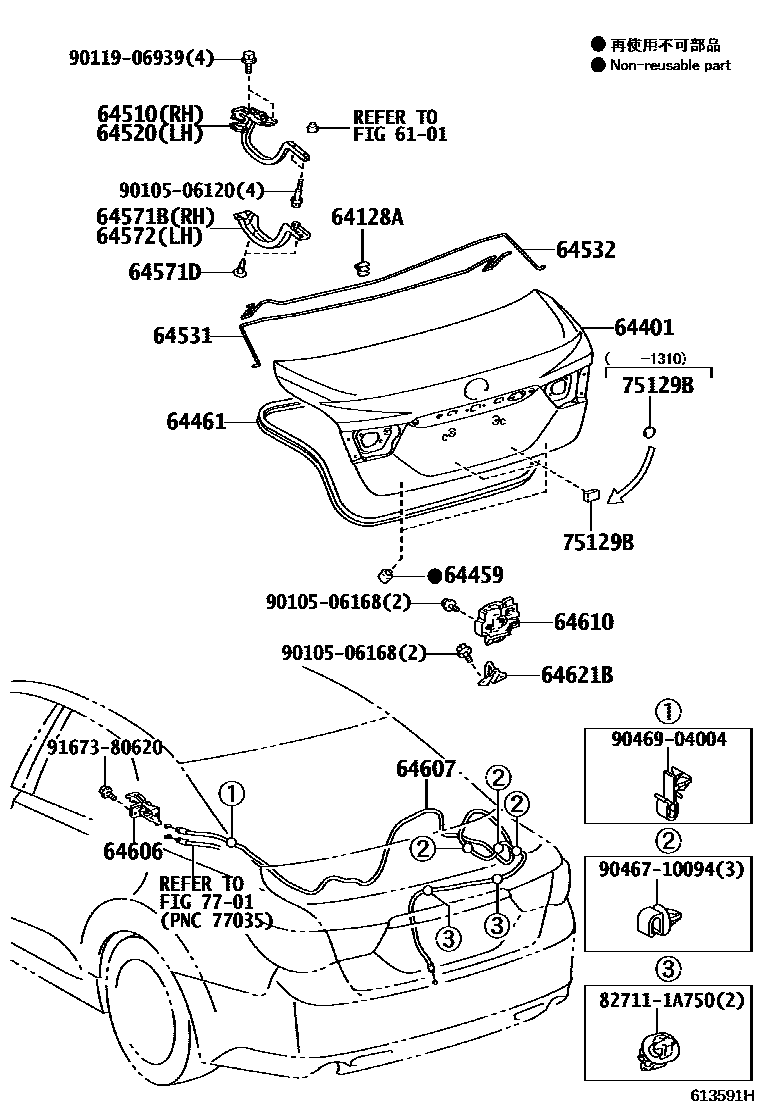

LUGGAGE COMPARTMENT DOOR & LOCK

6101

64128ASUPPORT, LUGGAGE COMPARTMENT DOOR TORSION BAR, NO.2

main64128-33010iGRX130201112-201611

64401PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR

main64401-22880iGRX130201112-201611

main64401-22A00iGRX130201112-201408

S PACKAGE

64459CUSHION, LUGGAGE COMPARTMENT DOOR

main90541-09116iGRX130201112-201208

64461WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR

main64461-22330iGRX130201112-201208

64510HINGE ASSY, LUGGAGE COMPARTMENT DOOR, RH

main64510-22320iGRX130201112-201208

64520HINGE ASSY, LUGGAGE COMPARTMENT DOOR, LH

main64520-22180iGRX130201112-201208

64531BAR, LUGGAGE DOOR HINGE TORSION, RH

main64531-22400iGRX130201112-201208

main64531-22410iGRX130201112-201408

S PACKAGE

main64531-22450iGRX130201208

64532BAR, LUGGAGE DOOR HINGE TORSION, LH

main64532-22400iGRX130201112-201208

main64532-22410iGRX130201112-201408

S PACKAGE

main64532-22450iGRX130201208

64571BCOVER, LUGGAGE COMPARTMENT DOOR HINGE, RH

main64571-22040iGRX130201112-201611

64571DCLIP(FOR LUGGAGE COMPARTMENT DOOR HINGE COVER)

main90467-07076-C0iGRX130201112-201611

BLACK,TRIM2#

sub90467-07041

sub90467-07076

sub90467-A0016

64572COVER, LUGGAGE COMPARTMENT DOOR HINGE, LH

main64572-22020iGRX130201112-201611

64606LEVER SUB-ASSY, LUGGAGE DOOR LOCK OPEN

main64606-53010iGRX130201112-201611

64607CABLE SUB-ASSY, LUGGAGE DOOR LOCK CONTROL

main64607-22440iGRX130201112-201208

64610LOCK ASSY, LUGGAGE COMPARTMENT DOOR

main64600-20030iGRX130201312

main64600-52010iGRX130201112-201311

sub64600-20030

64621BSTRIKER, LUGGAGE COMPARTMENT DOOR LOCK

main64620-22080iGRX130201112-201208

75129BCUSHION, REAR LICENCE PLATE

main75129-26010iGRX130201112-201310

main75129-30010iGRX130201311

7701

827111A750WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1A750

9010506120

main90105-06120

9010506168

main90105-06168

9011906939

main90119-06939

9046710094

main90467-10094

9046904004

main90469-04004

9167380620

main91673-80620

25 parts on this diagram · 1 diagram in section
