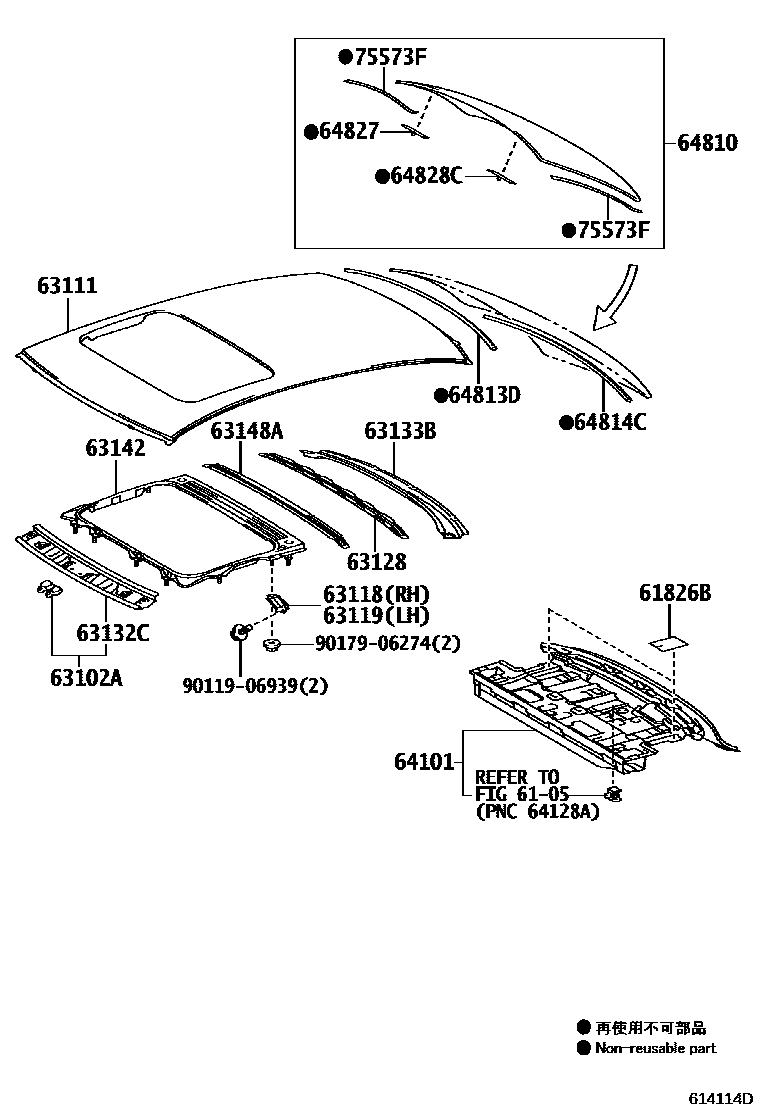

ROOF PANEL & BACK WINDOW GLASS

0001 1ROOF PANEL 0002 1MOON ROOF

6105

61826BPLATE, NOISE CONTROL, NO.3

main61826-22060iGRX130201112-201611

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-22903iGRX130201112-201208

63111PANEL, ROOF

main63111-22430iGRX130201112-201208

63118SUPPORT, ROOF PANEL, RH

main63118-22130iGRX130201112-201208

63119SUPPORT, ROOF PANEL, LH

main63118-22130iGRX130201112-201208

63128REINFORCEMENT, ROOF PANEL, NO.6

main63128-22020iGRX130201112-201208

63132CPANEL, WINDSHIELD HEADER, INNER

main63132-22210iGRX130201112-201208

63133BFRAME, BACK WINDOW

main63133-22210iGRX130201112-201208

63142REINFORCEMENT, ROOF PANEL, NO.2

main63142-22900iGRX130201112-201408

sub63142-22901

main63142-22901iGRX130201408

63148AREINFORCEMENT, ROOF PANEL, NO.7

main63148-22090iGRX130201112-201208

64101PANEL SUB-ASSY, UPPER BACK

main64101-22610iGRX130201112-201408

sub64101-22611

main64101-22611iGRX130201408

64810WINDOW ASSY, BACK

main64801-22140iGRX130201112-201208

64813DDAM, BACK WINDOW GLASS ADHESIVE

main56117-50140iGRX130201112-201208

64814CDAM, BACK WINDOW GLASS ADHESIVE, LOWER

main56117-50140iGRX130201112-201208

64827CLIP, BACK WINDOW GLASS, RH

main64827-22010iGRX130201112-201208

64828CCLIP, BACK WINDOW GLASS, LH

main64828-22010iGRX130201112-201208

75573FMOULDING, BACK WINDOW, OUTSIDE

main75573-22150iGRX130201112-201208

RH

main75574-22100iGRX130201112-201208

LH

9011906939

main90119-06939

9017906274

main90179-06274

20 parts on this diagram · 2 diagrams in section
