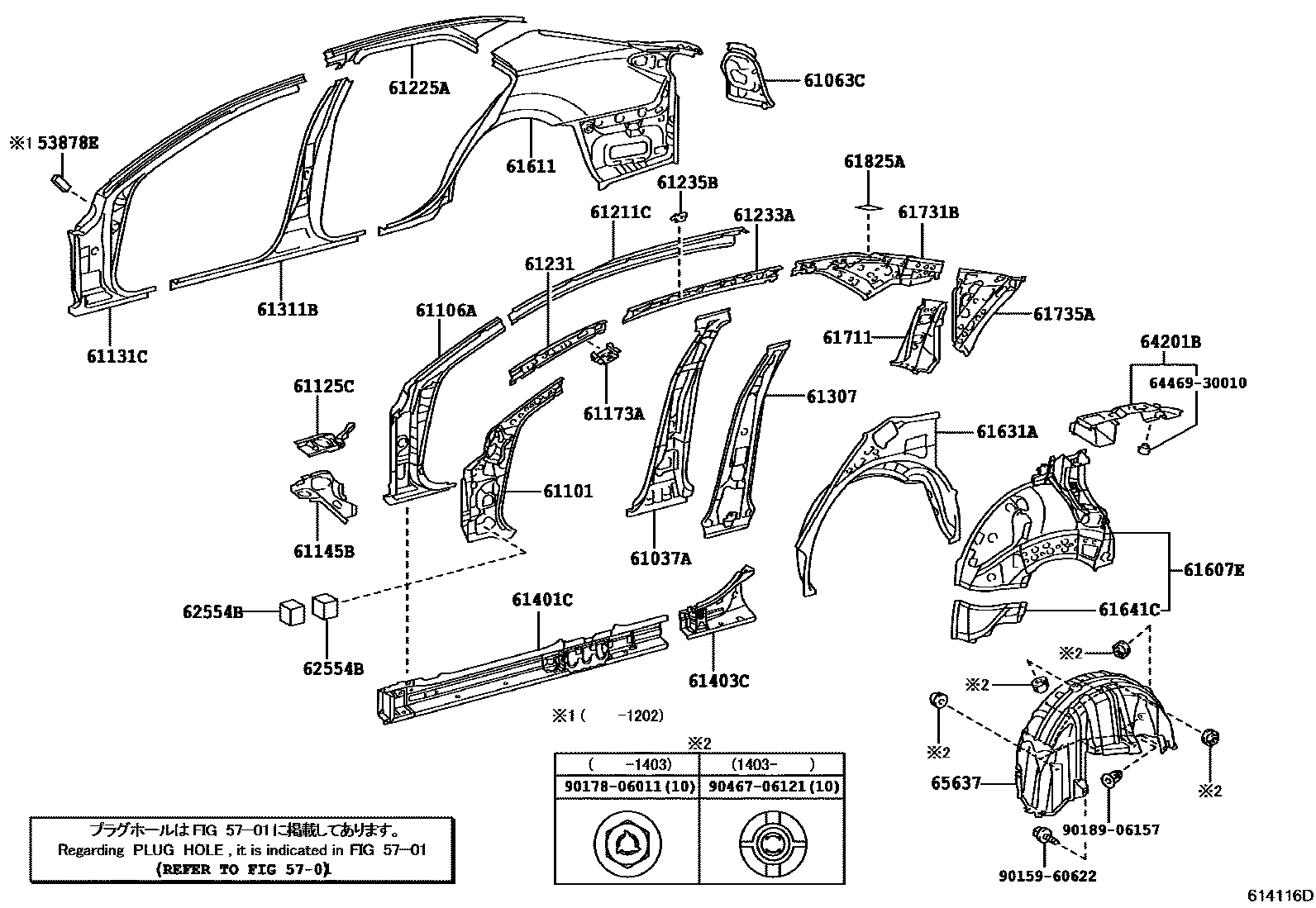

SIDE MEMBER
53878ESPACER, FRONT FENDER
5701
61037AREINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, RH
61063CTROUGH SUB-ASSY, LUGGAGE DOOR OPENING, FRONT RH
61101PANEL SUB-ASSY, COWL SIDE, RH
61106AREINFORCE SUB-ASSY, FRONT BODY PILLAR, UPPER RH
61125CREINFORCEMENT, COWL SIDE PANEL, RH
61131CPILLAR, FRONT BODY, OUTER RH
61145BGUSSET, FRONT BODY PILLAR, LOWER RH
61173AREINFORCEMENT, FRONT BODY PILLAR, UPPER INNER RH
61211CRAIL, ROOF SIDE, RH
61231RAIL, ROOF SIDE, INNER RH
61233ARAIL, ROOF SIDE, INNER NO.2 RH
61235BBRACKET, ASSIST GRIP
61307PILLAR SUB-ASSY, CENTER BODY, INNER RH
61311BPILLAR, CENTER BODY, OUTER RH
61401CPANEL SUB-ASSY, ROCKER, OUTER RH
61403CREINFORCE SUB-ASSY, ROCKER, OUTER RH
61607EPANEL, QUARTER WHEEL HOUSE, INNER RH
61631APANEL, QUARTER WHEEL HOUSE, OUTER RH
61641CGUSSET, QUARTER WHEEL HOUSE, FRONT RH
61711PANEL, ROOF SIDE, OUTER RH
61731BPANEL, ROOF SIDE, INNER RH
61735APANEL, ROOF SIDE, INNER REAR RH
61825APLATE, NOISE CONTROL, NO.2
62554BPAD, PILLAR, NO.4
65637LINER, REAR WHEEL HOUSE, RH
6446930010CUSHION, LUGGAGE COMPARTMENT DOOR, NO.2
main64469-30010
9015960622
main90159-60622
9017806011
main90178-06011
9018906157
main90189-06157
9046706121
main90467-06121
35 parts on this diagram · 2 diagrams in section
