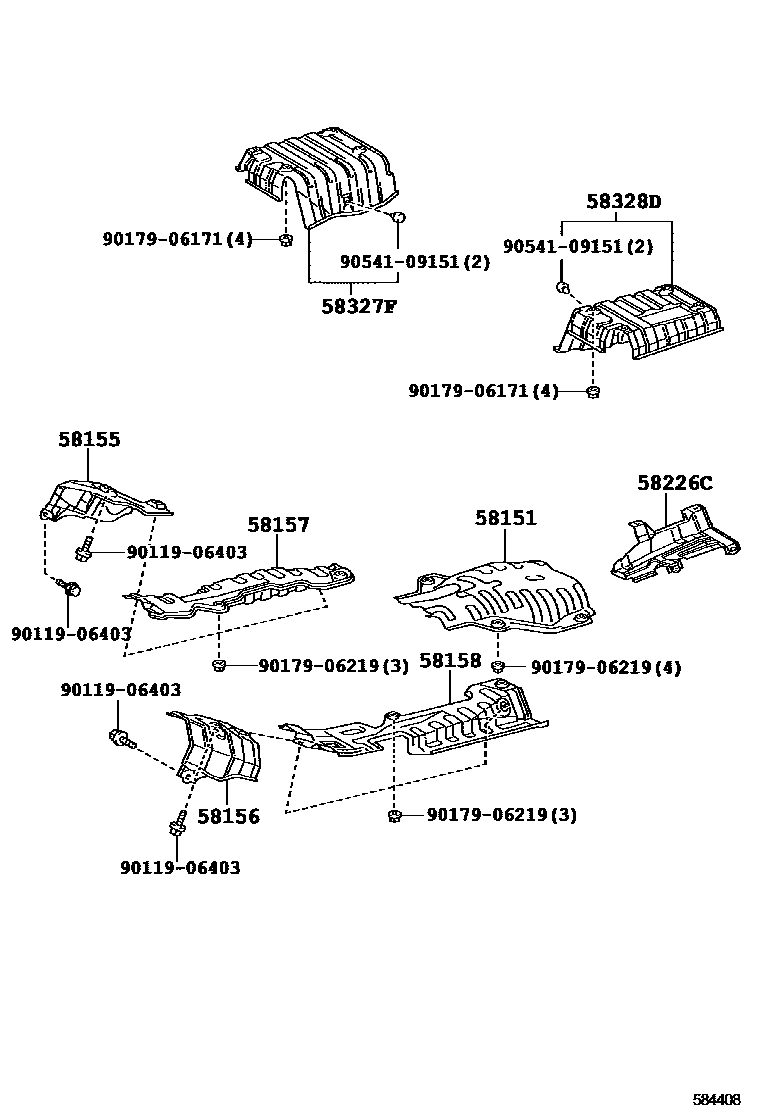

FLOOR INSULATOR

58151INSULATOR, FRONT FLOOR HEAT, NO.1

main58151-30130iGRX130201112-201208

58155INSULATOR, FRONT FLOOR HEAT, NO.3

main58155-30040iGRX130201112-201208

58156INSULATOR, FRONT FLOOR HEAT, NO.4

main58156-30080iGRX130201112-201208

58157INSULATOR, FRONT FLOOR HEAT, NO.5

main58157-30073iGRX130201112-201208

58158INSULATOR, FRONT FLOOR HEAT, NO.6

main58158-30062iGRX130201112-201201

sub58158-30063

main58158-30063iGRX130201202-201208

58226CPLATE, AIR GUIDE, OUTSIDE RH

main58226-30040iGRX130201112-201208

58327FINSULATOR, MAIN MUFFLER HEAT, RH

main58327-30053iGRX130201112-201208

58328DINSULATOR, MAIN MUFFLER HEAT, LH

main58328-30034iGRX130201112-201208

9011906403

main90119-06403

9017906171

main90179-06171

9017906219

main90179-06219

9054109151

main90541-09151

12 parts on this diagram · 1 diagram in section
