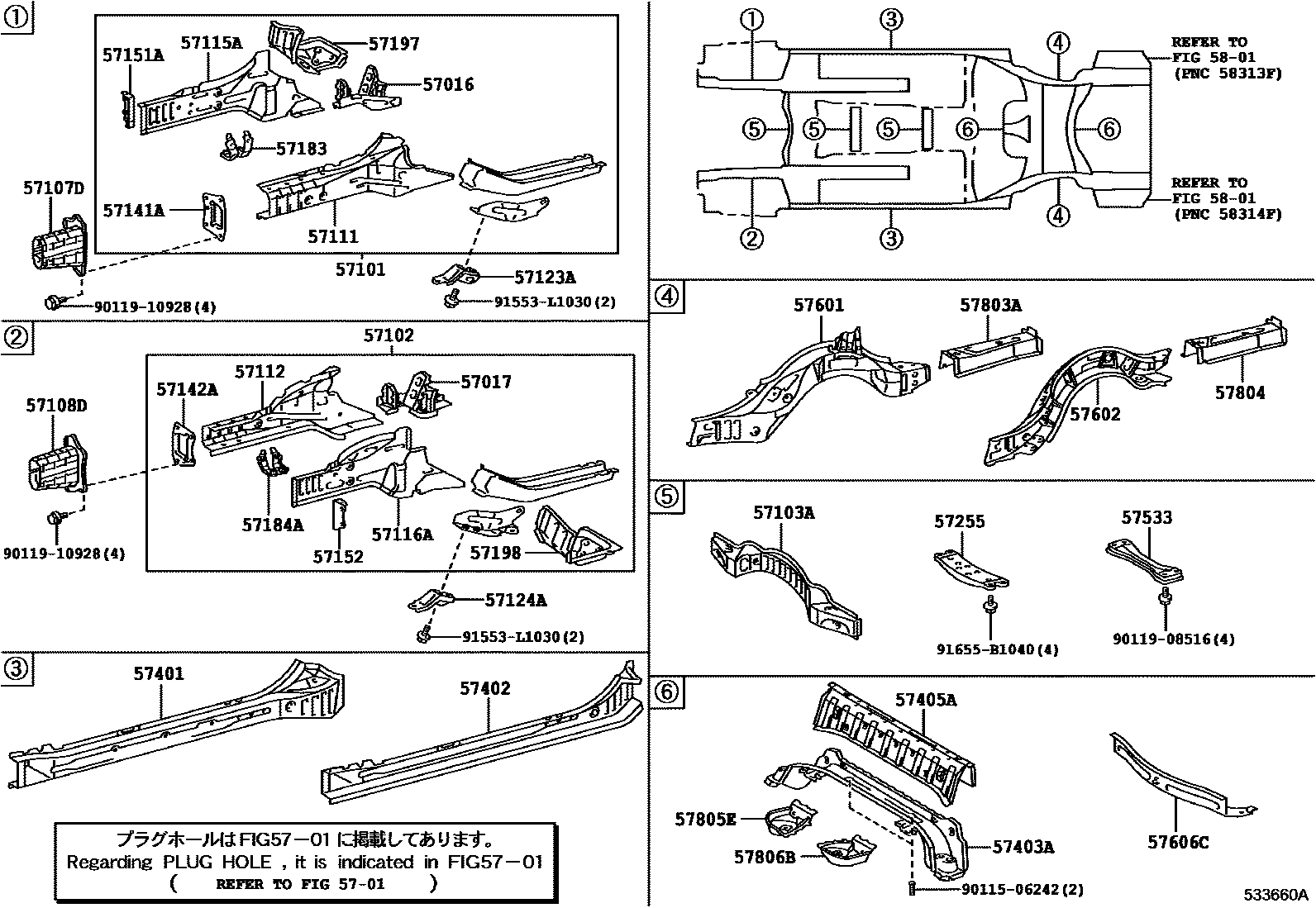

FLOOR SIDE MEMBER

5701

57016REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, RH

main57016-30040iGRX130201112-201208

57017REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, LH

main57017-30040iGRX130201112-201208

57101MEMBER SUB-ASSY, FRONT SIDE, RH

main57101-30163iGRX130201112-201409

main57101-30240iGRX130201409

57102MEMBER SUB-ASSY, FRONT SIDE, LH

main57102-30143iGRX130201112-201409

main57102-30220iGRX130201409

57103ACROSSMENBER SUB-ASSY, FLOOR, NO.3

main57103-30021iGRX130201112-201205

sub57103-30022

main57103-30022iGRX130201206-201208

57107DREINFORCE SUB-ASSY, FRONT BUMPER MOUNTING, RH

main57107-53010iGRX130201112-201611

57108DREINFORCE SUB-ASSY, FRONT BUMPER MOUNTING, LH

main57108-53011iGRX130201112-201304

sub57108-53012

main57108-53012iGRX130201305

57111MEMBER, FRONT SIDE, RH

main57111-30082iGRX130201112-201208

57112MEMBER, FRONT SIDE, LH

main57112-30082iGRX130201112-201208

57115APLATE, FRONT SIDE MEMBER, OUTER RH

main57115-30060iGRX130201112-201208

57116APLATE, FRONT SIDE MEMBER, OUTER LH

main57116-30030iGRX130201112-201208

57123AREINFORCEMENT, STRUT BAR BRACKET, RH

main57305-30010iGRX130201112-201611

57124AREINFORCEMENT, STRUT BAR BRACKET, LH

main57306-30010iGRX130201112-201611

57141ASUPPORT, FRONT BUMPER ARM, RH

main57141-30040iGRX130201112-201208

57142ASUPPORT, FRONT BUMPER ARM, LH

main57142-30040iGRX130201112-201208

57151AREINFORCEMENT, FRONT SIDE MEMBER, NO.1 RH

main57151-30040iGRX130201112-201208

57152REINFORCEMENT, FRONT SIDE MEMBER, NO.1 LH

main57152-30040iGRX130201112-201208

57183PLATE, FRONT SIDE MEMBER, NO.4 RH

main57183-30030iGRX130201112-201208

57184APLATE, FRONT SIDE MEMBER, NO.4 LH

main57184-30020iGRX130201112-201208

57197BOX, TORQUE, FRONT RH

main57197-30040iGRX130201112-201409

main57197-30050iGRX130201409

57198BOX, TORQUE, FRONT LH

main57198-30041iGRX130201112-201409

main57198-30050iGRX130201409

57255MEMBER, ENGINE REAR MOUNTING

main57255-30130iGRX130201112-201208

57401MEMBER SUB-ASSY, MAIN FLOOR SIDE, RH

main57401-22220iGRX130201112-201208

57402MEMBER SUB-ASSY, MAIN FLOOR SIDE, LH

main57402-22220iGRX130201112-201208

57403AMEMBER SUB-ASSY, CENTER FLOOR CROSS, NO.3

main57430-30011iGRX130201112-201211

main57430-30012iGRX130201211

57405AMEMBER SUB-ASSY, CENTER FLOOR CROSS, NO.2

main57405-22061iGRX130201112-201208

57533BRACE, FRONT FLOOR, CENTER

main57533-30050iGRX130201112-201208

57601MEMBER SUB-ASSY, REAR FLOOR SIDE, RH

main57601-22922iGRX130201112-201211

main57601-22923iGRX130201211

57602MEMBER SUB-ASSY, REAR FLOOR SIDE, LH

main57602-22918iGRX130201112-201211

main57602-22919iGRX130201211

57606CMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2

main57606-30060iGRX130201112-201611

57803AREINFORCEMENT SUB-ASSY, REAR FLOOR SIDE MEMBER, REAR RH

main57803-30040iGRX130201112-201208

57804REINFORCEMENT SUB-ASSY, REAR FLOOR SIDE MEMBER, REAR LH

main57804-30050iGRX130201112-201208

57805EREINFORCEMENT SUB-ASSY, BELT ANCHOR, RH

main57805-30060iGRX130201112-201208

57806BREINFORCEMENT SUB-ASSY, BELT ANCHOR, LH

main57806-30050iGRX130201112-201208

5801

9011506242

main90115-06242

9011908516

main90119-08516

9011910928

main90119-10928

91553L1030

main91553-L1030

91655B1040

main91655-B1040

41 parts on this diagram · 1 diagram in section
