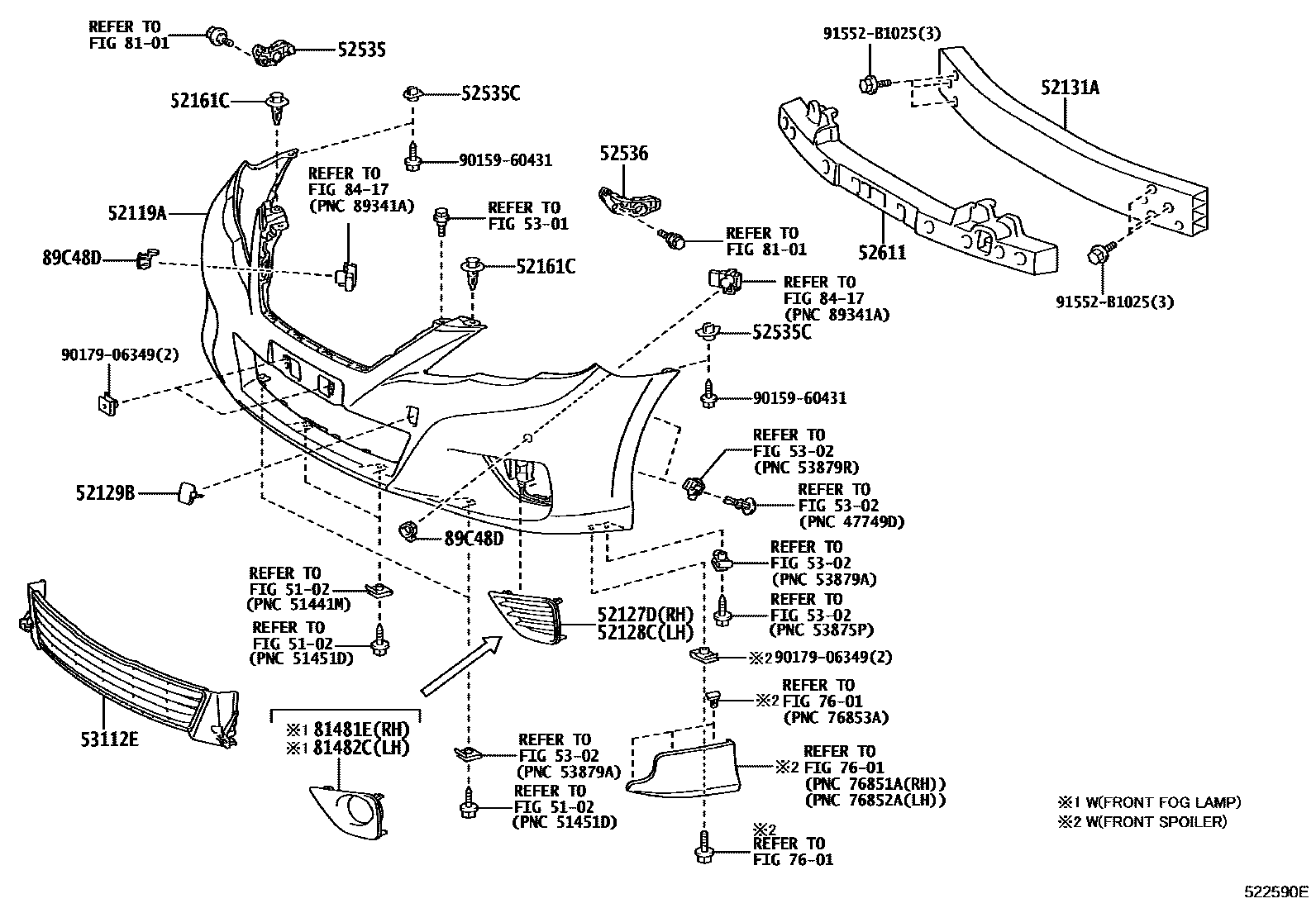

FRONT BUMPER & BUMPER STAY
5102
52119ACOVER, FRONT BUMPER
PAINT REQ.
PAINT REQ.
52129BCOVER, FRONT BUMPER, LOWER
52131AREINFORCEMENT, FRONT BUMPER
sub52131-22211
52161CPIECE, FRONT BUMPER
sub52161-0K040
52535RETAINER, FRONT BUMPER SIDE, RH
52535CRETAINER, FRONT BUMPER SIDE
52536RETAINER, FRONT BUMPER SIDE, LH
52611ABSORBER, FRONT BUMPER ENERGY
5301
5302
53112EGRILLE, RADIATOR, LOWER NO.1
NO PAINT REQ.
NO PAINT REQ.
7601
8101
81481ECOVER, FOG LAMP, RH
81482CCOVER, FOG LAMP, LH
8417
89C48DRETAINER, ULTRASONIC SENSOR, FRONT CORNER
9015960431
main90159-60431
9017906349
main90179-06349
91552B1025
main91552-B1025
23 parts on this diagram · 2 diagrams in section
