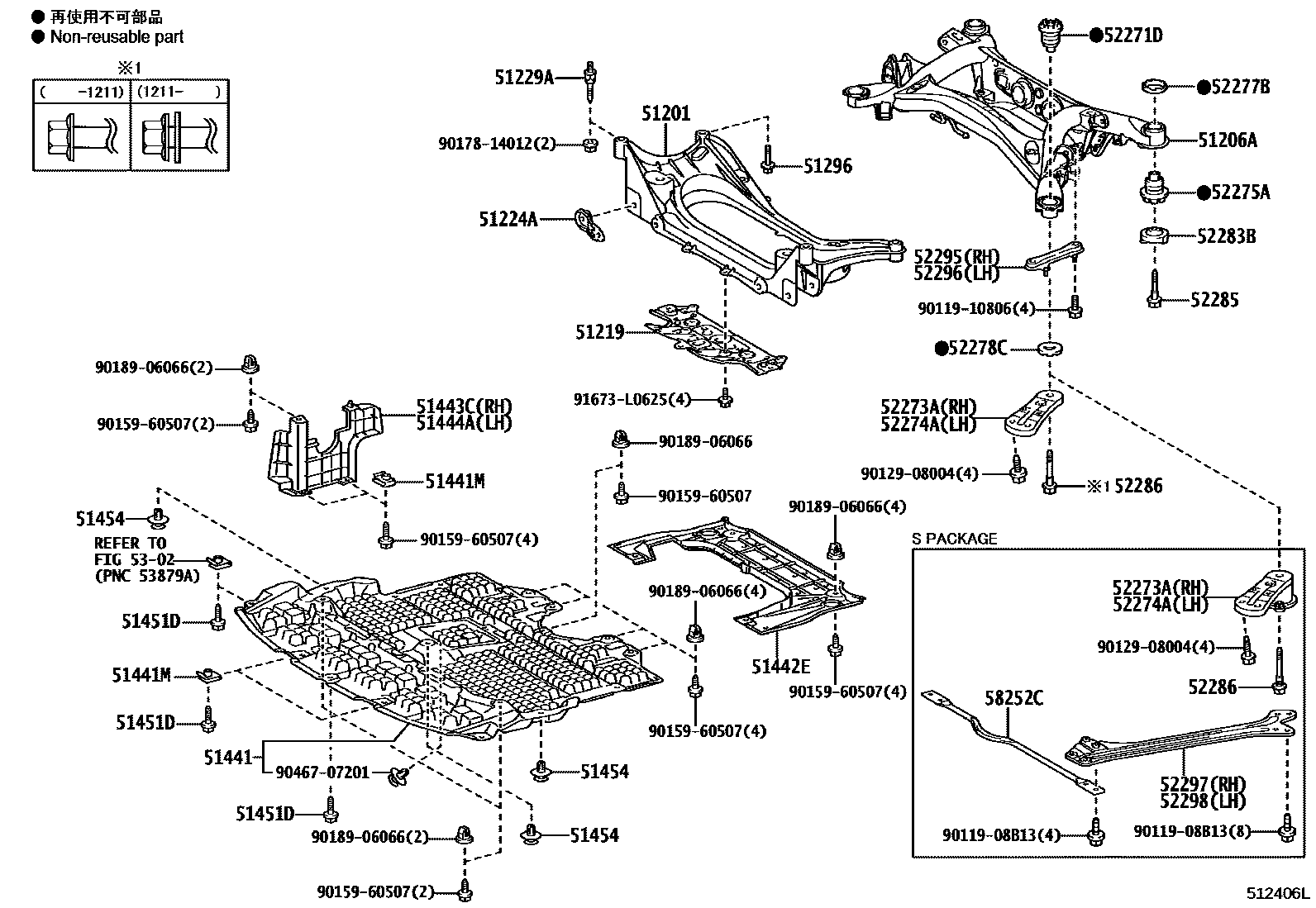

SUSPENSION CROSSMEMBER & UNDER COVER

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-30140iGRX130¥41,700201112-201611

51206AMEMBER SUB-ASSY, REAR SUSPENSION

main51206-30081iGRX130¥85,600201112-201506

sub51206-30082¥71,300

main51206-30082iGRX130¥71,300201507

51219PROTECTOR, FRONT SUSPENSION MEMBER, LWR

main51219-30031iGRX130¥4,630201112-201208

51224APLATE, FRONT SUSPENSION MENBER BRACE

main51224-30030iGRX130¥1,760201112-201208

51229ABOLT, FRONT SUSPENSION MEMBER MOUNTING

main90951-01006iGRX130¥310201112-201208

51296BOLT, FRONT SUSPENSION MEMBER MOUNTING

main90119-16021iGRX130¥540201112-201611

51441COVER, ENGINE UNDER, NO.1

main51441-22371iGRX130¥15,800201112-201208

51441MNUT

main90179-05060iGRX130¥70201112-201611

51442ECOVER, ENGINE UNDER, NO.2

main51442-30181iGRX130¥4,880201112-201208

51443CCOVER, ENGINE UNDER, REAR RH

main51443-30141iGRX130¥1,570201112-201208

51444ACOVER, ENGINE UNDER, REAR LH

main51444-30171iGRX130¥1,570201112-201208

51451DSCREW, NO.1

main90159-60477iGRX130¥70201112-201611

51454CLIP

main90467-07214iGRX130¥70201112-201611

52271DCUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT

main52271-30120iGRX130¥2,790201112-201208

52273ASTOPPER, REAR SUSPENSION MEMBER, LOWER RH

main52273-30080iGRX130¥1,520201112-201208

52274ASTOPPER, REAR SUSPENSION MEMBER, LOWER LH

main52273-30080iGRX130¥1,520201112-201208

52275ACUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, REAR

main52275-30130iGRX130¥4,230201112-201208

52277BSTOPPER, REAR SUSPENSION MEMBER, REAR UPPER

main52277-30070iGRX130¥840201112-201208

52278CSTOPPER, REAR SUSPENSION MEMBER, REAR LOWER

main52278-30080iGRX130¥570201112-201208

52283BSTOPPER, DIFFERENTIAL SUPPORT MEMBER, LOWER

main52283-30060iGRX130¥1,190201112-201208

52285BOLT, DIFFERENTIAL SUPPORT MEMBER MOUNTING, NO.1

main52285-30021iGRX130¥1,360201112-201209

main90119-14154iGRX130¥360201210

52286BOLT, DIFFERENTIAL SUPPORT MEMBER MOUNTING, NO.2

main52286-53020iGRX130¥2,680201112-201211

main90119-14148iGRX130¥490201211

52295BRACE, REAR SUSPENSION MEMBER, RH

main52295-30030iGRX130¥2,040201112-201208

52296BRACE, REAR SUSPENSION MEMBER, LH

main52295-30030iGRX130¥2,040201112-201208

52297BRACE, REAR SUSPENSION MEMBER, REAR LOWER RH

main52297-53030¥5,100

52298BRACE, REAR SUSPENSION MEMBER, REAR LOWER LH

main52298-53030¥5,100

5302

58252CBRACE, FLOOR PANEL, REAR NO.1

9011908B13

main90119-08B13¥90

9011910806

main90119-10806¥810

9012908004

main90129-08004¥200

9015960507

main90159-60507¥70

9017814012

main90178-14012¥210

9018906066

main90189-06066¥80

9046707201

main90467-07201¥100

91673L0625

main91673-L0625¥80

36 parts on this diagram · 1 diagram in section
