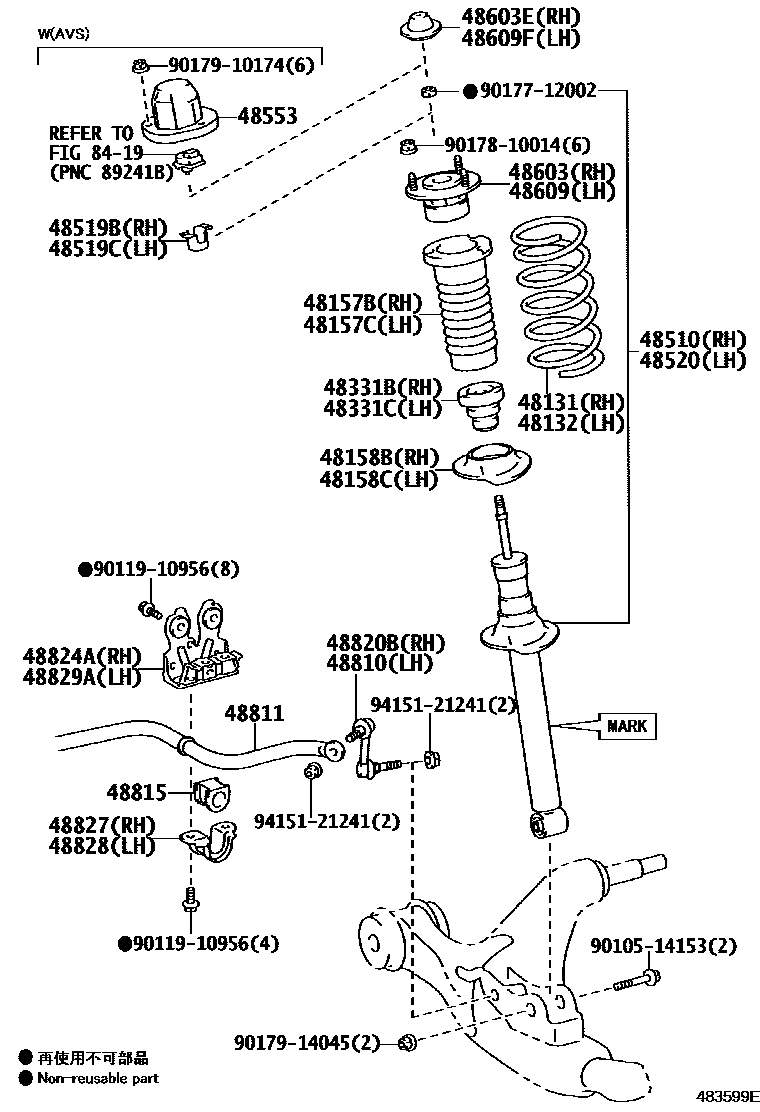

FRONT SPRING & SHOCK ABSORBER
48157BINSULATOR, FRONT COIL SPRING, UPPER RH
48157CINSULATOR, FRONT COIL SPRING, UPPER LH
48158BINSULATOR, FRONT COIL SPRING, LOWER RH
48158CINSULATOR, FRONT COIL SPRING, LOWER LH
48331BBUMPER, FRONT SPRING, RH
48331CBUMPER, FRONT SPRING, LH
48510ABSORBER ASSY, SHOCK, FRONT RH
MARK 48510-22A81,S PACKAGE
MARK 48510-22A91
MARK 48510-22B10
MARK 48510-22B20,S PACKAGE
MARK 48510-22B11
MARK 48510-22B21,S PACKAGE
48519BBRACKET, ACTUATOR SUPPORT, FRONT RH
S PACKAGE
48519CBRACKET, ACTUATOR SUPPORT, FRONT LH
S PACKAGE
48520ABSORBER ASSY, SHOCK, FRONT LH
MARK 48520-22691,S PACKAGE
MARK 48520-22701
MARK 48520-22720
MARK 48520-22730,S PACKAGE
MARK 48520-22721
MARK 48520-22731,S PACKAGE
48553CAP, SHOCK ABSORBER, UPPER
S PACKAGE
48603SUPPORT SUB-ASSY, FRONT SUSPENSION, RH
S PACKAGE
S PACKAGE
48603EPLUG, HOLE(FOR FRONT SUSPENSION SUPPORT RH)
48609SUPPORT SUB-ASSY, FRONT SUSPENSION, LH
S PACKAGE
S PACKAGE
48609FPLUG, HOLE(FOR FRONT SUSPENSION SUPPORT LH)
48810LINK ASSY, FRONT STABILIZER, LH
48811BAR, STABILIZER, FRONT
S PACKAGE
S PACKAGE
48815BUSH, FRONT STABILIZER BAR, NO.1
S PACKAGE
S PACKAGE
48820BLINK ASSY, FRONT STABILIZER, RH
48824ABRACKET, FRONT STABILIZER, NO.1 RH
48827BRACKET, FRONT STABILIZER, NO.2 RH
48828BRACKET, FRONT STABILIZER, NO.2 LH
48829ABRACKET, FRONT STABILIZER, NO.1 LH
8419
9010514153
main90105-14153
9011910956
main90119-10956
9017712002
main90177-12002
9017810014
main90178-10014
9017910174
main90179-10174
9017914045
main90179-14045
9415121241
main94151-21241
33 parts on this diagram · 1 diagram in section
