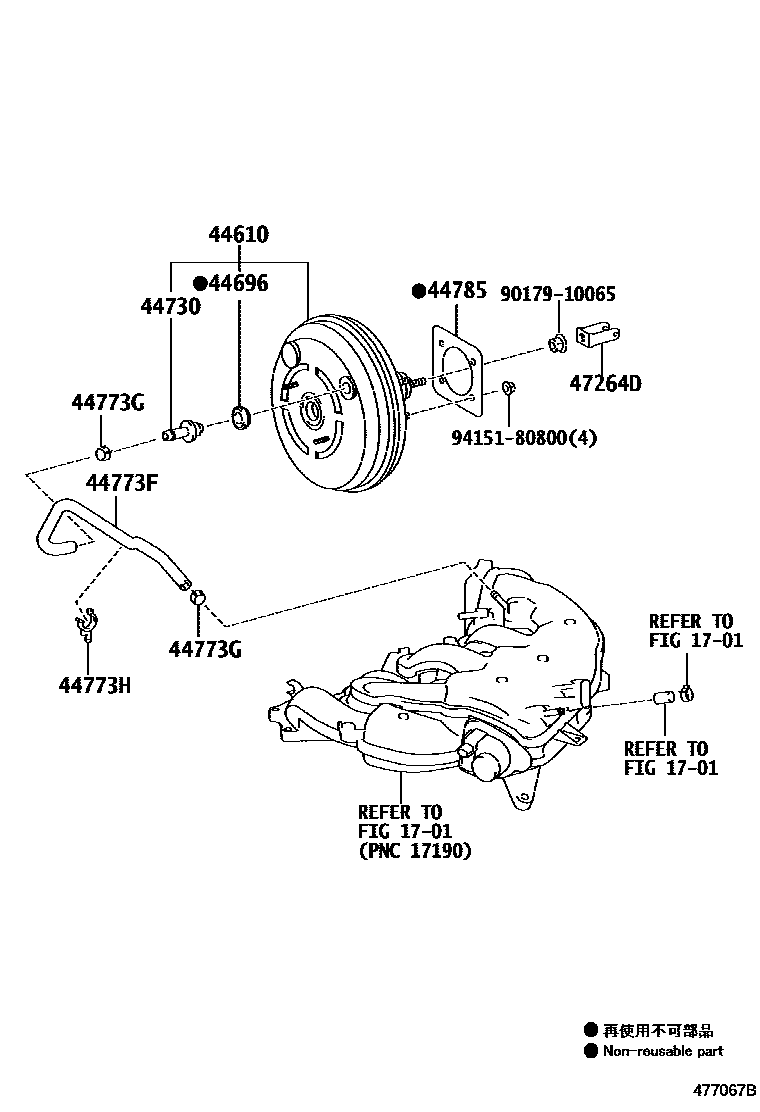

BRAKE BOOSTER & VACUUM TUBE

1701

44610BOOSTER ASSY, BRAKE

main44610-30B21iGRX130201112-201611

44696GROMMET, CHECK VALVE

main90480-24439iGRX130201112-201208

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-22150iGRX130201112-201611

44773FHOSE, UNION TO CHECK VALVE

main44773-22540iGRX130201112-201208

44773GCLIP(FOR UNION TO CHECK VALVE HOSE)

main90467-16014iGRX130201112-201208

44773HCLAMP(FOR UNION TO CHECK VALVE HOSE)

main90469-17003iGRX130201112-201208

44785GASKET, BRAKE BOOSTER

main44785-47010iGRX130201112-201208

47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD

main47264-22040iGRX130201112-201208

9017910065

main90179-10065

9415180800

main94151-80800

11 parts on this diagram · 1 diagram in section
