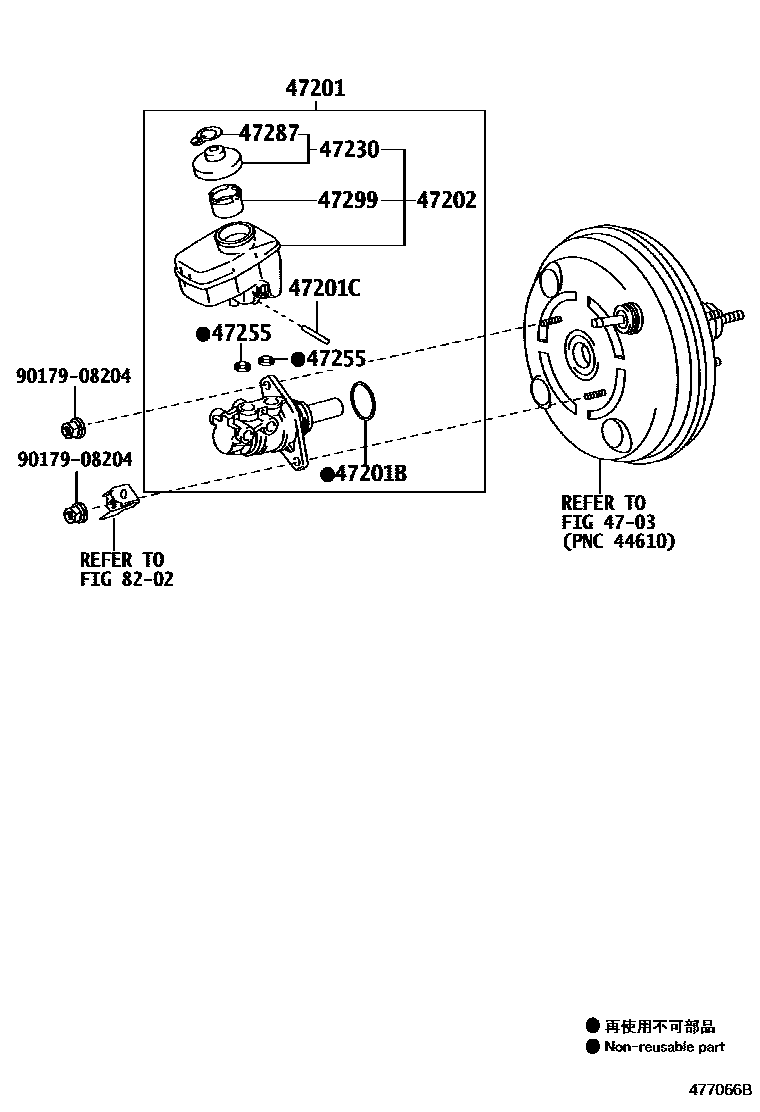

BRAKE MASTER CYLINDER

4703

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-30790iGRX130201112-201202

sub47201-30791

main47201-30791iGRX130201203-201204

sub47201-30792

main47201-30792iGRX130201205-201208

47201BRING, O(FOR BRAKE MASTER CYLINDER)

main90015-AH002iGRX130201112-201208

47201CRING PIN, BRAKE MASTER CYLINDER

main90029-15803iGRX130201112-201208

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47220-30210iGRX130201112-201208

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-20140iGRX130201112-201208

47255GROMMET, MASTER CYLINDER RESERVOIR

main90029-48001iGRX130201112-201208

sub90016-AT001

47287LABEL, BRAKE FLUID INFORMATION

main47287-20010iGRX130201112-201208

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-20060iGRX130201112-201208

8202

9017908204

main90179-08204

11 parts on this diagram · 1 diagram in section
