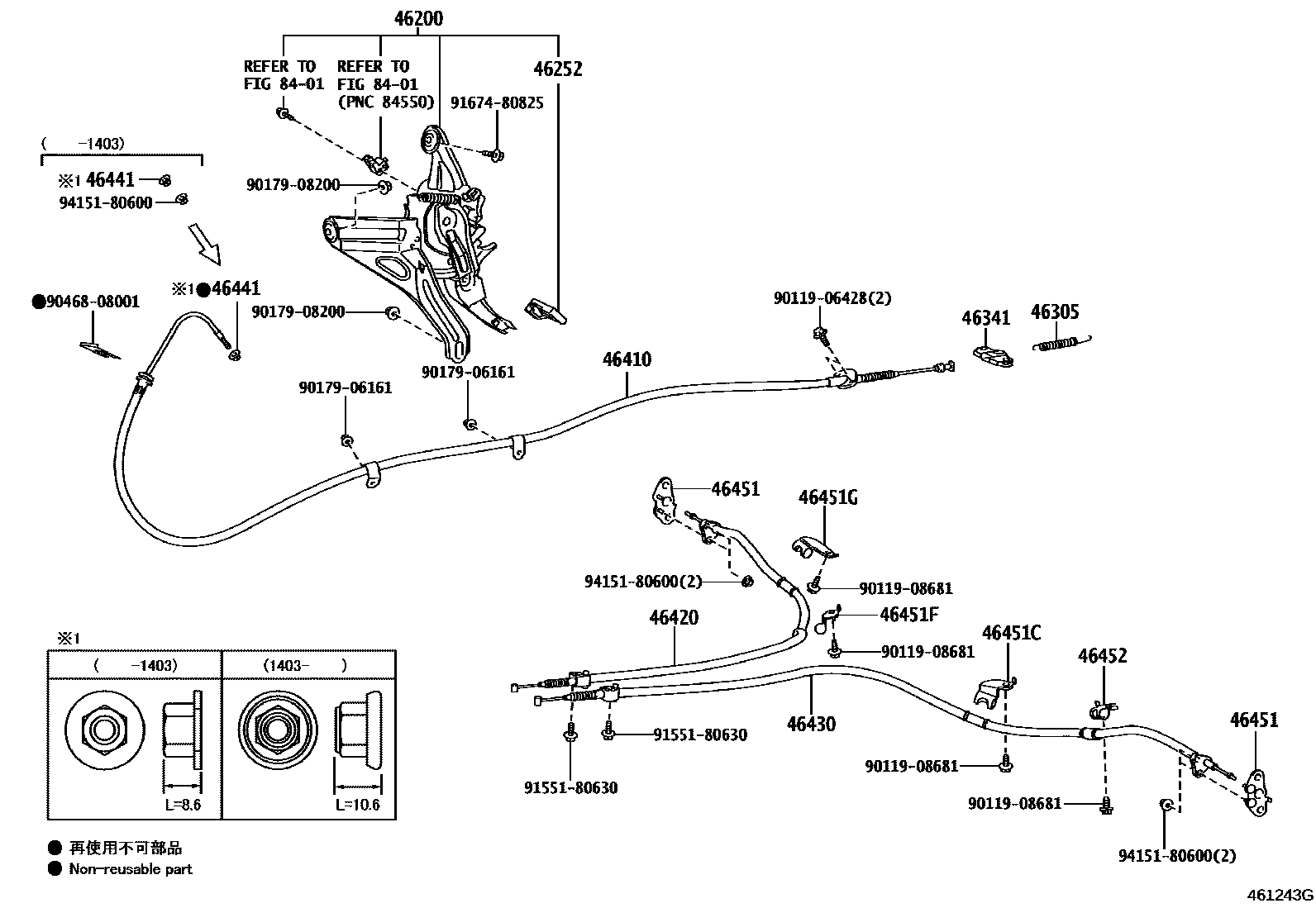

PARKING BRAKE & CABLE

0001 1 0002 1

46200PEDAL ASSY, PARKING BRAKE CONTROL

main46210-22360iGRX130201112-201401

sub46250-30010

main46250-30010iGRX130201402-201611

46252PAD, PARKING PEDAL

main46252-22010iGRX130201112-201403

main46252-47010iGRX130201404

46305SPRING, PARKING BRAKE RETURN W/DAMPER

main46305-50020iGRX130201112-201208

46341EQUALIZER, PARKING BRAKE

main46341-22060iGRX130201112-201208

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-30780iGRX130201112-201401

sub46410-30781

main46410-30781iGRX130201402

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-30581iGRX130201112-201208

46430CABLE ASSY, PARKING BRAKE, NO.3

main46420-30581iGRX130201112-201208

46441NUT, WIRE ADJUSTING, NO.1

main90177-06003iGRX130201403

main90182-06008iGRX130201112-201403

46451BRACKET, CABLE SUPPORT

main46451-50050iGRX130201112-201611

46451CBRACKET, PARKING BRAKE CABLE SUPPORT, NO.1

main46451-30180iGRX130201112-201208

46451FBRACKET, CABLE SUPPORT

main46451-30170iGRX130201112-201208

46451GBRACKET, CABLE SUPPORT

main46451-30190iGRX130201112-201208

46452BRACKET, PARKING BRAKE CABLE SUPPORT, NO.2

main46451-30200iGRX130201112-201208

8401

9011906428

main90119-06428

9011908681

main90119-08681

9017906161

main90179-06161

9017908200

main90179-08200

9046808001

main90468-08001

9155180630

main91551-80630

9167480825

main91674-80825

9415180600

main94151-80600

22 parts on this diagram · 2 diagrams in section
