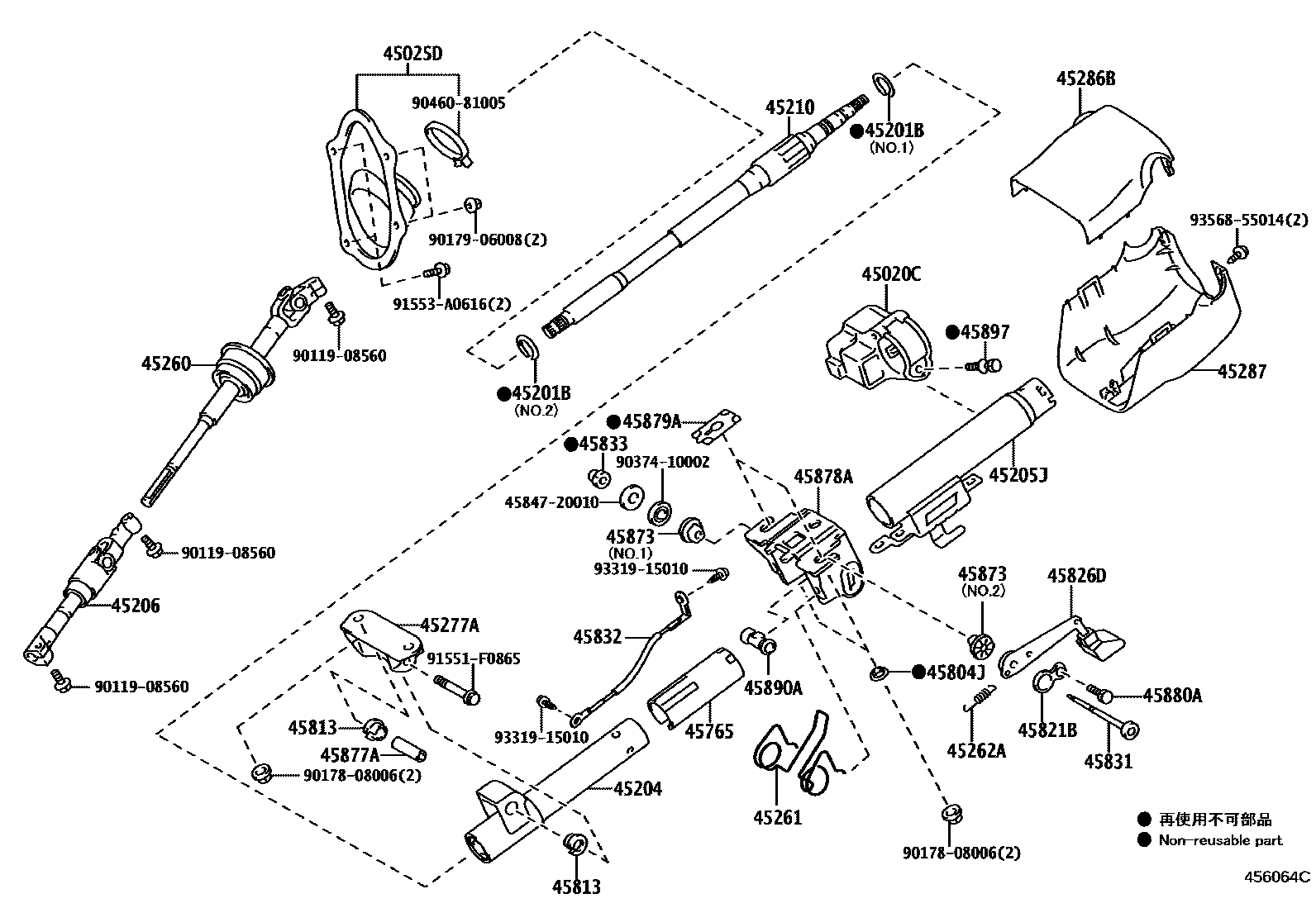

STEERING COLUMN & SHAFT
45020CACTUATOR ASSY, STEERING LOCK(W/ECU)
45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1
45201BRING, SHAFT SNAP(FOR STEERING MAIN SHAFT)
T=1.20,NO.2
T=1.20,NO.1
45204TUBE ASSY, STEERING COLUMN, LOWER
45205JTUBE SUB-ASSY, STEERING COLUMN, UPPER
45206YOKE SUB-ASSY, STEERING SLIDING W/SHAFT
45210SHAFT ASSY, STEERING MAIN
45261SPRING, TILT STEERING JUMP UP
45262ASPRING, TILT LEVER RETURN
45277ASUPPORT, TILT STEERING
45286BCOVER, STEERING COLUMN, UPR
BLACK,TRIM2#
45287COVER, STEERING COLUMN, LWR
BLACK,TRIM2#
45765GUIDE, TELESCOPIC STEERING
45804JCOLLAR SUB-ASSY, BREAK AWAY
45813COLLAR, TILT STEERING SUPPORT, NO.1
OD=24-16
45821BREINFORCE, TILT STEERING SUPPORT, NO.1
45826DLEVER, STEERING TELESCOPIC
45831BOLT, TILT LEVER LOCK, NO.1
45832CABLE, TILT STEERING SUPPORT BOND
45833NUT, TILT STEERING ADJUSTING, NO.1
45873STOPPER, STEERING COLUMN TUBE
NO.1
NO.2
45877ASPACER, STEERING COLUMN BRACKET
45878ABRACKET, BREAK AWAY
45879ACAPSULE, BREAK AWAY
45880ABOLT(FOR STEERING TILT LEVER)
45890APAWL ASSY, TILT STEERING
45897BOLT, STEERING LOCK SET
4584720010
main45847-20010
9011908560
main90119-08560
9017808006
main90178-08006
9017906008
main90179-06008
9037410002
main90374-10002
9046081005
main90460-81005
91551F0865
main91551-F0865
91553A0616
main91553-A0616
9331915010
main93319-15010
9356855014
main93568-55014
38 parts on this diagram · 1 diagram in section
