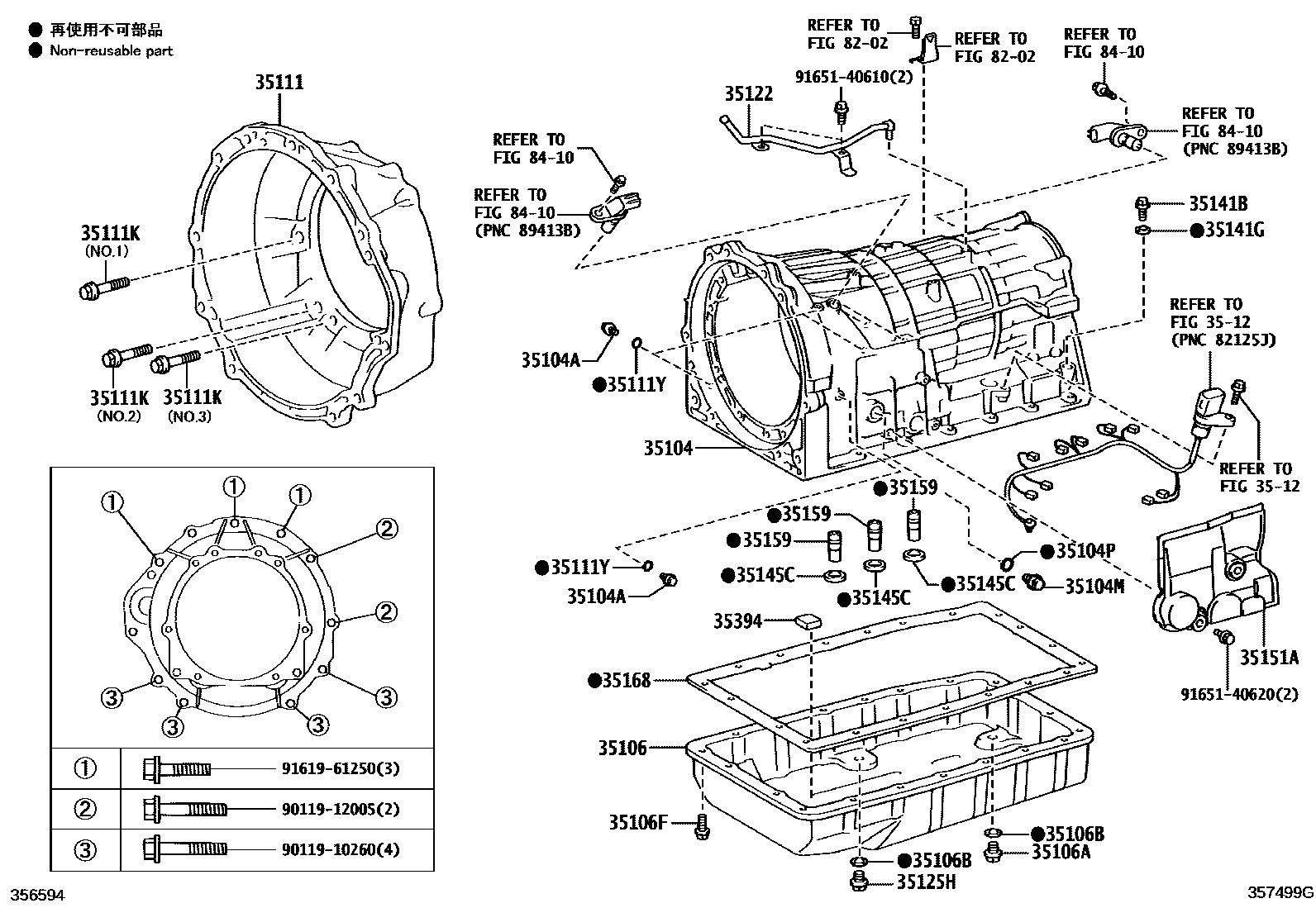

TRANSMISSION CASE & OIL PAN (ATM)

35104CASE SUB-ASSY, AUTOMATIC TRANSMISSION

main35104-22080iGRX130201112-201208

35104APLUG, AUTOMATIC TRANSMISSION CASE

main90341-08001×5iGRX130201112-201208

35104MPLUG, REFILL(ATM)

main90341-18059iGRX130201112-201208

35104PGASKET, REFILL PLUG(ATM)

main90301-15004iGRX130201112-201208

35106PAN SUB-ASSY, AUTOMATIC TRANSMISSION OIL

main35106-22120iGRX130201112-201208

35106APLUG SUB-ASSY, DRAIN (ATM)

main90341-10011iGRX130201112-201208

35106BGASKET, DRAIN PLUG (ATM)

main35178-30010×2iGRX130201112-201208

35106FBOLT (FOR AUTOMATIC TRANSMISSION OIL PAN)

main90119-06173×20iGRX130201112-201208

35111HOUSING, AUTOMATIC TRANSMISSION

main35111-22110iGRX130201112-201208

35111KBOLT (FOR TRANSMISSION HOUSING & CASE SETTING)

main90119-10232×6iGRX130201112-201208

*10-1.5PX35-30,NO.1

main90119-10947×2iGRX130201208

*10-1.50PX35-29.3,NO.3

main90119-12378×2iGRX130201112-201208

*12-1.75PX38-30,NO.2

35111YRING, O (FOR AUTOMATIC TRANSMISSION CASE)

main90301-06196×5iGRX130201112-201208

3512

35122TUBE, BREATHER (FOR AUTOMATIC TRANSAXLE)

main90930-03181iGRX130201112-201208

35125HPLUG, OVERFLOW(ATM)

main90341-10021iGRX130201112-201208

35141BPLUG (FOR AUTOMATIC TRANSMISSION CASE)

main90341-14011iGRX130201112-201208

35141GRING, O (FOR AUTOMATIC TRANSMISSION CASE)

main90301-11030iGRX130201112-201208

35145CGASKET, TRANSAXLE CASE

main35145-60020×3iGRX130201112-201208

35151ACOVER, TRANSAXLE CASE, UPPER

main35151-22020iGRX130201112-201208

35159GASKET, BRAKE DRUM

main35159-60010×3iGRX130201112-201208

35168GASKET, AUTOMATIC TRANSMISSION OIL PAN

main35168-22020iGRX130201112-201208

35394MAGNET, OIL CLEANER (FOR TRANSMISSION)

main35394-30011×3iGRX130201112-201208

8202

8410

9011910260

main90119-10260

9011912005

main90119-12005

9161961250

main91619-61250

9165140610

main91651-40610

9165140620

main91651-40620

28 parts on this diagram · 1 diagram in section
