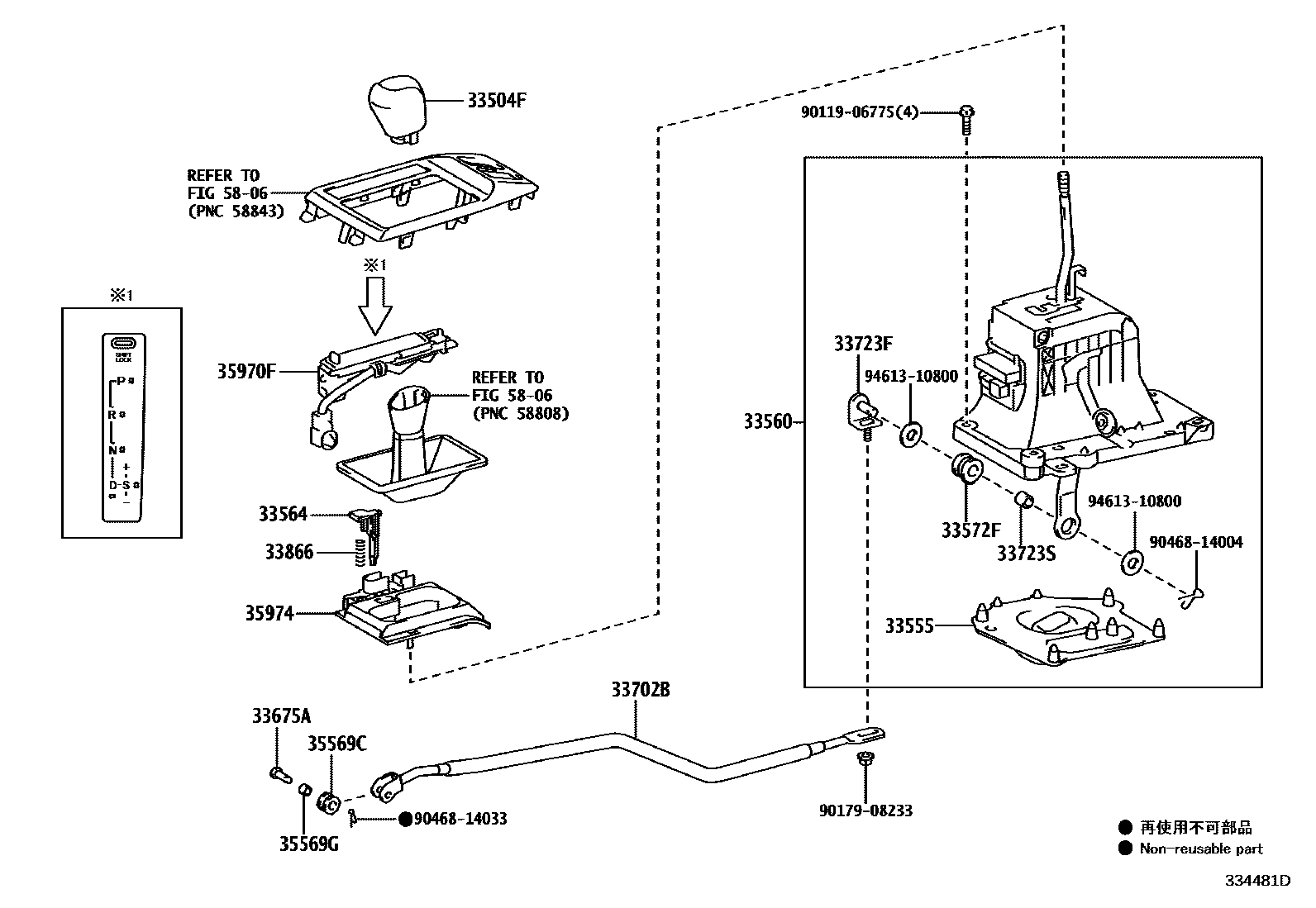

SHIFT LEVER & RETAINER

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-22220-C0iGRX130201112-201611

BLACK,TRIM2#

33555BOOT, SHIFT LEVER

main33555-30410iGRX130201112-201611

33560UNIT ASSY, SHIFT LOCK CONTROL

main33560-22060iGRX130201112-201611

33564LINK, SHIFT LOCK RELEASE, NO.1

main33564-30180iGRX130201112-201611

33572FBUSH, CONTROL SHAFT LOWER

main33572-30060iGRX130201112-201611

33675APIN, W/HOLE (FOR TRANSMISSION CONTROL ROD)

main33726-35010iGRX130201112-201208

33702BROD SUB-ASSY, GEAR SHIFTING, NO.1 (FOR FLOOR SHIFT)

main33702-22140iGRX130201112-201611

33723FSWIVEL, CONNECTING ROD (FOR FLOOR SHIFT)

main33723-30100iGRX130201112-201611

33723SBUSH (FOR CONNECTING ROD SWIVEL)

main33514-30090iGRX130201112-201611

33866SPRING, SHIFT LOCK RELEASE

main33866-50010iGRX130201112-201611

35569CGROMMET (FOR TRANSMISSION CONTROL ROD)

main90480-17013iGRX130201112-201611

35569GBUSH (FOR TRANSMISSION CONTROL ROD)

main90560-08091iGRX130201112-201611

35970FHOUSING ASSY, POSITION INDICATOR

main35970-22110iGRX130201112-201208

35974HOUSING, POSITION INDICATOR, LOWER

main35974-30190iGRX130201112-201611

5806

9011906775

main90119-06775

9017908233

main90179-08233

9046814004

main90468-14004

9046814033

main90468-14033

9461310800

main94613-10800

20 parts on this diagram · 1 diagram in section
