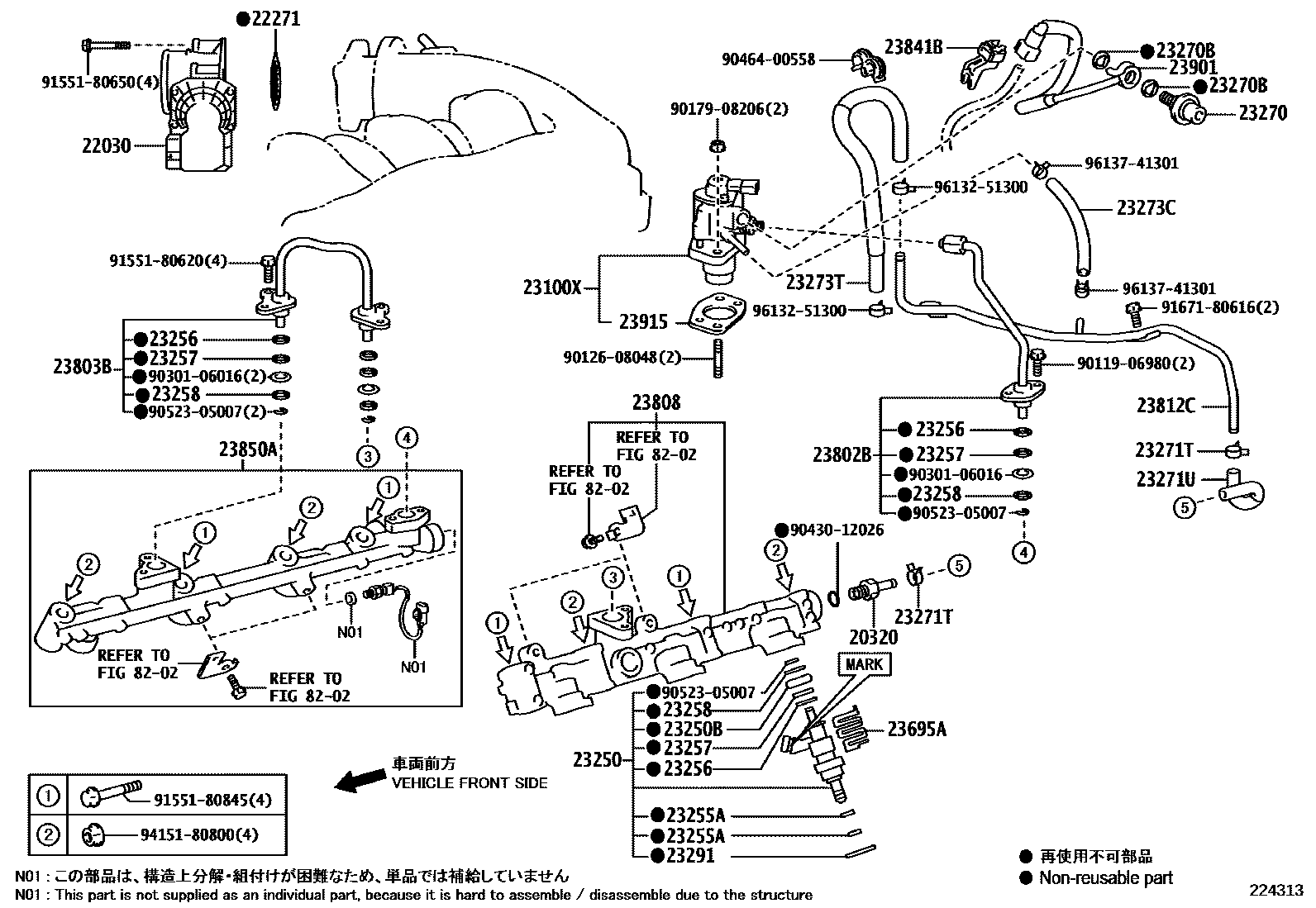

FUEL INJECTION SYSTEM
20320VALVE ASSY, FUEL RELIEF
22030BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR
22271GASKET, THROTTLE BODY
23100XPUMP ASSY, FUEL (ENGINE ROOM SIDE)
23250INJECTOR ASSY, FUEL
MARK BLACK
MARK BROWN
23250BRING, O(FOR FUEL INJECTOR)
23255ASEAL, FUEL INJECTOR
23256RING, FUEL INJECTOR BACK-UP, NO.1
23257RING, FUEL INJECTOR BACK-UP, NO.2
23258RING, FUEL INJECTOR BACK-UP, NO.3
23270DAMPER ASSY, FUEL PRESSURE PULSATION
23270BGASKET(FOR PULSATION DAMPER HOSE)
23271TCLAMP OR CLIP(FOR FUEL HOSE)
23271UHOSE, FUEL, NO.1
23273CHOSE, FUEL, NO.2
23273THOSE, FUEL, NO.3
23291INSULATOR, INJECTOR VIBRATION
23695ACLAMP, NOZZLE HOLDER
23802BPIPE SUB-ASSY, FUEL, NO.2
23803BPIPE SUB-ASSY, FUEL, NO.3
23808PIPE SUB-ASSY, FUEL DELIVERY, NO.2
23812CPIPE, FUEL, NO.2
23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)
23850APIPE ASSY, FUEL DELIVERY W/SENSOR, RH
23901TUBE SUB-ASSY, FUEL
23915INSULATOR, FUEL PUMP
8202
9011906980
9012608048
9017908206
9030106016
9043012026
9046400558
9052305007
9155180620
9155180650
9155180845
9167180616
9415180800
9613251300
9613741301
41 parts on this diagram · 1 diagram in section
