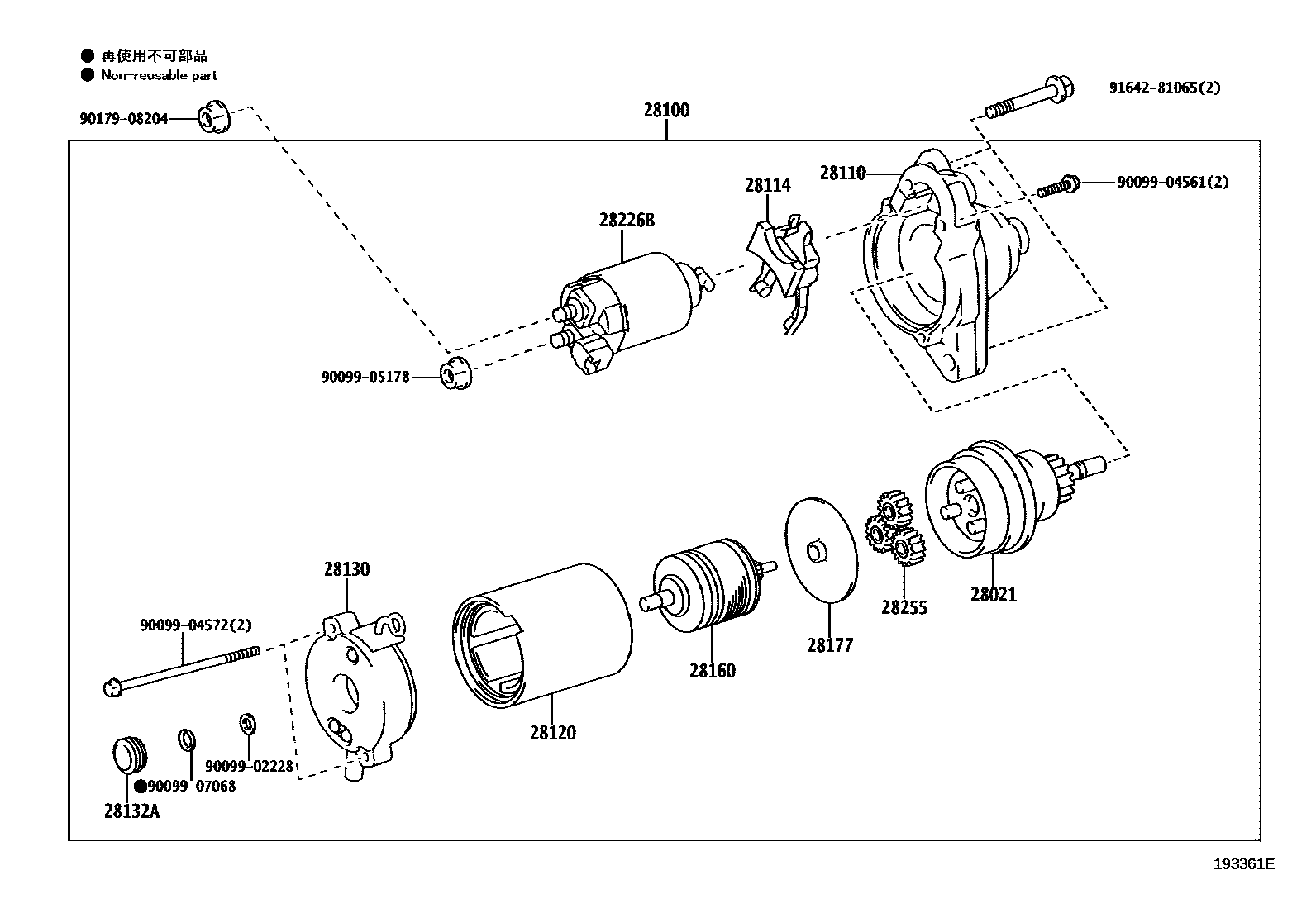

STARTER

28021CLUTCH SUB-ASSY, STARTER CENTER BEARING

main28021-21060i4GRFSE..GRX130201112-201208

28100STARTER ASSY

main28100-31081i4GRFSE..GRX130201112-201208

12V 1.3KW

28110HOUSING ASSY, STARTER DRIVE

main28110-31040i4GRFSE..GRX130201112-201208

28114PIN, STARTER DRIVE LEVER SET

main28114-21060i4GRFSE..GRX130201112-201208

28120YOKE ASSY, STARTER

main28120-28080i4GRFSE..GRX130201112-201208

28130FRAME ASSY, STARTER COMMUTATOR END

main28130-31080i4GRFSE..GRX130201112-201208

28132ACOVER, STARTER COMMUTATOR END FRAME

main28132-28040i4GRFSE..GRX130201112-201208

28160ARMATURE ASSY, STARTER

main28160-21060i4GRFSE..GRX130201112-201208

28177PLATE(FOR STARTER ARMATURE)

main28177-28040i4GRFSE..GRX130201112-201208

28226BSTARTER KIT, REPAIR SERVICE

main28226-22061i4GRFSE..GRX130201112-201208

28255GEAR, PLANET

main28255-28040i4GRFSE..GRX130201112-201208

9009902228

main90099-02228

9009904561

main90099-04561

9009904572

main90099-04572

9009905178

main90099-05178

9009907068

main90099-07068

9017908204

main90179-08204

9164281065

main91642-81065

18 parts on this diagram · 1 diagram in section
