EPC Data

MUDGUARD & SPOILER

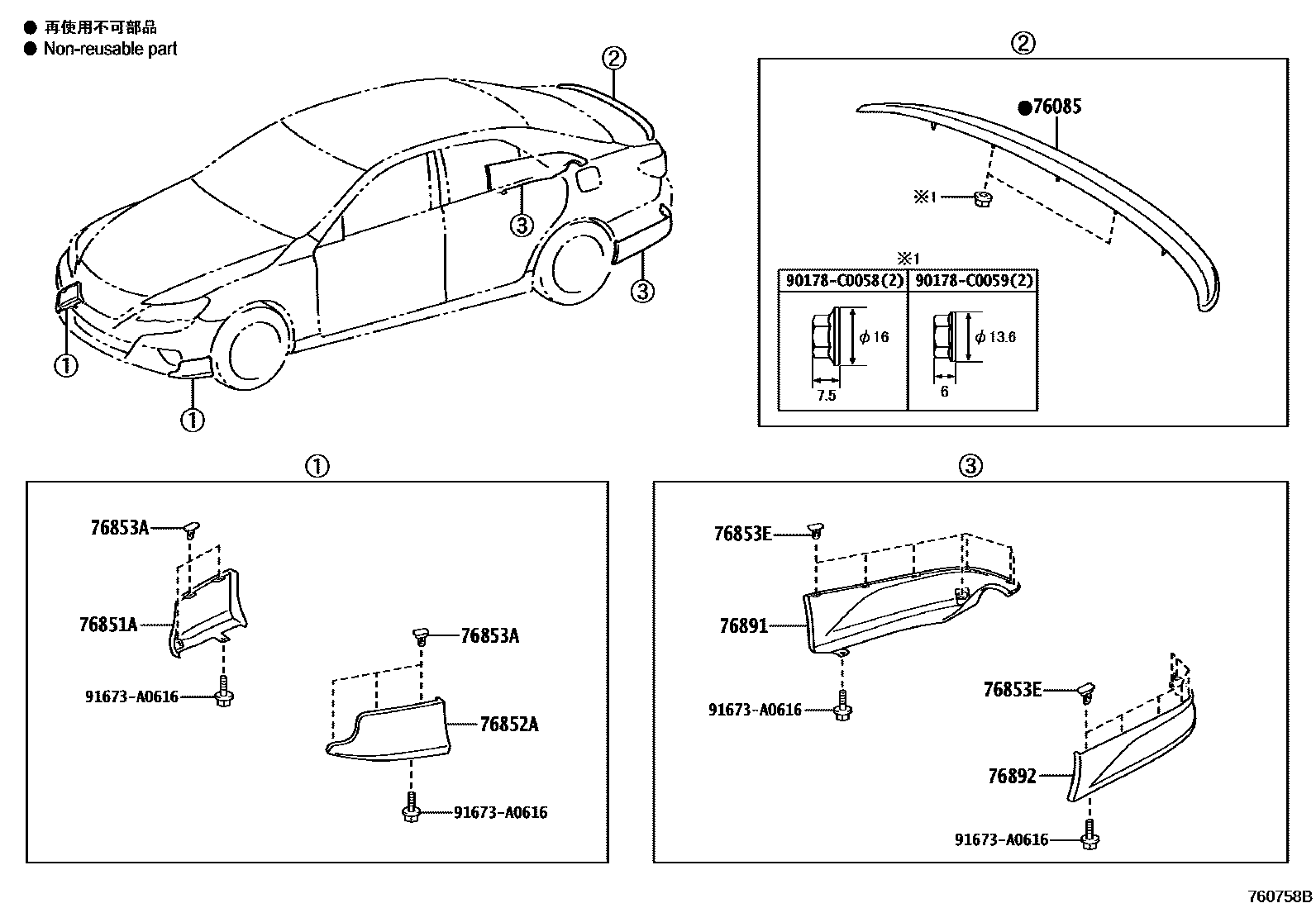

Parts diagram
76085SPOILER SUB-ASSY, REAR
main76085-0P020-A0i201009-201609
WHITE PEARL CS.,062
sub76085-0P901
main76085-0P020-A0i201009-201309
SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM),WHITE PEARL CS.,062
sub76085-0P901
main76085-0P020-A0i201009-201309
SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM&*AFSL),WHITE PEARL CS.,062
sub76085-0P901
main76085-0P020-A0i201009-201309
SPORT & WITH(*MR),WHITE PEARL CS.,062
sub76085-0P901
main76085-0P020-A0i201009-201309
SPORT & WITH(*MR&*NS),WHITE PEARL CS.,062
sub76085-0P901
main76085-0P020-B0i201009-201609
SILVER ME.,1F7
sub76085-0P901
main76085-0P020-B0i201009-201309
SPORT & WITH(*MR),SILVER ME.,1F7
sub76085-0P901
main76085-0P020-B0i201009-201309
SPORT & WITH(*MR&*NS),SILVER ME.,1F7
sub76085-0P901
main76085-0P020-B0i201009-201309
SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM),SILVER ME.,1F7
sub76085-0P901
main76085-0P020-B0i201009-201309
SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM&*AFSL),SILVER ME.,1F7
sub76085-0P901
main76085-0P020-B1i201009-201609
ICE TITANIUM M.M.,1H4
sub76085-0P901
main76085-0P020-B1i201009-201309
SPORT & WITH(*MR),ICE TITANIUM M.M.,1H4
sub76085-0P901
main76085-0P020-B1i201009-201309
SPORT & WITH(*MR&*NS),ICE TITANIUM M.M.,1H4
sub76085-0P901
main76085-0P020-B1i201009-201309
SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM),ICE TITANIUM M.M.,1H4
sub76085-0P901
main76085-0P020-B1i201009-201309
SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM&*AFSL),ICE TITANIUM M.M.,1H4
sub76085-0P901
main76085-0P020-C0i201009-201309
SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM),BLACK,202
sub76085-0P901
main76085-0P020-C0i201009-201309
SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM&*AFSL),BLACK,202
sub76085-0P901
main76085-0P020-C0i201009-201609
BLACK,202
sub76085-0P901
main76085-0P020-C0i201009-201309
SPORT & WITH(*MR),BLACK,202
sub76085-0P901
main76085-0P020-C0i201009-201309
SPORT & WITH(*MR&*NS),BLACK,202
sub76085-0P901
main76085-0P020-D0i201009-201309
SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM&*AFSL),DK. RED M.M.,3Q3
sub76085-0P901
main76085-0P020-D0i201009-201609
DK. RED M.M.,3Q3
sub76085-0P901
main76085-0P020-D0i201009-201309
SPORT & WITH(*MR),DK. RED M.M.,3Q3
sub76085-0P901
main76085-0P020-D0i201009-201309
SPORT & WITH(*MR&*NS),DK. RED M.M.,3Q3
sub76085-0P901
main76085-0P020-D0i201009-201309
SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM),DK. RED M.M.,3Q3
sub76085-0P901
main76085-0P020-E0i201203-201309
SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM&*AFSL),DK. BROWN M.M.,4U3
sub76085-0P901
main76085-0P020-E0i201203-201309
DK. BROWN M.M.,4U3
sub76085-0P901
main76085-0P020-E0i201203-201309
SPORT & WITH(*MR),DK. BROWN M.M.,4U3
sub76085-0P901
main76085-0P020-E0i201203-201309
SPORT & WITH(*MR&*NS),DK. BROWN M.M.,4U3
sub76085-0P901
main76085-0P020-E0i201203-201309
SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM),DK. BROWN M.M.,4U3
sub76085-0P901
main76085-0P020-E0i201203-201309
12/03PACKAGE,DK. BROWN M.M.,4U3
sub76085-0P901
main76085-0P020-E1i201309-201609
BRONZE M.M.,4T3
sub76085-0P901
main76085-0P020-J0i201009-201309
SPORT & WITH(*MR),DK.BLUE MC.,8S6
sub76085-0P901
main76085-0P020-J0i201009-201309
SPORT & WITH(*MR&*NS),DK.BLUE MC.,8S6
sub76085-0P901
main76085-0P020-J0i201009-201309
SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM),DK.BLUE MC.,8S6
sub76085-0P901
main76085-0P020-J0i201009-201309
SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM&*AFSL),DK.BLUE MC.,8S6
sub76085-0P901
main76085-0P020-J0i201009-201309
DK.BLUE MC.,8S6
sub76085-0P901
main76085-0P020-J1i201309-201609
BLUE ME.,8T7
sub76085-0P901
76851ACOVER, FRONT SPOILER, RH
main76851-0P020-A0i201009-201309
WHITE PEARL CS.,062
main76851-0P020-A0i201009-201309
SPORT & WITH(*MR),WHITE PEARL CS.,062
main76851-0P020-A0i201009-201309
SPORT & WITH(*MR&*NS),WHITE PEARL CS.,062
main76851-0P020-A0i201009-201309
SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM),WHITE PEARL CS.,062
main76851-0P020-A0i201009-201309
SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM&*AFSL),WHITE PEARL CS.,062
main76851-0P020-B0i201009-201309
SPORT & WITH(*MR),SILVER ME.,1F7
main76851-0P020-B0i201009-201309
SILVER ME.,1F7
main76851-0P020-B0i201009-201309
SPORT & WITH(*MR&*NS),SILVER ME.,1F7
main76851-0P020-B0i201009-201309
SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM),SILVER ME.,1F7
main76851-0P020-B0i201009-201309
SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM&*AFSL),SILVER ME.,1F7
main76851-0P020-B1i201009-201309
SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM&*AFSL),ICE TITANIUM M.M.,1H4
main76851-0P020-B1i201009-201309
SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM),ICE TITANIUM M.M.,1H4
main76851-0P020-B1i201009-201309
SPORT & WITH(*MR&*NS),ICE TITANIUM M.M.,1H4
main76851-0P020-B1i201009-201309
SPORT & WITH(*MR),ICE TITANIUM M.M.,1H4
main76851-0P020-B1i201009-201309
ICE TITANIUM M.M.,1H4
main76851-0P020-C0i201009-201309
BLACK,202
main76851-0P020-C0i201009-201309
SPORT & WITH(*MR),BLACK,202
main76851-0P020-C0i201009-201309
SPORT & WITH(*MR&*NS),BLACK,202
main76851-0P020-C0i201009-201309
SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM),BLACK,202
main76851-0P020-C0i201009-201309
SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM&*AFSL),BLACK,202
main76851-0P020-D0i201009-201309
SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM),DK. RED M.M.,3Q3
main76851-0P020-D0i201009-201309
DK. RED M.M.,3Q3
main76851-0P020-D0i201009-201309
SPORT & WITH(*MR),DK. RED M.M.,3Q3
main76851-0P020-D0i201009-201309
SPORT & WITH(*MR&*NS),DK. RED M.M.,3Q3
main76851-0P020-D0i201009-201309
SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM&*AFSL),DK. RED M.M.,3Q3
main76851-0P020-E0i201203-201309
12/03PACKAGE,DK. BROWN M.M.,4U3
main76851-0P020-E0i201203-201309
SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM&*AFSL),DK. BROWN M.M.,4U3
main76851-0P020-E0i201203-201309
SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM),DK. BROWN M.M.,4U3
main76851-0P020-E0i201203-201309
SPORT & WITH(*MR&*NS),DK. BROWN M.M.,4U3
main76851-0P020-E0i201203-201309
SPORT & WITH(*MR),DK. BROWN M.M.,4U3
main76851-0P020-E0i201203-201309
DK. BROWN M.M.,4U3
main76851-0P020-J0i201009-201309
SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM&*AFSL),DK.BLUE MC.,8S6
main76851-0P020-J0i201009-201309
DK.BLUE MC.,8S6
main76851-0P020-J0i201009-201309
SPORT & WITH(*MR),DK.BLUE MC.,8S6
main76851-0P020-J0i201009-201309
SPORT & WITH(*MR&*NS),DK.BLUE MC.,8S6
main76851-0P020-J0i201009-201309
SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM),DK.BLUE MC.,8S6
76852ACOVER, FRONT SPOILER, LH
main76852-0P020-A0i201009-201309
WHITE PEARL CS.,062
main76852-0P020-A0i201009-201309
SPORT & WITH(*MR),WHITE PEARL CS.,062
main76852-0P020-A0i201009-201309
SPORT & WITH(*MR&*NS),WHITE PEARL CS.,062
main76852-0P020-A0i201009-201309
SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM),WHITE PEARL CS.,062
main76852-0P020-A0i201009-201309
SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM&*AFSL),WHITE PEARL CS.,062
main76852-0P020-B0i201009-201309
SILVER ME.,1F7
main76852-0P020-B0i201009-201309
SPORT & WITH(*MR),SILVER ME.,1F7
main76852-0P020-B0i201009-201309
SPORT & WITH(*MR&*NS),SILVER ME.,1F7
main76852-0P020-B0i201009-201309
SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM),SILVER ME.,1F7
main76852-0P020-B0i201009-201309
SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM&*AFSL),SILVER ME.,1F7
main76852-0P020-B1i201009-201309
ICE TITANIUM M.M.,1H4
main76852-0P020-B1i201009-201309
SPORT & WITH(*MR),ICE TITANIUM M.M.,1H4
main76852-0P020-B1i201009-201309
SPORT & WITH(*MR&*NS),ICE TITANIUM M.M.,1H4
main76852-0P020-B1i201009-201309
SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM),ICE TITANIUM M.M.,1H4
main76852-0P020-B1i201009-201309
SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM&*AFSL),ICE TITANIUM M.M.,1H4
main76852-0P020-C0i201009-201309
BLACK,202
main76852-0P020-C0i201009-201309
SPORT & WITH(*MR),BLACK,202
main76852-0P020-C0i201009-201309
SPORT & WITH(*MR&*NS),BLACK,202
main76852-0P020-C0i201009-201309
SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM),BLACK,202
main76852-0P020-C0i201009-201309
SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM&*AFSL),BLACK,202
main76852-0P020-D0i201009-201309
SPORT & WITH(*MR&*NS),DK. RED M.M.,3Q3
main76852-0P020-D0i201009-201309
DK. RED M.M.,3Q3
main76852-0P020-D0i201009-201309
SPORT & WITH(*MR),DK. RED M.M.,3Q3
main76852-0P020-D0i201009-201309
SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM),DK. RED M.M.,3Q3
main76852-0P020-D0i201009-201309
SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM&*AFSL),DK. RED M.M.,3Q3
main76852-0P020-E0i201203-201309
12/03PACKAGE,DK. BROWN M.M.,4U3
main76852-0P020-E0i201203-201309
SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM&*AFSL),DK. BROWN M.M.,4U3
main76852-0P020-E0i201203-201309
DK. BROWN M.M.,4U3
main76852-0P020-E0i201203-201309
SPORT & WITH(*MR),DK. BROWN M.M.,4U3
main76852-0P020-E0i201203-201309
SPORT & WITH(*MR&*NS),DK. BROWN M.M.,4U3
main76852-0P020-E0i201203-201309
SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM),DK. BROWN M.M.,4U3
main76852-0P020-J0i201009-201309
SPORT & WITH(*MR&*NS),DK.BLUE MC.,8S6
main76852-0P020-J0i201009-201309
SPORT & WITH(*MR),DK.BLUE MC.,8S6
main76852-0P020-J0i201009-201309
SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM&*AFSL),DK.BLUE MC.,8S6
main76852-0P020-J0i201009-201309
DK.BLUE MC.,8S6
main76852-0P020-J0i201009-201309
SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM),DK.BLUE MC.,8S6
76853ARETAINER, FRONT SPOILER, UPPER NO.1
main75392-35200i201009-201309
SPORT & WITH(*MR)
main75392-35200i201009-201309
SPORT & WITH(*MR&*NS)
main75392-35200i201009-201309
SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM)
main75392-35200i201009-201309
SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM&*AFSL)
76853ERETAINER, REAR SPOILER, NO.1
main75392-35200i201009-201309
SPORT & WITH(*MR)
main75392-35200i201009-201309
SPORT & WITH(*MR&*NS)
main75392-35200i201009-201309
SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM)
main75392-35200i201009-201309
SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM&*AFSL)
main75392-35200i201309-201609
76891SPOILER, REAR NO.1
main76891-0P010-A0i201009-201309
WHITE PEARL CS.,062
sub76891-0P900
main76891-0P010-A0i201009-201309
SPORT & WITH(*MR),WHITE PEARL CS.,062
sub76891-0P900
main76891-0P010-A0i201009-201309
SPORT & WITH(*MR&*NS),WHITE PEARL CS.,062
sub76891-0P900
main76891-0P010-A0i201009-201309
SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM),WHITE PEARL CS.,062
sub76891-0P900
main76891-0P010-A0i201009-201309
SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM&*AFSL),WHITE PEARL CS.,062
sub76891-0P900
main76891-0P010-B0i201009-201309
SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM),SILVER ME.,1F7
sub76891-0P900
main76891-0P010-B0i201009-201309
SILVER ME.,1F7
sub76891-0P900
main76891-0P010-B0i201009-201309
SPORT & WITH(*MR),SILVER ME.,1F7
sub76891-0P900
main76891-0P010-B0i201009-201309
SPORT & WITH(*MR&*NS),SILVER ME.,1F7
sub76891-0P900
main76891-0P010-B0i201009-201309
SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM&*AFSL),SILVER ME.,1F7
sub76891-0P900
main76891-0P010-B1i201009-201309
ICE TITANIUM M.M.,1H4
sub76891-0P900
main76891-0P010-B1i201009-201309
SPORT & WITH(*MR),ICE TITANIUM M.M.,1H4
sub76891-0P900
main76891-0P010-B1i201009-201309
SPORT & WITH(*MR&*NS),ICE TITANIUM M.M.,1H4
sub76891-0P900
main76891-0P010-B1i201009-201309
SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM),ICE TITANIUM M.M.,1H4
sub76891-0P900
main76891-0P010-B1i201009-201309
SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM&*AFSL),ICE TITANIUM M.M.,1H4
sub76891-0P900
main76891-0P010-C0i201009-201309
BLACK,202
sub76891-0P900
main76891-0P010-C0i201009-201309
SPORT & WITH(*MR),BLACK,202
sub76891-0P900
main76891-0P010-C0i201009-201309
SPORT & WITH(*MR&*NS),BLACK,202
sub76891-0P900
main76891-0P010-C0i201009-201309
SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM),BLACK,202
sub76891-0P900
main76891-0P010-C0i201009-201309
SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM&*AFSL),BLACK,202
sub76891-0P900
main76891-0P010-D0i201009-201309
DK. RED M.M.,3Q3
sub76891-0P900
main76891-0P010-D0i201009-201309
SPORT & WITH(*MR),DK. RED M.M.,3Q3
sub76891-0P900
main76891-0P010-D0i201009-201309
SPORT & WITH(*MR&*NS),DK. RED M.M.,3Q3
sub76891-0P900
main76891-0P010-D0i201009-201309
SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM),DK. RED M.M.,3Q3
sub76891-0P900
main76891-0P010-D0i201009-201309
SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM&*AFSL),DK. RED M.M.,3Q3
sub76891-0P900
main76891-0P010-E0i201203-201309
12/03PACKAGE,DK. BROWN M.M.,4U3
sub76891-0P900
main76891-0P010-E0i201203-201309
SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM&*AFSL),DK. BROWN M.M.,4U3
sub76891-0P900
main76891-0P010-E0i201203-201309
SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM),DK. BROWN M.M.,4U3
sub76891-0P900
main76891-0P010-E0i201203-201309
SPORT & WITH(*MR&*NS),DK. BROWN M.M.,4U3
sub76891-0P900
main76891-0P010-E0i201203-201309
SPORT & WITH(*MR),DK. BROWN M.M.,4U3
sub76891-0P900
main76891-0P010-E0i201203-201309
DK. BROWN M.M.,4U3
sub76891-0P900
main76891-0P010-J0i201009-201309
SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM&*AFSL),DK.BLUE MC.,8S6
sub76891-0P900
main76891-0P010-J0i201009-201309
DK.BLUE MC.,8S6
sub76891-0P900
main76891-0P010-J0i201009-201309
SPORT & WITH(*MR),DK.BLUE MC.,8S6
sub76891-0P900
main76891-0P010-J0i201009-201309
SPORT & WITH(*MR&*NS),DK.BLUE MC.,8S6
sub76891-0P900
main76891-0P010-J0i201009-201309
SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM),DK.BLUE MC.,8S6
sub76891-0P900
main76891-0P020i201309-201609
76892SPOILER, REAR NO.2
main76892-0P010-A0i201009-201309
SPORT & WITH(*MR&*NS),WHITE PEARL CS.,062
sub76892-0P900
main76892-0P010-A0i201009-201309
SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM),WHITE PEARL CS.,062
sub76892-0P900
main76892-0P010-A0i201009-201309
SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM&*AFSL),WHITE PEARL CS.,062
sub76892-0P900
main76892-0P010-A0i201009-201309
WHITE PEARL CS.,062
sub76892-0P900
main76892-0P010-A0i201009-201309
SPORT & WITH(*MR),WHITE PEARL CS.,062
sub76892-0P900
main76892-0P010-B0i201009-201309
SPORT & WITH(*MR),SILVER ME.,1F7
sub76892-0P900
main76892-0P010-B0i201009-201309
SILVER ME.,1F7
sub76892-0P900
main76892-0P010-B0i201009-201309
SPORT & WITH(*MR&*NS),SILVER ME.,1F7
sub76892-0P900
main76892-0P010-B0i201009-201309
SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM),SILVER ME.,1F7
sub76892-0P900
main76892-0P010-B0i201009-201309
SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM&*AFSL),SILVER ME.,1F7
sub76892-0P900
main76892-0P010-B1i201009-201309
ICE TITANIUM M.M.,1H4
sub76892-0P900
main76892-0P010-B1i201009-201309
SPORT & WITH(*MR),ICE TITANIUM M.M.,1H4
sub76892-0P900
main76892-0P010-B1i201009-201309
SPORT & WITH(*MR&*NS),ICE TITANIUM M.M.,1H4
sub76892-0P900
main76892-0P010-B1i201009-201309
SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM),ICE TITANIUM M.M.,1H4
sub76892-0P900
main76892-0P010-B1i201009-201309
SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM&*AFSL),ICE TITANIUM M.M.,1H4
sub76892-0P900
main76892-0P010-C0i201009-201309
SPORT & WITH(*MR&*NS),BLACK,202
sub76892-0P900
main76892-0P010-C0i201009-201309
BLACK,202
sub76892-0P900
main76892-0P010-C0i201009-201309
SPORT & WITH(*MR),BLACK,202
sub76892-0P900
main76892-0P010-C0i201009-201309
SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM),BLACK,202
sub76892-0P900
main76892-0P010-C0i201009-201309
SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM&*AFSL),BLACK,202
sub76892-0P900
main76892-0P010-D0i201009-201309
DK. RED M.M.,3Q3
sub76892-0P900
main76892-0P010-D0i201009-201309
SPORT & WITH(*MR),DK. RED M.M.,3Q3
sub76892-0P900
main76892-0P010-D0i201009-201309
SPORT & WITH(*MR&*NS),DK. RED M.M.,3Q3
sub76892-0P900
main76892-0P010-D0i201009-201309
SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM),DK. RED M.M.,3Q3
sub76892-0P900
main76892-0P010-D0i201009-201309
SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM&*AFSL),DK. RED M.M.,3Q3
sub76892-0P900
main76892-0P010-E0i201203-201309
12/03PACKAGE,DK. BROWN M.M.,4U3
sub76892-0P900
main76892-0P010-E0i201203-201309
SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM&*AFSL),DK. BROWN M.M.,4U3
sub76892-0P900
main76892-0P010-E0i201203-201309
DK. BROWN M.M.,4U3
sub76892-0P900
main76892-0P010-E0i201203-201309
SPORT & WITH(*MR),DK. BROWN M.M.,4U3
sub76892-0P900
main76892-0P010-E0i201203-201309
SPORT & WITH(*MR&*NS),DK. BROWN M.M.,4U3
sub76892-0P900
main76892-0P010-E0i201203-201309
SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM),DK. BROWN M.M.,4U3
sub76892-0P900
main76892-0P010-J0i201009-201309
SPORT & WITH(*MR),DK.BLUE MC.,8S6
sub76892-0P900
main76892-0P010-J0i201009-201309
SPORT & WITH(*MR&*NS),DK.BLUE MC.,8S6
sub76892-0P900
main76892-0P010-J0i201009-201309
SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM),DK.BLUE MC.,8S6
sub76892-0P900
main76892-0P010-J0i201009-201309
SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM&*AFSL),DK.BLUE MC.,8S6
sub76892-0P900
main76892-0P010-J0i201009-201309
DK.BLUE MC.,8S6
sub76892-0P900
90178C0058
main90178-C0058
90178C0059
main90178-C0059
91673A0616
main91673-A0616

10 parts on this diagram · 2 diagrams in section

MUDGUARD & SPOILER — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
