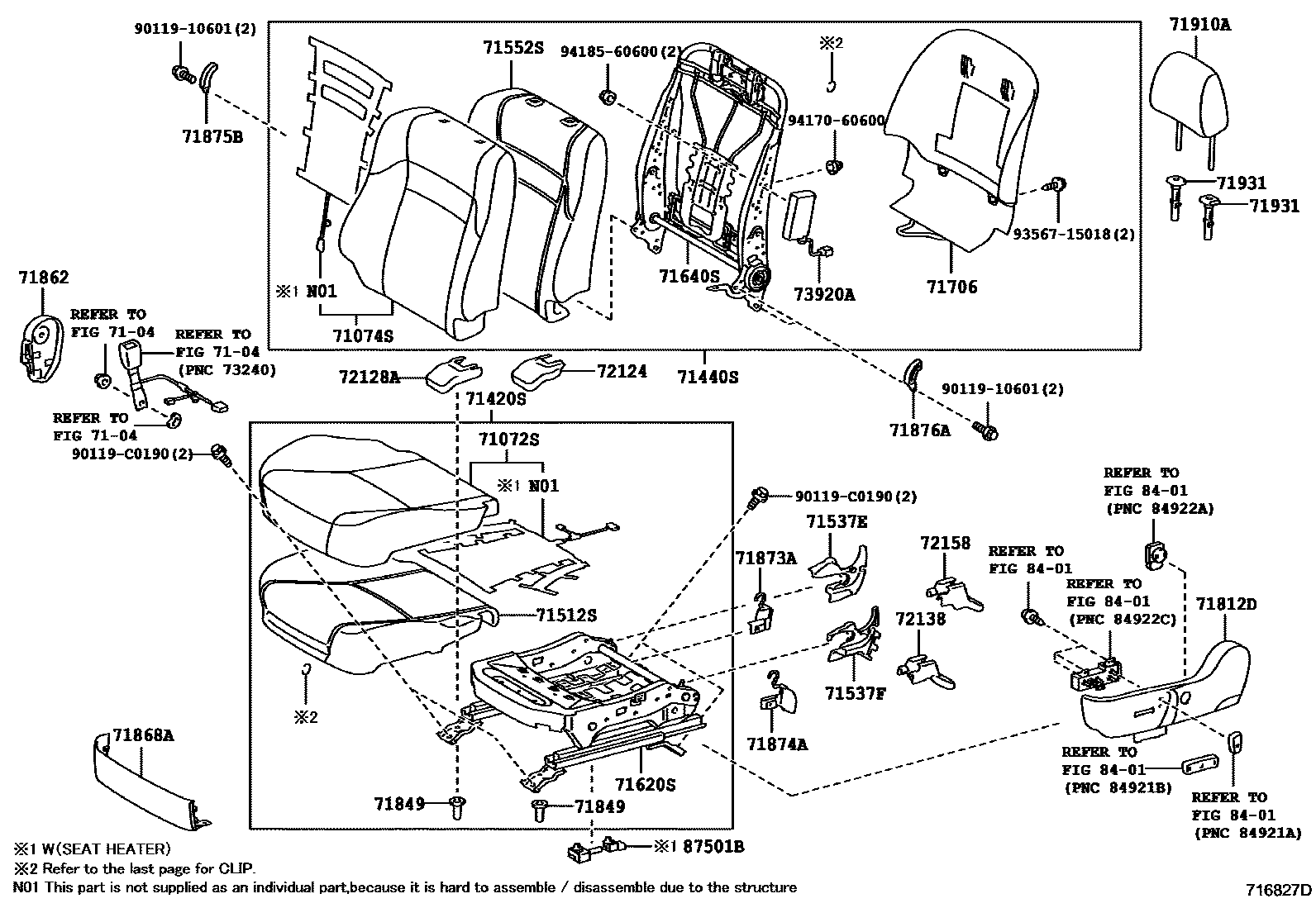

FRONT SEAT & SEAT TRACK

0001 1DRIVER SEAT 0002 1DRIVER SEAT 0003 1PASSENGER SEAT 0004 1PASSENGER SEAT 0005 1

7104

71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

main71072-0P060-A1iGRX132..30V201309-201709

IVORY BLACK,TRIM20

main71072-0P060-C1iGRX132..30V201309-201709

BITTER BLACK,TRIM24

main71072-0P121-A3iGRX13#..25S,25V201309-201709

IVORY BLACK,TRIM20

main71072-0P121-C3iGRX13#..25S,25V201309-201709

BITTER BLACK,TRIM24

main71072-0P130-A0iGRX131201009-201302

SPORT & WITH(*MR&*NS),SHELL,TRIM0#

main71072-0P130-C0iGRX131201009-201302

SPORT & WITH(*MR),BLACK,TRIM2#

main71072-0P131-A1supersedes 71072-0P121-A2iGRX131201303-201309

SPORT & WITH(*MR&*NS),SHELL,TRIM0#

main71072-0P131-C1supersedes 71072-0P121-C2iGRX131201303-201309

SPORT & WITH(*MR),BLACK,TRIM2#

main71072-0P050-A2iGRX132..25S201309-201709

WITH(*MR),IVORY,TRIM20

main71072-0P050-C2iGRX132..25S201309-201709

WITH(*MR & *NS),BITTER BLACK,TRIM24

main71072-0P110-A0supersedes 71072-0P100-A0iGRX132..30V201009-201309

SPORT & WITH(*MR),SHELL,TRIM0#

main71072-0P110-C0supersedes 71072-0P100-C0iGRX132..30V201009-201309

SPORT & WITH(*MR),BLACK,TRIM2#

71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71074-0P090-A2iGRX13#..25S,25V201309-201709

IVORY BLACK,TRIM20

main71074-0P090-C2iGRX13#..25S,25V201309-201709

BITTER BLACK,TRIM24

main71074-0P100-A0supersedes 71074-0P090-A0iGRX131201009-201309

SPORT & WITH(*MR&*NS),SHELL,TRIM0#

main71074-0P100-C0supersedes 71074-0P090-C0iGRX131201009-201309

SPORT & WITH(*MR),BLACK,TRIM2#

main71074-0P130-A1iGRX132..30V201309-201709

IVORY BLACK,TRIM20

main71074-0P130-C1iGRX132..30V201309-201709

BITTER BLACK,TRIM24

main71074-0P080-A0supersedes 71074-0P070-A0iGRX132..30V201009-201309

SPORT & WITH(*MR),SHELL,TRIM0#

main71074-0P080-C0supersedes 71074-0P070-C0iGRX132..30V201009-201309

SPORT & WITH(*MR),BLACK,TRIM2#

main71074-0P120-A2iGRX132..25S201309-201709

WITH(*MR),IVORY,TRIM20

main71074-0P120-C2iGRX132..25S201309-201709

WITH(*MR & *NS),BITTER BLACK,TRIM24

71420SCUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)

main71420-0P020-A0iGRX131201009-201303

SPORT & WITH(*MR&*NS),SHELL,TRIM0#

main71420-0P020-A1supersedes 71420-0P010-A1iGRX131201303-201309

SPORT & WITH(*MR&*NS),SHELL,TRIM0#

main71420-0P020-C0iGRX131201009-201303

SPORT & WITH(*MR),BLACK,TRIM2#

main71420-0P020-C1supersedes 71420-0P010-C3iGRX131201303-201309

SPORT & WITH(*MR),BLACK,TRIM2#

main71420-0P070-C2iGRX132..30V201309-201709

IVORY BLACK,TRIM20

main71420-0P070-C3iGRX132..30V201309-201709

BITTER BLACK,TRIM24

main71420-0P080-C2iGRX131201309-201609

IVORY BLACK,TRIM20

main71420-0P080-C3iGRX131201309-201609

BITTER BLACK,TRIM24

main71420-0P040-A0supersedes 71420-0P030-A0iGRX132..30V201009-201309

SPORT & WITH(*MR),SHELL,TRIM0#

main71420-0P040-C0supersedes 71420-0P030-C0iGRX132..30V201009-201309

SPORT & WITH(*MR),BLACK,TRIM2#

main71420-0P090-C2supersedes 71420-0P010-C4iGRX132..25S201309-201709

WITH(*MR),IVORY,TRIM20

main71420-0P090-C3supersedes 71420-0P010-C5iGRX132..25S201309-201709

WITH(*MR & *NS),BITTER BLACK,TRIM24

71440SBACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)

main71440-0P030-C5iGRX13#..25S,25V201309-201709

IVORY BLACK,TRIM20

main71440-0P030-C6iGRX13#..25S,25V201309-201709

BITTER BLACK,TRIM24

main71440-0P040-A2supersedes 71440-0P030-A2iGRX131201009-201309

SPORT & WITH(*MR&*NS),SHELL,TRIM0#

main71440-0P040-C2supersedes 71440-0P030-C2iGRX131201009-201309

SPORT & WITH(*MR),BLACK,TRIM2#

main71440-0P070-C2iGRX132..30V201309-201709

IVORY BLACK,TRIM20

main71440-0P070-C3iGRX132..30V201309-201709

BITTER BLACK,TRIM24

main71440-0P020-A2supersedes 71440-0P010-A2iGRX132..30V201009-201309

SPORT & WITH(*MR),SHELL,TRIM0#

main71440-0P020-C2supersedes 71440-0P010-C2iGRX132..30V201009-201309

SPORT & WITH(*MR),BLACK,TRIM2#

main71440-0P060-C4iGRX132..25S201309-201709

WITH(*MR),IVORY,TRIM20

main71440-0P060-C5iGRX132..25S201309-201709

WITH(*MR & *NS),BITTER BLACK,TRIM24

71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

main71512-0P040iGRX13#..25S,25V201309

main71512-0P050iGRX132..30V201309

71537EPROTECTOR, FRONT SEAT CUSHION, NO.1

main71537-0P030-A0iGRX13#201009-201309

SHELL,TRIM0#

main71537-0P030-C0iGRX13#201009-201309

BLACK,TRIM2#

71537FPROTECTOR, FRONT SEAT CUSHION, NO.2

main71538-0P030-A0iGRX13#201009-201309

SHELL,TRIM0#

main71538-0P030-C0iGRX13#201309-201709

BLACK,TRIM2#

71552SPAD, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71552-0P040iGRX13#..25S,25V201009-201309

main71552-0P050iGRX132..30V201009-201309

71620SSPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

main71620-0P050iGRX132..30V201309-201411

sub73214-75010

main71620-0P051iGRX132..30V201307-201309

main71620-0P060iGRX131201309-201411

SPORT & W(*MR)

sub73214-75010

main71620-0P061supersedes 71620-0P041iGRX131201307-201309

SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM&*AFSL)

71640SSPRING ASSY, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71640-0P030iGRX13#..25S,25V201309

main71640-0P040iGRX132..30V201009-201309

71706BOARD SUB-ASSY, FRONT SEATBACK, LH

main71706-0P030-A1iGRX13#201009-201309

SHELL,TRIM0#

main71706-0P030-A2iGRX13#201309-201709

BLACK,TRIM20

main71706-0P030-C1iGRX13#201309-201709

BLACK,TRIM24

71812DSHIELD, FRONT SEAT CUSHION, LH

main71812-0P040-A0iGRX13#..25S,25V201009-201309

SHELL,TRIM0#

main71812-0P040-C0iGRX13#..25S,25V201309-201709

BLACK,TRIM2#

main71812-0P050-A0iGRX132..30V201009-201309

SHELL,TRIM0#

main71812-0P050-C0iGRX132..30V201009-201309

BLACK,TRIM2#

71849CAP, SEAT ADJUSTER COVER, LH

main71848-33010×2iGRX13#201009-201309

71862SHIELD, FRONT SEAT CUSHION, INNER LH

main71862-0P020-A0iGRX13#..25S,25V201009-201309

SHELL,TRIM0#

main71862-0P020-C0iGRX13#..25S,25V201309-201709

BLACK,TRIM2#

main71862-0P030-A0iGRX132..30V201009-201309

SHELL,TRIM0#

main71862-0P030-C0iGRX132..30V201009-201309

BLACK,TRIM2#

71868ASHIELD, FRONT SEAT CUSHION, INNER NO.1 LH

main71868-0P020-A0iGRX13#..25S,25V201009-201309

SHELL,TRIM0#

main71868-0P020-C0iGRX13#..25S,25V201009-201309

BLACK,TRIM2#

71873ASHIELD, FRONT SEAT CUSHION, LOWER

main71873-0P060-C0iGRX13#..25S,25V201009-201309

BLACK,TRIM2#

main71873-0P070-C0iGRX132..30V201309-201709

BLACK

71874ASHIELD, FRONT SEAT CUSHION, LOWER LH

main71874-0P060-C0iGRX13#..25S,25V201009-201309

BLACK,TRIM2#

main71874-0P070-C0iGRX132..30V201009-201309

BLACK,TRIM2#

71875BCOVER, RECLINING ADJUSTER INSIDE, RH

main71875-0P070-A0iGRX13#..25S,25V201009-201309

SHELL,TRIM0#

main71875-0P070-C0iGRX13#..25S,25V201309-201709

BLACK,TRIM2#

main71875-0P090-A0iGRX132..30V201009-201309

SHELL,TRIM0#

main71875-0P090-C0iGRX132..30V201009-201309

BLACK,TRIM2#

71876COVER, RECLINING ADJUSTER INSIDE, LH

main71876-0P070-A0iGRX13#..25S,25V201009-201309

SHELL,TRIM0#

main71876-0P070-C0iGRX13#..25S,25V201309-201709

BLACK,TRIM2#

main71876-0P090-A0iGRX132..30V201009-201309

SHELL,TRIM0#

main71876-0P090-C0iGRX132..30V201009-201309

BLACK,TRIM2#

71876ACOVER, RECLINING ADJUSTER INSIDE, LH

main71876-0P070-A0iGRX13#..25S,25V201009-201309

SHELL,TRIM0#

main71876-0P070-C0iGRX13#..25S,25V201009-201309

BLACK,TRIM2#

main71876-0P090-A0iGRX132..30V201009-201309

SHELL,TRIM0#

main71876-0P090-C0iGRX132..30V201009-201309

BLACK,TRIM2#

71910AHEADREST ASSY, FRONT SEAT

main71910-0P060-A3×2iGRX13#..25S,25V201309-201411

IVORY BLACK,TRIM20

main71910-0P060-C3×2iGRX13#..25S,25V201309-201411

BITTER BLACK,TRIM24

main71910-0P061-A3×2iGRX13#..25S,25V201412-201709

IVORY BLACK,TRIM20

main71910-0P061-C3×2iGRX13#..25S,25V201412-201709

BITTER BLACK,TRIM24

main71910-0P070-A1×2supersedes 71910-0P060-A1iGRX131201009-201309

SPORT & WITH(*MR&*NS),SHELL,TRIM0#

main71910-0P070-C1×2supersedes 71910-0P060-C1iGRX131201009-201309

SPORT & WITH(*MR),BLACK,TRIM2#

main71910-0P090-A0×2iGRX132..30V201309-201411

IVORY BLACK,TRIM20

main71910-0P090-C0×2iGRX132..30V201309-201411

BITTER BLACK,TRIM24

main71910-0P091-A0×2iGRX132..30V201412-201709

IVORYBLACK,TRIM20

main71910-0P091-C0×2iGRX132..30V201412-201709

BITTER BLACK,TRIM24

main71910-0P050-A1×2supersedes 71910-0P040-A1iGRX132..30V201009-201309

SPORT & WITH(*MR),SHELL,TRIM0#

main71910-0P050-C1×2supersedes 71910-0P040-C1iGRX132..30V201009-201309

SPORT & WITH(*MR),BLACK,TRIM2#

main71910-0P080-A2×2iGRX132..25S201309-201411

WITH(*MR),IVORY BLACK,TRIM20

main71910-0P080-C2×2iGRX132..25S201309-201411

WITH(*MR & *NS),BITTER BLACK,TRIM24

main71910-0P081-A2×2iGRX132..25S201412-201709

WITH(*MR),IVORY BLACK,TRIM20

main71910-0P081-C2×2iGRX132..25S201412-201709

WITH(*MR & *NS),BITTER BLACK,TRIM24

71931SUPPORT, FRONT SEAT HEADREST

main71930-47020-A0×2iGRX13#201009-201309

W(LOCK),SHELL,TRIM0#

main71930-47020-A7×2iGRX13#201309-201709

W(LOCK),FLAXEN,TRIM20

main71930-47020-C0×2iGRX13#201009-201309

W(LOCK),BLACK,TRIM2#

main71931-47020-A0×2iGRX13#201009-201309

W/O(LOCK),SHELL,TRIM0#

main71931-47020-A7×2iGRX13#201309-201709

W/O(LOCK),FLAXEN,TRIM20

main71931-47020-C0×2iGRX13#201009-201309

W/O(LOCK),BLACK,TRIM2#

72124COVER, SEAT TRACK BRACKET, OUTER FRONT LH

main72124-0P030-A0iGRX13#201009-201309

SHELL,TRIM0#

main72124-0P030-C0iGRX13#201009-201309

BLACK,TRIM2#

72128ACOVER, SEAT TRACK BRACKET, INNER FRONT LH

main72128-0P020-A0iGRX13#201009-201309

SHELL,TRIM0#

main72128-0P020-C0iGRX13#201009-201309

BLACK,TRIM2#

72138COVER, SEAT TRACK, OUTER LH

main72138-0P030-A0iGRX13#201009-201309

SHELL,TRIM0#

main72138-0P030-C0iGRX13#201009-201309

BLACK,TRIM2#

72158COVER, SEAT TRACK BRACKET, INNER LH

main72158-0P030-A0iGRX13#201009-201309

SHELL,TRIM0#

main72158-0P030-C0iGRX13#201009-201309

BLACK,TRIM2#

main72158-0P032-C0iGRX13#201502-201709

BLACK,TRIM2#

73920AAIRBAG ASSY, FRONT SEAT, LH

main73920-0P010iGRX13#201009-201309

8401

87501BCONTROL SUB-ASSY, SEAT HEATER, LH

main87501-0P010iGRX13#..25S,25V201009-201202

main87501-0P020iGRX13#..25S,25V201203-201309

main87501-0P021iGRX13#..25S,25V201410

9011910601

main90119-10601

90119C0190

main90119-C0190

9356715018

main93567-15018

9417060600

main94170-60600

9418560600

main94185-60600

35 parts on this diagram · 5 diagrams in section
