PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT

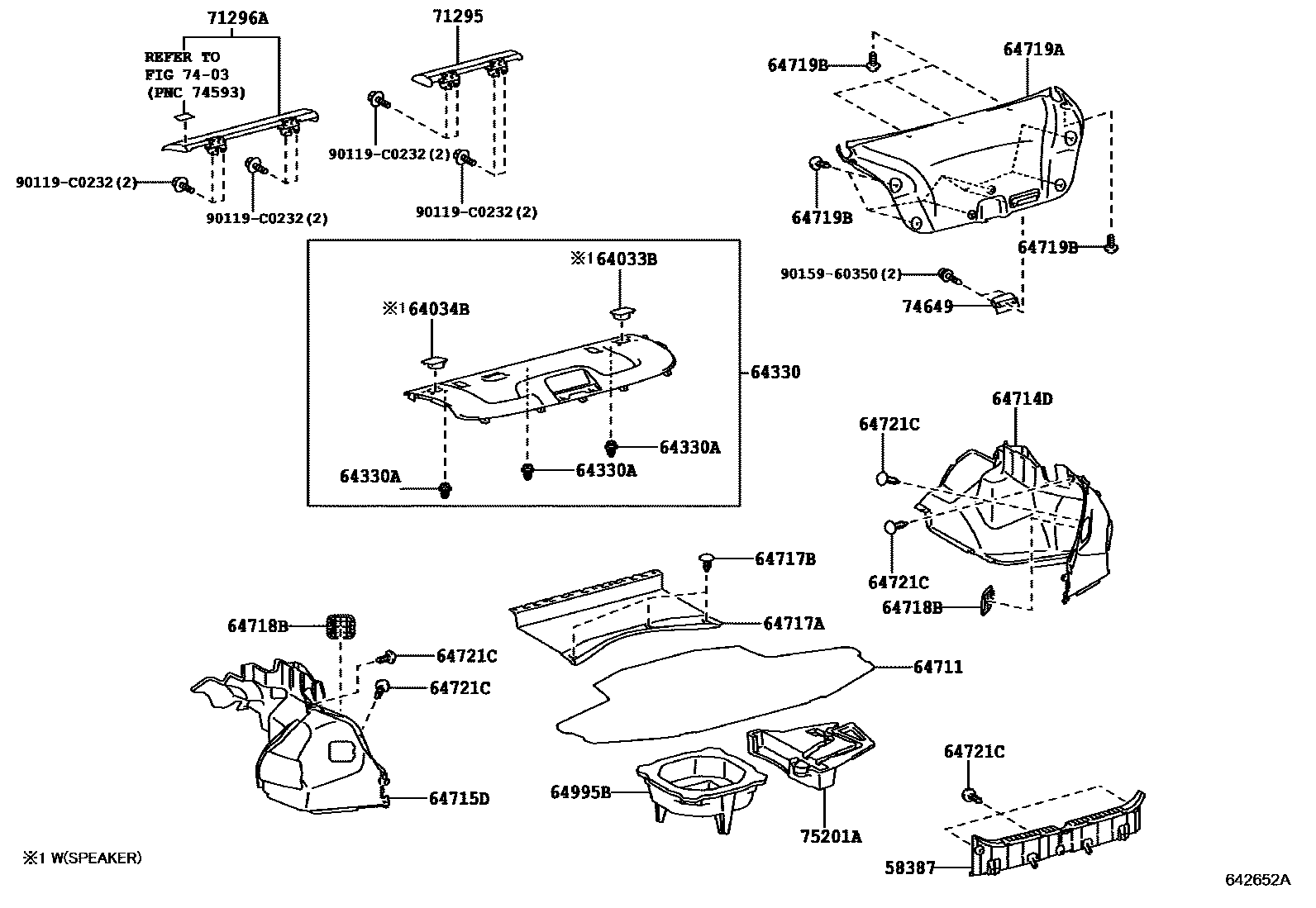

Parts diagram

58387PLATE, REAR FLOOR FINISH

main58387-0P020-C0i201009-201309

BLACK,TRIM0#,2#

main58387-0P020-C0i201309-201511

BLACK,TRIM2#

main58387-0P021-C0i201512-201709

BLACK,TRIM2#

64033BGRILLE SUB-ASSY, REAR SPEAKER, RH

main64033-22150-C0i201309-201609

BLACK,TRIM2#

64034BGRILLE SUB-ASSY, REAR SPEAKER, LH

main64034-22050-C0i201309-201609

BLACK,TRIM2#

64330PANEL ASSY, PACKAGE TRAY TRIM

main64330-0P070-A1i201009-201309

SHELL,TRIM0#

main64330-0P070-C1i201009-201309

BLACK,TRIM2#

main64330-0P090-C0i201309-201511

BLACK,TRIM2#

main64330-0P091-C0i201512-201709

BLACK,TRIM2#

main64330-0P100-C0i201309-201511

WITH(*MR & *NS),BLACK,TRIM2#

main64330-0P100-C0i201309-201511

BLACK,TRIM2#

main64330-0P100-C0i201309-201511

SPORT & W(*MR & *NS),BLACK,TRIM2#

main64330-0P101i201512-201609

64330ACLIP(FOR PACKAGE TRAY TRIM PANEL)

main90467-10161i201009-201309

64711MAT, LUGGAGE COMPARTMENT FLOOR

main64711-0P020-C2i201009-201309

BLACK,TRIM0#,2#

main64711-0P020-C2i201309-201511

BLACK,TRIM2#

main64711-0P021-C0i201512-201609

BLACK,TRIM2#

main64711-0P021-C2i201512-201709

BLACK,TRIM2#

64714DCOVER, LUGGAGE COMPARTMENT TRIM, SIDE, RH

main64714-0P020-C1i201009-201309

BLACK,TRIM0#,2#

main64714-0P020-C1i201309-201511

BLACK,TRIM2#

main64714-0P021-C1i201512-201709

BLACK,TRIM2#

64715DCOVER, LUGGAGE COMPARTMENT TRIM, SIDE, LH

main64715-0P020-C1i201009-201309

BLACK,TRIM0#,2#

main64715-0P020-C1i201309-201511

BLACK,TRIM2#

main64715-0P021-C1i201512-201709

BLACK,TRIM2#

64717ACOVER, LUGGAGE COMPARTMENT TRIM, FRONT

main64717-0P010-C1i201009-201309

BLACK,TRIM0#,2#

main64717-0P010-C1i201309-201511

BLACK,TRIM2#

main64717-0P011-C1i201512-201709

BLACK,TRIM2#

64717BCLIP(FOR LUGGAGE COMPARTMENT TRIM FRONT COVER)

main90467-08186-C0i201009-201309

BLACK,TRIM0#,2#

main90467-08186-C0i201309-201610

BLACK,TRIM2#

main90467-08186-C3i201610-201707

BLACK,TRIM2#

main90467-C0045-C0i201708-201709

BLACK,TRIM2#

64718BCOVER, LUGGAGE TRIM SERVICE HOLE

main64718-33010i201009-201709

64719ACOVER, LUGGAGE COMPARTMENT DOOR

main64719-0P020-C1i201009-201309

BLACK,TRIM0#,2#

main64719-0P020-C1i201309-201511

BLACK,TRIM2#

main64719-0P021-C1i201512-201709

BLACK,TRIM2#

64719BCLIP(FOR LUGGAGE COMPARTMENT DOOR)

main90467-08186-C0i201009-201309

BLACK,TRIM0#,2#

main90467-08186-C0i201309-201610

BLACK,TRIM2#

main90467-08186-C3i201610-201707

BLACK,TRIM2#

main90467-C0045-C0i201708-201709

BLACK,TRIM2#

64721CCLIP(LUGGAGE COMPARTMENT)

main90467-08186-C0i201009-201309

BLACK,TRIM0#,2#

main90467-08186-C0i201309-201610

BLACK,TRIM2#

main90467-08186-C3i201610-201707

BLACK,TRIM2#

main90467-C0045-C0i201708-201709

BLACK,TRIM2#

64995BBOX, DECK FLOOR, RH

main64995-0P010-C0i201009-201309

BLACK,TRIM0#,2#

main64995-0P010-C0i201309-201605

BLACK,TRIM2#

main64995-0P011-C0i201606-201709

BLACK,TRIM2#

71295PLATE, REAR SEATBACK, UPPER RH

main71295-0P010-A1i201009-201309

SHELL,TRIM0#

main71295-0P010-C0i201009-201511

BLACK,TRIM2#

main71295-0P011-C0i201512-201709

BLACK,TRIM2#

71296APLATE, REAR SEATBACK, UPPER LH

main71296-0P010-A1i201009-201309

SHELL,TRIM0#

main71296-0P010-C0i201009-201511

BLACK,TRIM2#

main71296-0P011-C0i201512-201709

BLACK,TRIM2#

7403CAUTION PLATE (EXTERIOR & INTERIOR)

→ Go to FIG 74-03

74649GRIP, LUGGAGE COMPARTMENT DOOR ASSIST

main74649-51010-C0i201009-201309

BLACK,TRIM0#,2#

main74649-51010-C0i201309-201702

BLACK,TRIM2#

main74649-51010-C3i201702-201709

BLACK,TRIM2#

75201ABOX, TOOL

main75201-0P020-C0i201009-201309

BLACK,TRIM0#,2#

main75201-0P020-C0i201309-201605

BLACK,TRIM2#

main75201-0P021-C0i201606-201709

BLACK,TRIM2#

90119C0232

main90119-C0232

9015960350

main90159-60350

22 parts on this diagram · 1 diagram in section
