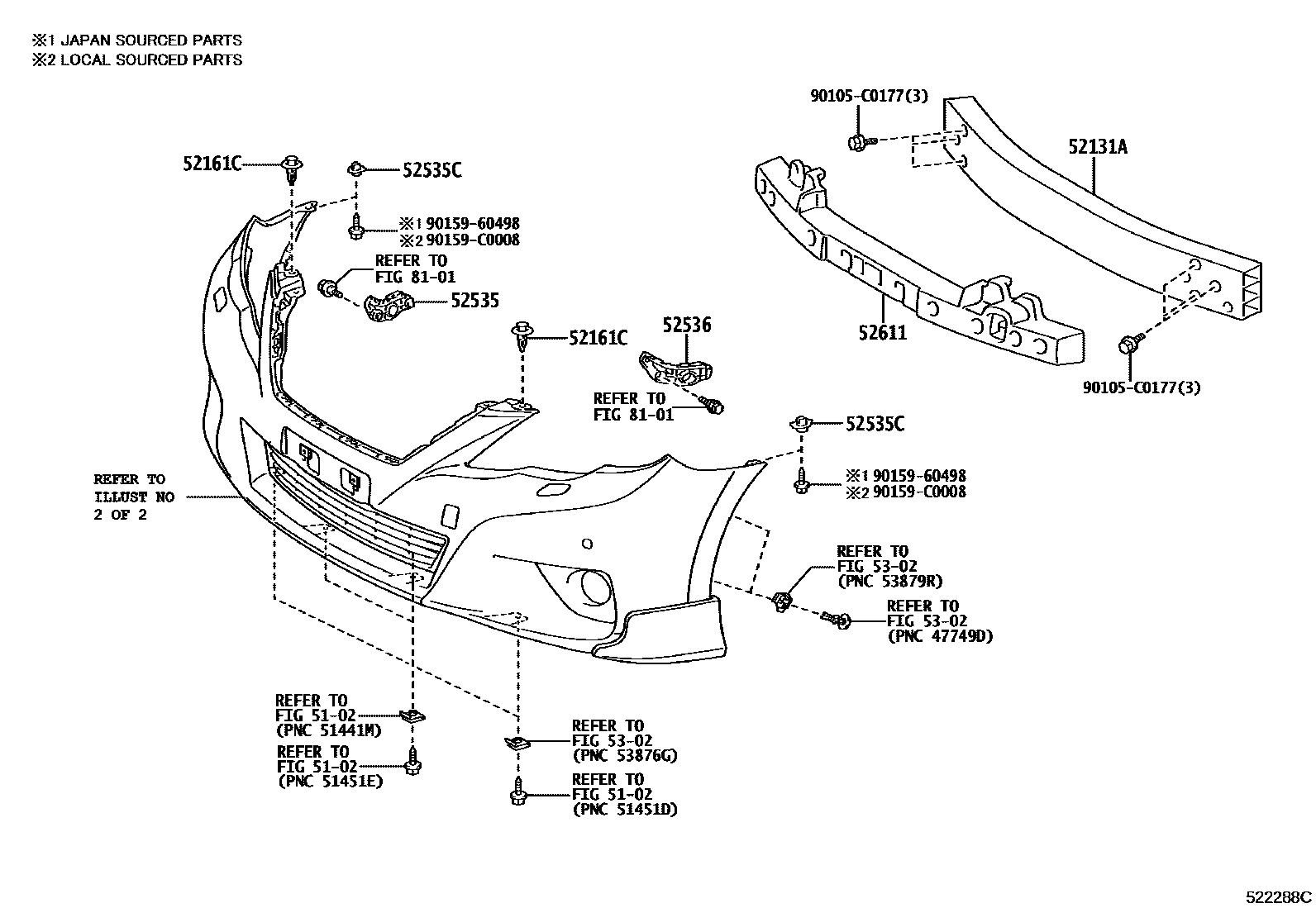

FRONT BUMPER & BUMPER STAY

0001 1W(FRONT SPOILER) 0002 1W(FRONT SPOILER) 0003 1W/O(FRONT SPOILER) 0004 1W/O(FRONT SPOILER) 0005 1 0006 1

5102

52131AREINFORCEMENT, FRONT BUMPER

main52131-0P010iGRX13#201009-201309

52161CPIECE, FRONT BUMPER

main52161-02040iGRX132201505

(L)

main52161-16010iGRX132201009-201609

sub52161-0K040

main52161-16010iGRX132201505

(J)

sub52161-0K040

52535RETAINER, FRONT BUMPER SIDE, RH

main52535-0P020iGRX13#201009-201309

52535CRETAINER, FRONT BUMPER SIDE

main52535-0N040iGRX13#201110-201309

main52535-50060iGRX13#201009-201109

52536RETAINER, FRONT BUMPER SIDE, LH

main52536-0P020iGRX13#201009-201309

52611ABSORBER, FRONT BUMPER ENERGY

main52611-0P020iGRX13#201009-201309

main52611-0P030iGRX13#201309

5302

8101

90105C0177

main90105-C0177

9015960498

main90159-60498

90159C0008

main90159-C0008

12 parts on this diagram · 6 diagrams in section
