SPEAKER

86150SPEAKER ASSY, W/BOX, NO.1

main86150-21010iGRX121200710

EMV & NAVIGATION SYSTEM-WITH(DVD)

86160SPEAKER ASSY, FRONT NO.1

main86160-0P010×2iGRX122200710

main86160-0P060×2iGRX121200710

EMV & NAVIGATION SYSTEM-WITH(DVD)

86160BSPEAKER ASSY, REAR

main86160-0P040×2iGRX122200710

main86160-0P080×2iGRX121200710

EMV & NAVIGATION SYSTEM-WITH(DVD)

86160PSPEAKER ASSY, FRONT NO.2

main86160-0P020iGRX12#200510-200710

RH

main86160-0P030iGRX12#200510-200710

LH

main86160-0P050iGRX121200710

RH

main86160-0P070iGRX121200710

LH

86160YSPEAKER ASSY, REAR NO.2

main86160-0P090×2iGRX121200710

EMV & NAVIGATION SYSTEM-WITH(DVD)

86161DBRACKET, SPEAKER MOUNTING, NO.1

main86161-22020iGRX121200710

EMV & NAVIGATION SYSTEM-WITH(DVD)

86168COVER, SPEAKER MOUNTING

main86168-0P010-A0iGRX121200710-201009

EMV & NAVIGATION SYSTEM-WITH(DVD),IVORY,TRIM0#

main86168-0P010-C0iGRX121200710-201009

BLACK,TRIM2#

86168ACOVER, SPEAKER MOUNTING, NO.2

main86168-0P020-A0iGRX121200710-201009

IVORY,TRIM0#

main86168-0P020-C0iGRX121200710-201009

BLACK,TRIM2#

90105C0136

main90105-C0136

9011906915

main90119-06915

90153C0001

main90153-C0001

90159C0006

main90159-C0006

90178C0031

main90178-C0031

9018906227

main90189-06227

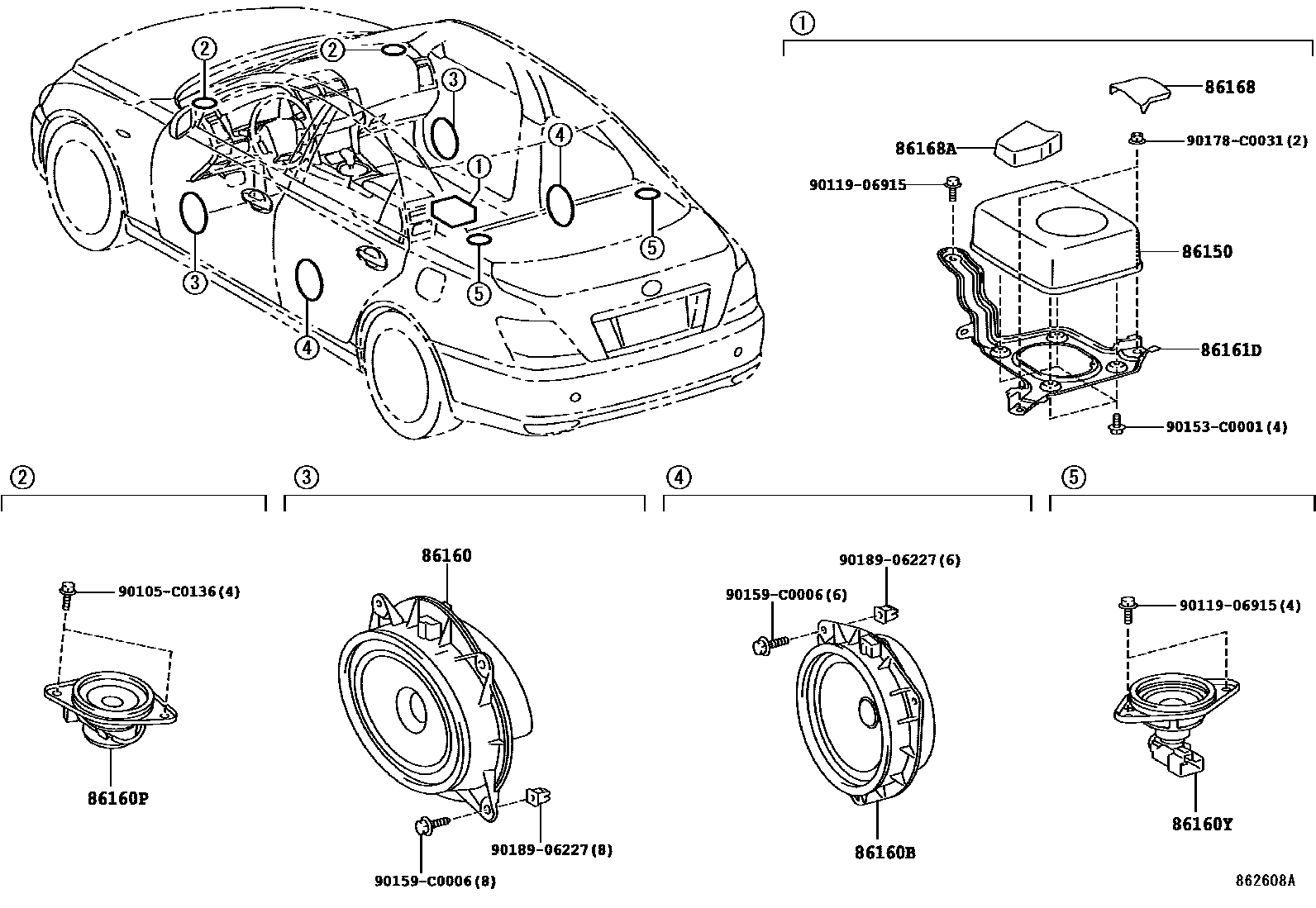

14 parts on this diagram · 1 diagram in section
