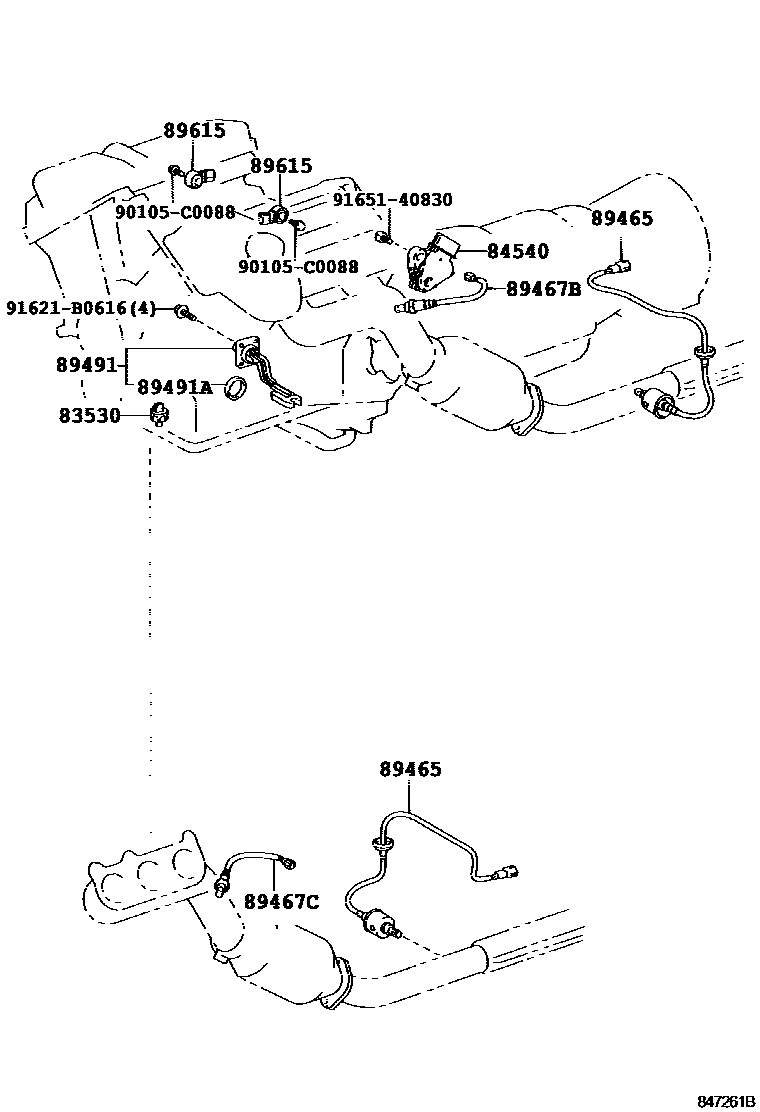

SWITCH & RELAY & COMPUTER

0001 1ENGINE & TRANSMISSION 0002 1ENGINE ROOM 0003 1ENGINE ROOM RELAY BLOCK 0004 1COWL 0005 1INSTRUMENT PANEL 1/2 0006 1INSTRUMENT PANEL 2/2 0007 1IGNITION & COMBINATION SWITCH0008 1SEAT 0009 1DOOR,ROOF,FLOOR & LUGGAGE

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-28020iGRX12#200710

DENSO

main83530-60020iGRX12#200510-200710

YAZAKI

84540SWITCH ASSY, NEUTRAL START

main84540-30320iGRX121200710-201009

main84540-71010iGRX122200510-200710

89465SENSOR, OXYGEN

main89465-0N040×2iGRX12#200510-200710

main89465-0P010×2iGRX12#200710

89467BSENSOR, AIR FUEL RATIO

main89467-22020iGRX122200706-200710

main89467-30010iGRX122200510-200706

main89467-30030iGRX12#200710

89467CSENSOR, AIR FUEL RATIO, NO.2

main89467-22020iGRX122200706-200710

main89467-30010iGRX122200510-200706

main89467-30030iGRX122200710

main89467-30040iGRX121200710

89491SENSOR, ENGINE OIL LEVEL

main89491-30060iGRX12#200510-200710

sub89491-30061

89491AGASKET, ENGINE OIL LEVEL SENSOR

main89493-60010iGRX12#200710

89615SENSOR, KNOCK CONTROL

main89615-20090×2iGRX12#200710

90105C0088

main90105-C0088

91621B0616

main91621-B0616

9165140830

main91651-40830

11 parts on this diagram · 9 diagrams in section
