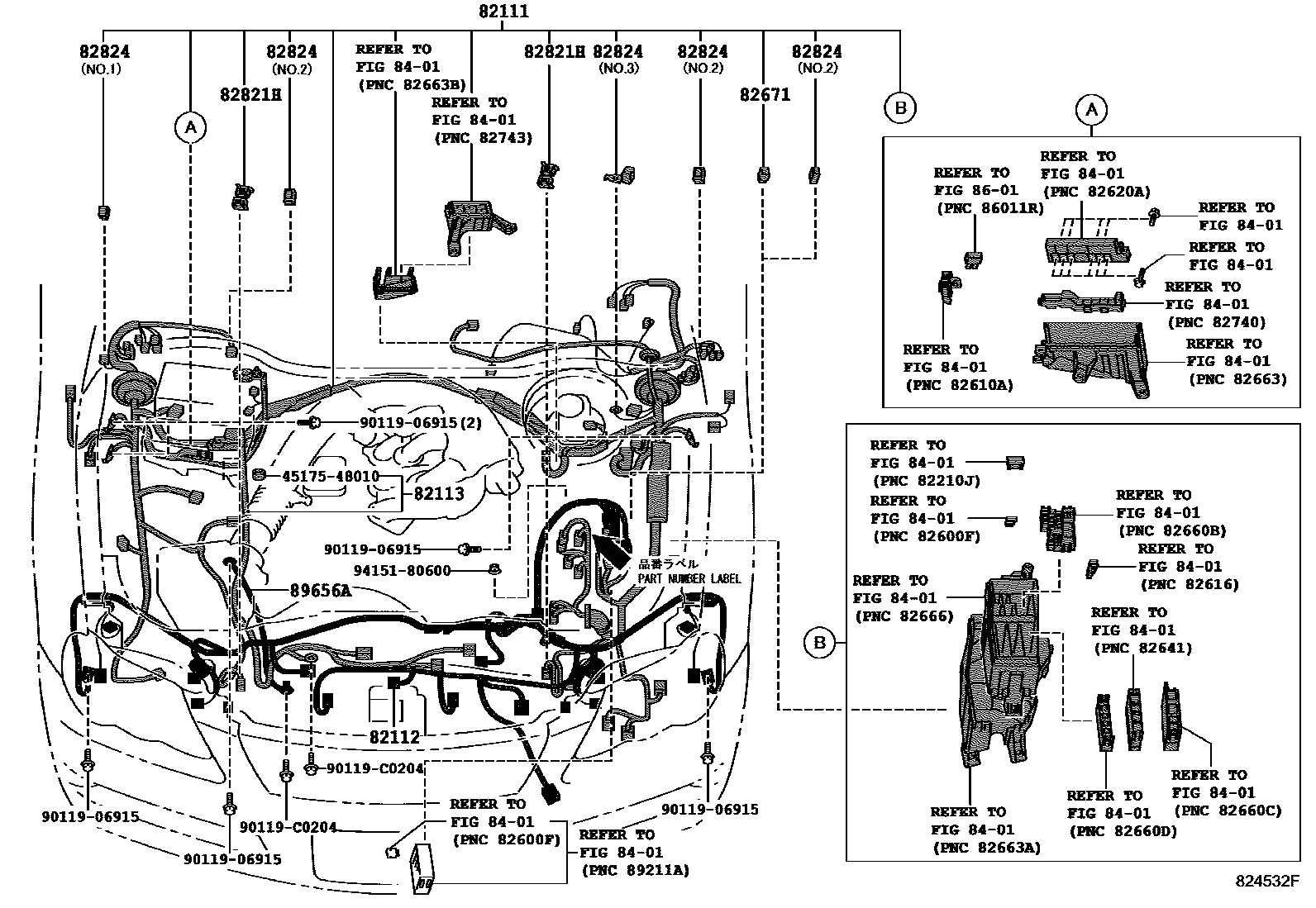

82111WIRE, ENGINE ROOM MAIN

main82111-0P020iGRX121200510-200608

main82111-0P021iGRX121200609-200710

main82111-0P022iGRX121200710-201009

main82111-0P030iGRX122..25V200510-200608

2.5S SPECIAL VERSION

main82111-0P031iGRX122..25V200609-200611

sub82111-0P070

main82111-0P040iGRX122..25V200611-200710

2.5S SPECIAL VERSION&VEHICLE STABILITY CONT-WITH

main82111-0P041iGRX122..25V200710-201009

82112WIRE, ENGINE ROOM, NO.2

main82112-0P010iGRX122200510-200710

main82112-0P020iGRX121200710

82113WIRE, ENGINE ROOM, NO.3

main82113-0N010iGRX12#200510-200710

82671BLOCK, JUNCTION

main82671-30350iGRX12#200510-200710

82821HCOVER, CONNECTOR

main82821-30650×2iGRX12#200510-200710

82824CONNECTOR, WIRING HARNESS

main82824-20110iGRX12#200510-200710

NO.1

main82824-28180×3iGRX12#200510-200710

NO.2

main82824-48020iGRX12#200510-200710

NO.3

8401

8601

89656AWIRE, POWER STEERING EARTH

main89656-30010iGRX12#200710

4517548010RING, CONTACT, NO.2

main45175-48010

9011906915

main90119-06915

90119C0204

main90119-C0204

9415180600

main94151-80600

13 parts on this diagram · 9 diagrams in section
