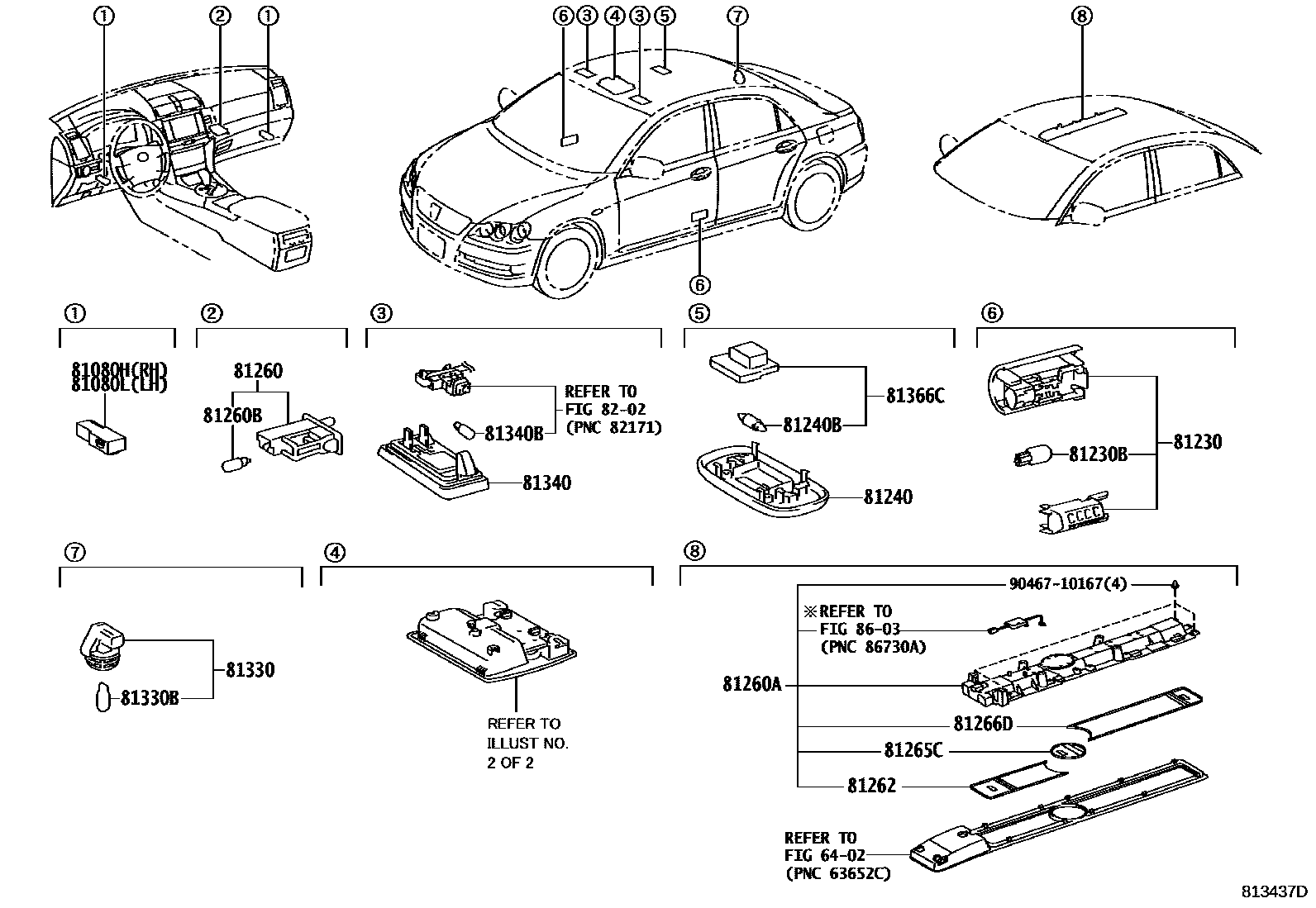

INTERIOR LAMP
6402
81080HLAMP ASSY, INTERIOR ILLUMINATION, NO.1 RH
81080LLAMP ASSY, INTERIOR ILLUMINATION, NO.1 LH
81230LAMP ASSY, COURTESY
sub81230-30200
81230BBULB(FOR COURTESY LAMP)
12V 5W
81240LAMP ASSY, ROOM, NO.1
ROOM LAMP-LARGE ILLUMINATED,IVORY,TRIM0#
ROOM LAMP-LARGE ILLUMINATED,LT.GRAY,TRIM2#
81240BBULB, ROOM LAMP, NO.1
12V 8W,ROOM LAMP-LARGE ILLUMINATED
81260LAMP ASSY, GLOVE BOX
81260ALAMP ASSY, MAP
IVORY,TRIM0#
LT.GRAY,TRIM2#
ROOM LAMP-LARGE ILLUMINATED&EMV & NAVIGATION SYSTEM-WITH(DVD NAVIGATION SYSTEM),IVORY,TRIM0#
ROOM LAMP-LARGE ILLUMINATED&EMV & NAVIGATION SYSTEM-WITH(DVD NAVIGATION SYSTEM),LT.GRAY,TRIM2#
ROOM LAMP-LARGE ILLUMINATED,IVORY,TRIM0#
ROOM LAMP-LARGE ILLUMINATED,LT.GRAY,TRIM2#
81260BBULB(FOR GLOVE BOX)
12V 1.2W W/O SOCKET
81262LENS, MAP LAMP
ROOM LAMP-LARGE ILLUMINATED
81265CLENS, MAP LAMP, NO.1
ROOM LAMP-LARGE ILLUMINATED
81266DLENS, MAP LAMP, NO.2
ROOM LAMP-LARGE ILLUMINATED
81330LAMP ASSY, LUGGAGE COMPARTMENT, NO.1
sub81330-0D040
81330BBULB, LUGGAGE COMPARTMENT LAMP
12V 3.8W
81340LAMP ASSY, VANITY
IVORY,TRIM0#
LT.GRAY,TRIM2#
81340BBULB (FOR VANITY LAMP)
12V 8W
81366CBASE, ROOM LAMP SWITCH
ROOM LAMP-LARGE ILLUMINATED
8202
8603
9046710167
main90467-10167
21 parts on this diagram · 2 diagrams in section
