FUEL TANK & TUBE

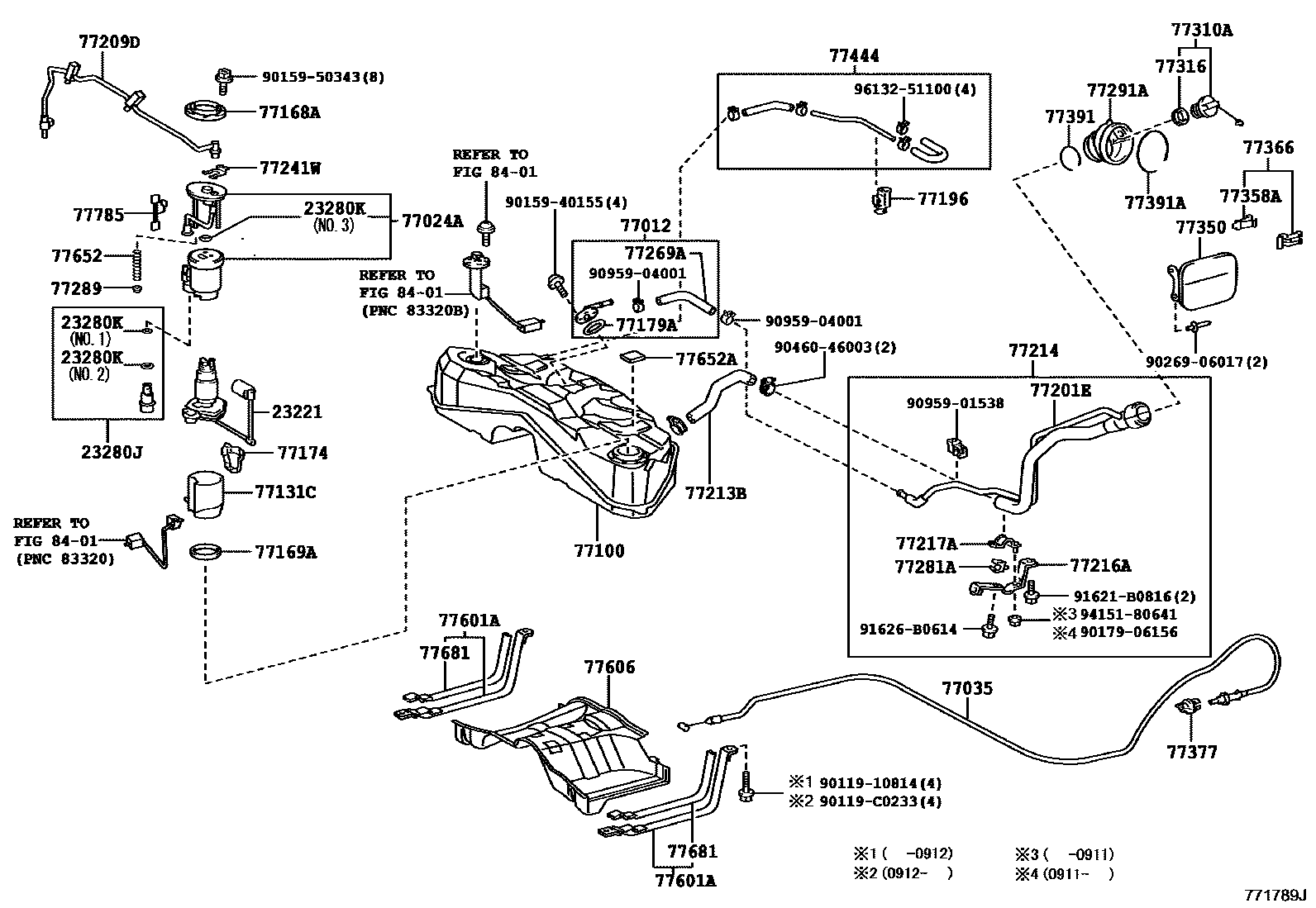

0001 1FUEL TANK 0002 1FUEL TUBE

23221PUMP, FUEL

main23220-0P020i3GRFE,5GRFE..GRX12#200510-200711

main23220-0P021i3GRFE,5GRFE..GRX12#200711-201009

23280JREGULATOR ASSY, FUEL PRESSURE

main23280-21010i3GRFE,5GRFE..GRX12#200510-201009

23280KRING, O(FOR FUEL PRESSURE REGULATOR)

main90301-04013i3GRFE,5GRFE..GRX12#200510-201009

NO.1

main90301-08020i3GRFE,5GRFE..GRX12#200510-201009

NO.3

main90301-15024i3GRFE,5GRFE..GRX12#200510-201009

NO.2

77012TUBE SUB-ASSY, FUEL TANK BREATHER

main77012-22030iGRX12#200510-200710

77024APLATE SUB-ASSY, FUEL SUCTION

main77024-0N010iGRX12#200510-200711

main77024-0N011iGRX12#200711

77035CABLE SUB-ASSY, FUEL LID LOCK CONTROL

main77035-0P010iGRX12#200510-200712

sub77035-0P011

main77035-0P011iGRX12#200801-201009

77100TANK ASSY, FUEL

main77001-0N010iGRX12#200510-200611

sub77001-0N011

main77001-0N011iGRX12#200611-200710

sub77001-0N012

77131CSUB-TANK, FUEL, NO.1

main77131-0N011iGRX12#200510-200902

sub77131-0N012

main77131-0N012iGRX12#200903

77168APLATE, FUEL TANK VENT TUBE SET

main77168-52020iGRX12#200510-200710

77169AGASKET, FUEL SUCTION TUBE SET

main77169-52010iGRX12#200510-200710

77174SUPPORT, FUEL SUCTION, NO.1

main77174-0N010iGRX12#200510-200711

main77174-0N011iGRX12#200711

77179AGASKET, FUEL TANK BREATHER TUBE

main77179-20040iGRX12#200510-200710

77196CLAMP, EVAPORATION VENT TUBE, NO.1

main77196-30050iGRX12#200510-200710

77201EPIPE SUB-ASSY, FUEL TANK FILLER

main77201-22390iGRX12#200510-200710

77209DTUBE SUB-ASSY, FUEL TANK MAIN

main77209-0N020iGRX12#200510-200710

77213BHOSE, FUEL TANK TO FILLER PIPE

main77213-22100iGRX12#200510-200710

77214PIPE, FUEL TANK FILLER

main77210-22070iGRX12#200510-200710

sub77210-22071

77216ASUPPORT, FUEL TANK FILLER PIPE, NO.1

main77216-30050iGRX12#200510-200710

sub77216-30051

77217ASUPPORT, FUEL TANK FILLER PIPE, NO.2

main77217-30130iGRX12#200510-200710

sub77217-30131

77241WCLIP, TUBE JOINT

main77241-33011iGRX12#201001

main77241-60320iGRX12#200510-200912

77269AHOSE, FUEL TANK BREATHER

main77269-22010iGRX12#200510-200710

77281ACLAMP, FUEL FILLER PIPE

main77281-50020iGRX12#200510-200710

77289HOLDER, FUEL TANK PIPE SETTING

main77289-52090iGRX12#200510-200710

77291ASHIELD, FUEL TANK FILLER PIPE

main77291-0P010iGRX12#200510-200710

77310ACAP ASSY, FUEL TANK

main77300-28010iGRX12#200510-200710

77316GASKET, FUEL TANK CAP

main77316-16010iGRX12#200510-200710

77350LID ASSY, FUEL FILLER OPENING

main77350-22210iGRX12#200510-200710

77358ASTOPPER, FUEL FILLER OPENING LID

main77358-30060iGRX12#200510-200710

77366SPRING, FUEL FILLER OPENING LID HINGE

main77360-30070iGRX12#200510-200710

77377RETAINER, FUEL FILLER OPENING LID LOCK

main77377-12050iGRX12#200510-200710

77391RING, FUEL INLET BOX

main77391-12020iGRX12#200510-200710

77391ARING, FUEL INLET BOX

main77391-30030iGRX12#200510-200710

77444HOSE, FUEL TANK VENT

main77404-0N010iGRX12#200510-200710

77601ABAND SUB-ASSY, FUEL TANK, NO.1

main77601-22110iGRX12#200510-200910

main77601-22120iGRX12#200911

77606PROTECTOR SUB-ASSY, FUEL TANK, NO.1

main77606-0N010iGRX12#200510-200710

77652CUSHION, FUEL TANK, NO.1

main77652-0N010iGRX12#200510-200710

77652ACUSHION, FUEL TANK, NO.2

main77652-12100iGRX12#200510-200710

77681SEAT, FUEL TANK BAND, RH

main77681-22020iGRX12#200510-200710

77785HARNESS, FUEL PUMP

main77785-0N010iGRX12#200510-200710

sub77785-0N011

8401

9011910814

main90119-10814

90119C0233

main90119-C0233

9015940155

main90159-40155

9015950343

main90159-50343

9017906156

main90179-06156

9026906017

main90269-06017

9046046003

main90460-46003

9095901538

main90959-01538

9095904001

main90959-04001

91621B0816

main91621-B0816

91626B0614

main91626-B0614

9415180641

main94151-80641

9613251100

main96132-51100

53 parts on this diagram · 2 diagrams in section
