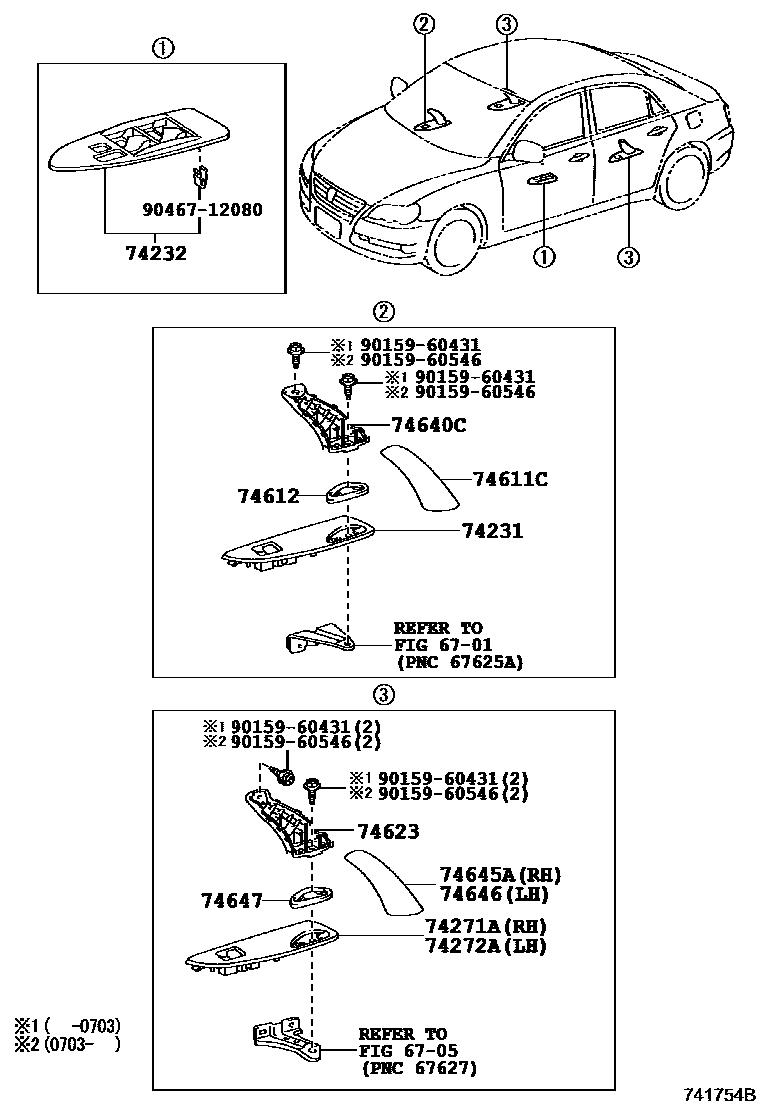

ARMREST & VISOR
6701
6705
74231PANEL, FRONT ARMREST BASE, UPPER RH
LT.BROWN,TRIM0#
DK.RED,TRIM0#,2#
DK.RED,TRIM2#
SPECIAL MOON ROOF VERSION,GRAY,TRIM2#
GRAY,TRIM2#
74232PANEL, FRONT ARMREST BASE, UPPER LH
LT.BROWN,TRIM0#
DK.RED,TRIM2#
DK.RED,TRIM0#,2#
SPECIAL MOON ROOF VERSION,GRAY,TRIM2#
GRAY,TRIM2#
74271APANEL, REAR DOOR ARMREST BASE, UPPER RH
LT.BROWN,TRIM0#
DK.RED,TRIM2#
DK.RED,TRIM0#,2#
GRAY,TRIM2#
SPECIAL MOON ROOF VERSION,GRAY,TRIM2#
74272APANEL, REAR DOOR ARMREST BASE, UPPER LH
LT.BROWN,TRIM0#
DK.RED,TRIM0#,2#
DK.RED,TRIM2#
GRAY,TRIM2#
SPECIAL MOON ROOF VERSION,GRAY,TRIM2#
74611CCOVER, ASSIST GRIP, LH
IVORY,TRIM0#
BLACK,TRIM2#
74612COVER, ASSIST GRIP
74623REINFORCEMENT, REAR ASSIST GRIP
IVORY,TRIM0#,RH
BLACK,TRIM2#,RH
IVORY,TRIM0#,LH
BLACK,TRIM2#,LH
74640CGRIP ASSY, DOOR ASSIST, LH
IVORY,TRIM0#
BLACK,TRIM2#
74645ACOVER, DOOR ASSIST GRIP, RH
IVORY,TRIM0#
BLACK,TRIM2#
74646COVER, DOOR ASSIST GRIP, LH
IVORY,TRIM0#
BLACK,TRIM2#
74647BASE, DOOR ASSIST GRIP
RH
LH
9015960431
9015960546
9046712080
16 parts on this diagram · 2 diagrams in section
