E
EPC Data

SEAT BELT & CHILD RESTRAINT SEAT

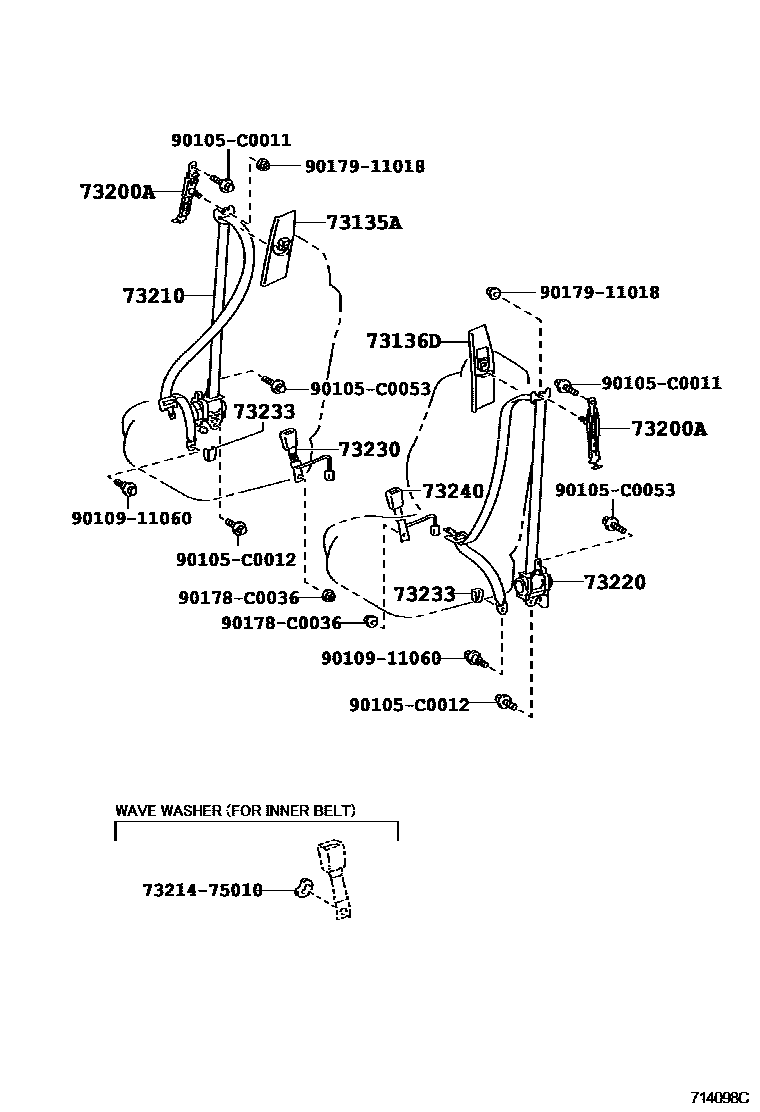

Parts diagram
73135ACOVER, SHOULDER BELT ANCHOR, RH
main73023-30010-A2i200510-201009
IVORY,TRIM0#
sub73023-30010
main73023-30010-B2i200510-201009
LT.GRAY,TRIM2#
sub73023-30010
73136DCOVER, SHOULDER BELT ANCHORAGE PLATE
main73024-30010-A2i200510-201009
IVORY,TRIM0#
sub73024-30010
main73024-30010-B2i200510-201009
LT.GRAY,TRIM2#
sub73024-30010
73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR
main73200-0N010i200510-200710
73210BELT ASSY, FRONT SEAT OUTER, RH
main73210-0P010-A0i200510-201009
IVORY,TRIM0#
sub73210-0P010
main73210-0P010-B0i200510-201009
LT.GRAY,TRIM2#
sub73210-0P010
73220BELT ASSY, FRONT SEAT OUTER, LH
main73220-0P010-A0i200510-201009
IVORY,TRIM0#
sub73220-0P010
main73220-0P010-B0i200510-201009
LT.GRAY,TRIM2#
sub73220-0P010
73230BELT ASSY, FRONT SEAT INNER, RH
main73230-0P010-A0i200510-201009
IVORY,TRIM0#
main73230-0P010-C0i200510-201009
BLACK,TRIM2#
main73230-0P020-A0i200510-201009
IVORY,TRIM0#
main73230-0P020-A0i200710-201009
SPORT PACKAGE,IVORY,TRIM0#
main73230-0P020-C0i200510-201009
BLACK,TRIM2#
main73230-0P020-C0i200710-201009
SPORT PACKAGE,BLACK,TRIM2#
73233COVER, LAP BELT OUTER ANCHOR
main73233-0P010-A0i200510-201009
IVORY,TRIM0#
main73233-0P010-C0i200510-201009
BLACK,TRIM2#
73240BELT ASSY, FRONT SEAT INNER, LH
main73240-0P010-A0i200510-201009
IVORY,TRIM0#
main73240-0P010-C0i200510-201009
BLACK,TRIM2#
main73240-0P020-A0i200510-201009
IVORY,TRIM0#
main73240-0P020-A0i200710-201009
SPORT PACKAGE,IVORY,TRIM0#
main73240-0P020-C0i200510-201009
BLACK,TRIM2#
main73240-0P020-C0i200710-201009
SPORT PACKAGE,BLACK,TRIM2#
7321475010PLATE, FRONT SEAT BELT ANCHOR
main73214-75010
90105C0011
main90105-C0011
90105C0012
main90105-C0012
90105C0053
main90105-C0053
9010911060
main90109-11060
90178C0036
main90178-C0036
9017911018
main90179-11018

15 parts on this diagram · 2 diagrams in section
