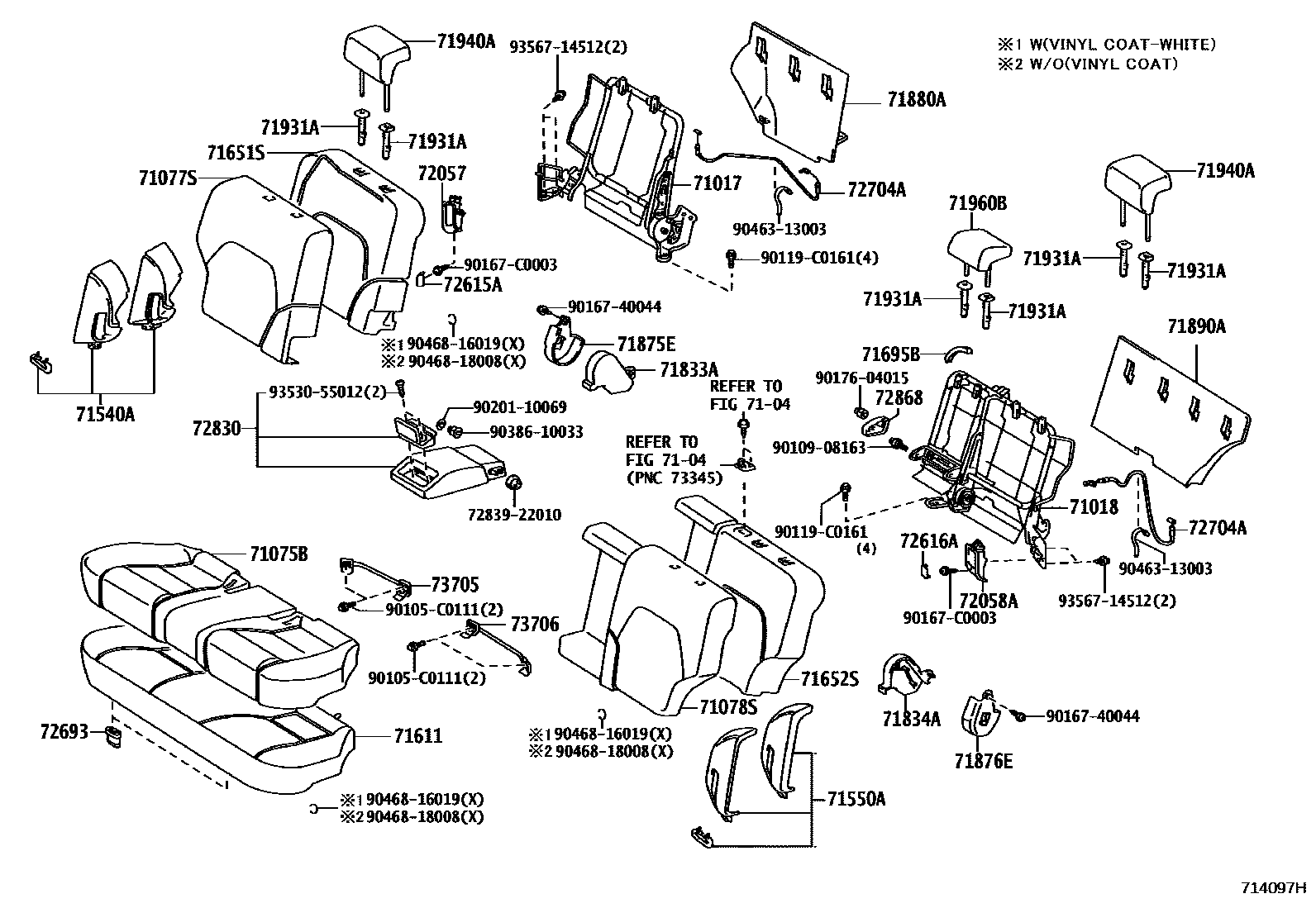

REAR SEAT & SEAT TRACK

71017FRAME SUB-ASSY, REAR SEATBACK, RH

main71017-0P010iGRX12#200510-200610

main71017-0P011iGRX12#200702-200710

71018FRAME SUB-ASSY, REAR SEATBACK, LH

main71018-0P010iGRX12#200510-200610

main71018-0P011iGRX12#200710

7104

71075BCOVER, REAR SEAT CUSHION (FOR BENCH TYPE)

main71075-0P010-A0iGRX12#..25V,30V200510-200610

NEW IVORY,TRIM0#

main71075-0P010-C0iGRX12#..25V,30V200510-200610

BLACK,TRIM2#

main71075-0P011-A0iGRX12#..25V,30V200611-200710

NEW IVORY,TRIM0#

main71075-0P011-C0iGRX12#..25V,30V200611-200710

BLACK,TRIM2#

main71075-0P030-A0supersedes 71075-0P040-A0iGRX12#..25V,30V200710-201009

SPORT PACKAGE,NEW IVORY,TRIM0#

main71075-0P030-C0supersedes 71075-0P040-C1iGRX12#..25V,30V200710-201009

BLACK,TRIM2#

71077SCOVER, REAR SEATBACK, RH (FOR SEPARATE TYPE)

main71077-0P010-A0iGRX12#..25V,30V200510-200710

NEW IVORY,TRIM0#

main71077-0P010-C0iGRX12#..25V,30V200510-200710

BLACK,TRIM2#

main71077-0P030-A0supersedes 71077-0P040-A0iGRX12#..25V,30V200710-201009

SPORT PACKAGE,NEW IVORY,TRIM0#

main71077-0P030-C0supersedes 71077-0P040-C1iGRX12#..25V,30V200710-201009

BLACK,TRIM2#

71078SCOVER, REAR SEATBACK, LH(FOR SEPARATE TYPE)

main71078-0P010-A0iGRX12#..25V,30V200510-200710

NEW IVORY,TRIM0#

main71078-0P010-C0iGRX12#..25V,30V200510-200710

BLACK,TRIM2#

main71078-0P030-A0supersedes 71078-0P040-A0iGRX12#..25V,30V200710-201009

SPORT PACKAGE,NEW IVORY,TRIM0#

main71078-0P030-C0supersedes 71078-0P040-C1iGRX122..25200710-201009

BLACK,TRIM2#

71540ABACK ASSY, REAR SIDE SEAT, RH

main71540-0P010-A1iGRX12#..25V,30V200510-200708

IVORY,TRIM0#

main71540-0P010-A2iGRX12#..25V,30V200708-200710

IVORY,TRIM0#

main71540-0P010-C1iGRX12#..25V,30V200510-200708

BLACK,TRIM2#

main71540-0P010-C2iGRX12#..25V,30V200708-200710

BLACK,TRIM2#

main71540-0P030-A1supersedes 71540-0P020-A3iGRX122..25V200710-201009

SPORT PACKAGE,IVORY,TRIM0#

main71540-0P030-C1supersedes 71540-0P020-C6iGRX12#..25V,30V200710-201009

BLACK,TRIM2#

71550ABACK ASSY, REAR SIDE SEAT, LH

main71550-0P010-A1iGRX12#..25V,30V200510-200708

IVORY,TRIM0#

main71550-0P010-A2iGRX12#..25V,30V200708-200710

IVORY,TRIM0#

main71550-0P010-C1iGRX12#..25V,30V200510-200708

BLACK,TRIM2#

main71550-0P010-C2iGRX12#..25V,30V200708-200710

BLACK,TRIM2#

main71550-0P040-A1supersedes 71550-0P020-A3iGRX122..25V200710-201009

SPORT PACKAGE,IVORY,TRIM0#

main71550-0P040-C1supersedes 71550-0P020-C6iGRX12#..25V,30V200710-201009

BLACK,TRIM2#

71611PAD, REAR SEAT CUSHION

main71503-0P010iGRX12#200510-200710

71651SPAD, REAR SEATBACK, RH(FOR SEPARATE TYPE)

main71651-0P010iGRX12#200510-200710

71652SPAD, REAR SEATBACK, LH(FOR SEPARATE TYPE)

main71652-0P010iGRX12#200510-200710

71695BPROTECTOR, REAR SEAT, NO.1 LH

main71695-22020iGRX12#200510-200710

71833ACOVER, REAR SEAT RECLINING, NO.1 RH

main71833-0P010-A0iGRX12#200510-200710

IVORY,TRIM0#

main71833-0P010-C0iGRX12#200710-201009

BLACK,TRIM2#

71834ACOVER, REAR SEAT RECLINING, NO.1 LH

main71834-0P010-A0iGRX12#200510-200710

IVORY,TRIM0#

main71834-0P010-C0iGRX12#200710-201009

BLACK,TRIM2#

71875ECOVER, RECLINING ADJUSTER INSIDE, RH

main71875-0P010iGRX12#200710

71876ECOVER, RECLINING ADJUSTER INSIDE, LH

main71876-0P010iGRX12#200510-200710

71880ACARPET ASSY, REAR SEATBACK BOARD, RH

main71880-0P010-C1iGRX12#200510-200610

BLACK,TRIM0#,2#

main71880-0P011-C1iGRX12#200611-200710

BLACK,TRIM0#,2#

71890ACARPET ASSY, REAR SEATBACK BOARD, LH

main71890-0P010-C1iGRX12#200510-200610

BLACK,TRIM0#,2#

main71890-0P011-C1iGRX12#200611-200710

BLACK,TRIM0#,2#

71931ASUPPORT, REAR SEAT HEADREST

main71930-42020-A3×3iGRX12#200510-200710

W(LOCK)&W(BUTTON),IVORY,TRIM0#

sub71930-44020

main71930-42020-C0×3iGRX12#200510-200710

W(LOCK)&W(BUTTON),BLACK,TRIM2#

sub71930-44020

main71930-52030-A1×3iGRX122200710-201009

W(LOCK)&W(BUTTON),IVORY,TRIM0#

main71930-52030-C0×3iGRX12#200710-201009

W(LOCK)&W(BUTTON),BLACK,TRIM2#

main71931-42020-A3×3iGRX12#200510-200710

W(LOCK)&W/O(BUTTON),IVORY,TRIM0#

main71931-42020-C0×3iGRX12#200510-200710

W(LOCK)&W/O(BUTTON),BLACK,TRIM2#

71940AHEADREST ASSY, REAR SEAT

main71940-0P020-A0×2supersedes 71940-0P030-A0iGRX12#..25V,30V200510-200710

NEW IVORY,TRIM0#

main71940-0P020-C0×2supersedes 71940-0P030-C0iGRX122..25200710-201009

BLACK,TRIM2#

71960BHEADREST ASSY, REAR SEAT, CENTER

main71960-0P020-A0supersedes 71960-0P010-A1iGRX122..25200710-201009

SPORT PACKAGE,NEW IVORY,TRIM0#

main71960-0P020-C0supersedes 71960-0P010-C1iGRX12#..25V,30V200710-201009

BLACK,TRIM2#

72057LEVER SUB-ASSY, REAR SEAT LOCK CONTROL, RH

main72057-0P010-A0iGRX12#200510-200710

IVORY,TRIM0#

main72057-0P010-C0iGRX12#200510-200710

BLACK,TRIM2#

72058ALEVER SUB-ASSY, REAR SEAT LOCK CONTROL, LH

main72058-0P010-A0iGRX12#200510-200710

IVORY,TRIM0#

main72058-0P010-C0iGRX12#200510-200710

BLACK,TRIM2#

72615ACOVER, REAR SEATBACK LOCK STRIKER, RH

main72615-0P010-A0iGRX12#200510-200710

IVORY,TRIM0#

main72615-0P010-C0iGRX12#200710-201009

BLACK,TRIM2#

72616ACOVER, REAR SEATBACK LOCK STRIKER, LH

main72615-0P010-A0iGRX12#200710-201009

IVORY,TRIM0#

main72615-0P010-C0iGRX12#200710-201009

BLACK,TRIM2#

72693HOOK, REAR SEAT CUSHION LOCK

main72693-12080×2iGRX12#200510-200710

72704ACABLE, REAR SEAT RECLINING CONTROL

main72704-0P010×2iGRX12#200510-200610

72830ARMREST ASSY, REAR SEAT, CENTER

main72830-0P020-A1iGRX12#..25V,30V200510-200710

IVORY,TRIM0#

main72830-0P020-C1iGRX12#..25V,30V200510-200710

BLACK,TRIM2#

main72830-0P021-A0supersedes 72830-0P011-A0iGRX122..25V200710-201009

SPORT PACKAGE,IVORY,TRIM0#

main72830-0P021-C0supersedes 72830-0P011-C0iGRX122..25200710-201009

BLACK,TRIM2#

72868COVER, CENTER ARMREST HINGE, RH

main72868-0P010-A0iGRX12#200710-201009

IVORY,TRIM0#

main72868-0P010-C0iGRX12#200510-200710

BLACK,TRIM2#

73705BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, RH

main73705-30030iGRX12#200710

73706BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, LH

main73706-30030iGRX12#200710

7283922010SHIM, REAR SEAT ARMREST HINGE

main72839-22010

90105C0111

main90105-C0111

9010908163

main90109-08163

90119C0161

main90119-C0161

9016740044

main90167-40044

90167C0003

main90167-C0003

9017604015

main90176-04015

9020110069

main90201-10069

9038610033

main90386-10033

9046313003

main90463-13003

9046816019

main90468-16019

9046818008

main90468-18008

9353055012

main93530-55012

9356714512

main93567-14512

45 parts on this diagram · 1 diagram in section
