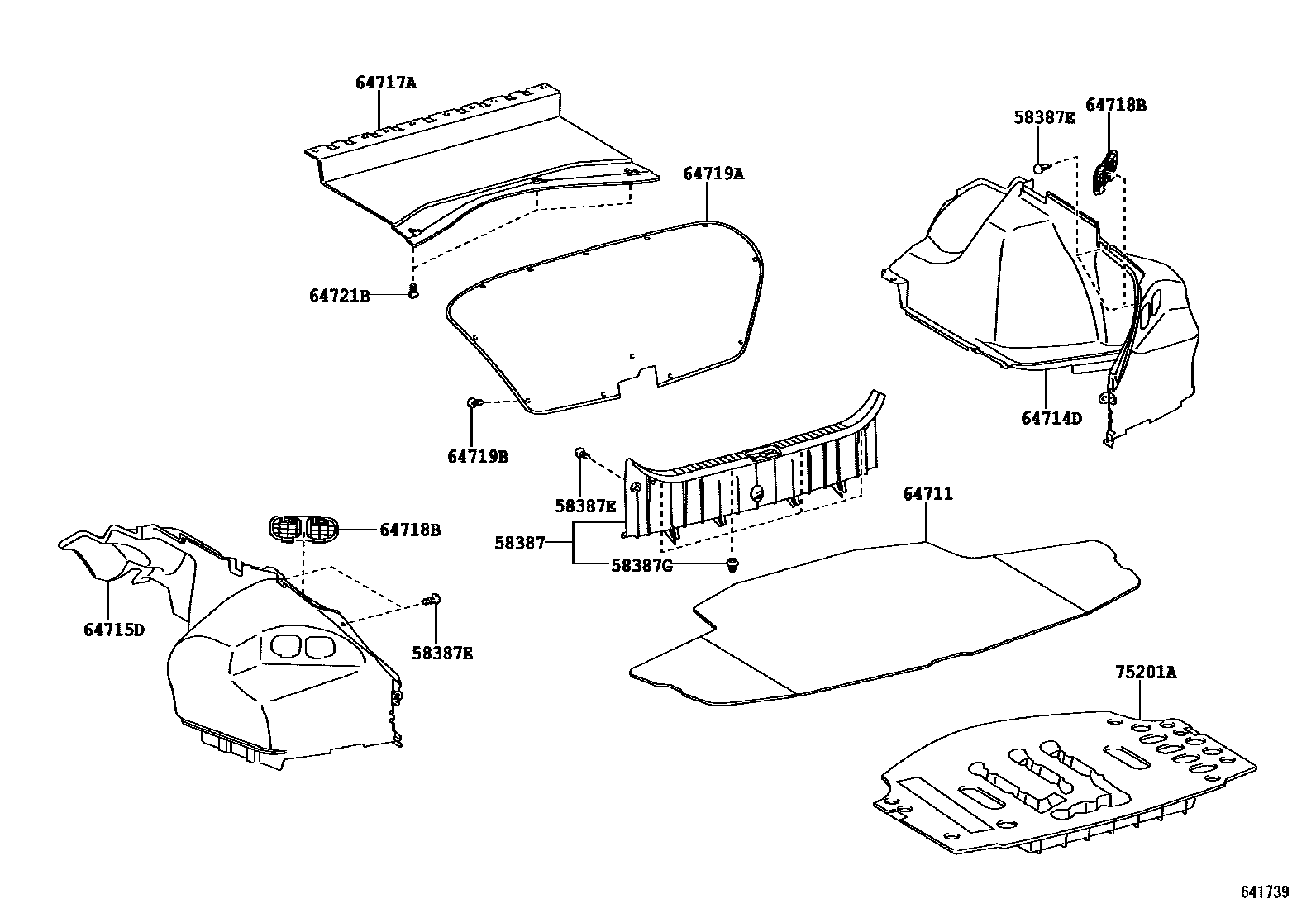

PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT

0001 1 0002 1

58387PLATE, REAR FLOOR FINISH

main58387-0P010-C0iGRX12#200510-201009

BLACK,TRIM0#,2#

sub58387-0P011

58387ECLIP(FOR REAR FLOOR FINISH PLATE)

main90467-08186-C0iGRX12#200510-201009

BLACK,TRIM0#,2#

sub90467-08186

58387GCLIP(FOR REAR FLOOR FINISH PLATE)

main90467-10161iGRX12#200510-200710

64711MAT, LUGGAGE COMPARTMENT FLOOR

main64711-22370-C0iGRX12#200510-201009

BLACK,TRIM0#,2#

sub64711-22371

64714DCOVER, LUGGAGE COMPARTMENT TRIM, SIDE, RH

main64714-0P010-C0iGRX12#200510-201009

BLACK,TRIM0#,2#

sub64714-0P011

64715DCOVER, LUGGAGE COMPARTMENT TRIM, SIDE, LH

main64715-0P010-C0iGRX12#200510-201009

BLACK,TRIM0#,2#

sub64715-0P011

64717ACOVER, LUGGAGE COMPARTMENT TRIM, FRONT

main64717-0P010-C1iGRX12#200510-201009

BLACK,TRIM0#,2#

sub64717-0P011

64718BCOVER, LUGGAGE TRIM SERVICE HOLE

main64718-0P010-C0iGRX12#200510-201009

BLACK,TRIM0#,2#

64719ACOVER, LUGGAGE COMPARTMENT DOOR

main64719-0P010-C0iGRX12#200510-201009

BLACK,TRIM0#,2#

sub64719-0P011

64719BCLIP(FOR LUGGAGE COMPARTMENT DOOR)

main90467-08186-C0iGRX12#200510-201009

BLACK,TRIM0#,2#

sub90467-08186

64721BCOVER, LUGGAGE COMPARTMENT TRIM, NO.1

main90467-08186-C0iGRX12#200510-201009

BLACK,TRIM0#,2#

sub90467-08186

75201ABOX, TOOL

main75201-0P010-C0iGRX12#200510-201009

BLACK,TRIM0#,2#

sub75201-0P011

12 parts on this diagram · 2 diagrams in section
