INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING

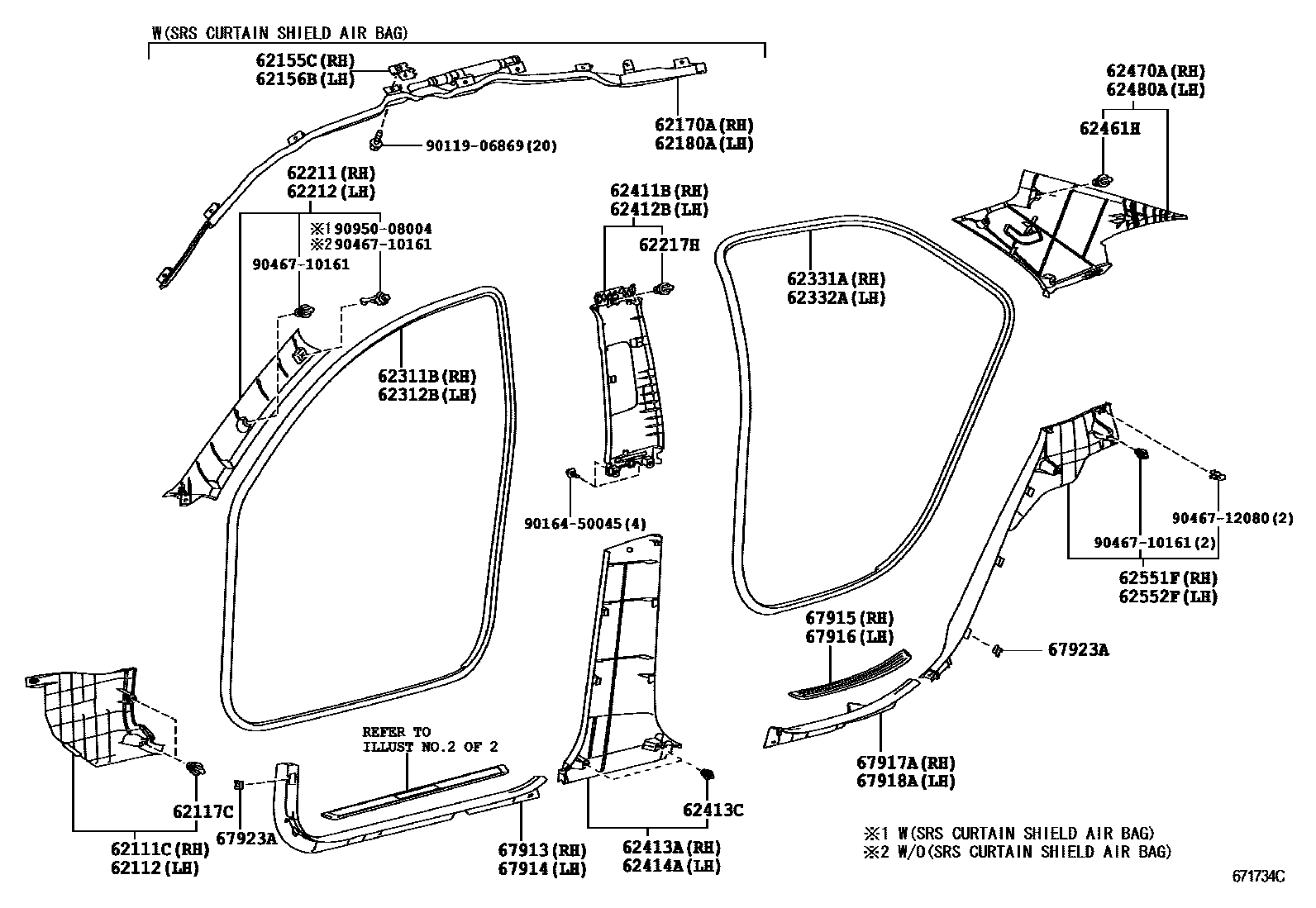

Parts diagram
62111CBOARD, COWL SIDE TRIM, RH
main62111-0P010-A0i200510-200610
IVORY,TRIM0#
sub62111-0P011
main62111-0P010-C0i200510-200610
BLACK,TRIM2#
sub62111-0P011
main62111-0P011-A0i200611-201009
IVORY,TRIM0#
main62111-0P011-C0i200611-201009
BLACK,TRIM2#
62112BOARD, COWL SIDE TRIM, LH
main62112-0P010-A0i200510-200610
IVORY,TRIM0#
sub62112-0P011
main62112-0P010-C0i200510-200610
BLACK,TRIM2#
sub62112-0P011
main62112-0P011-A0i200611-201009
IVORY,TRIM0#
main62112-0P011-C0i200611-201009
BLACK,TRIM2#
62117CCLIP, NO.2(FOR COWL SIDE TRIM)
main90467-10161i200510-200710
62155CBRACKET, CURTAIN SHIELD AIRBAG, RH
main62155-0P010i200510-200710
62156BBRACKET, CURTAIN SHIELD AIRBAG, LH
main62156-0P010i200510-200710
62170AAIRBAG ASSY, CURTAIN SHIELD, RH
main62170-22040i200510-200710
62180AAIRBAG ASSY, CURTAIN SHIELD, LH
main62180-22040i200510-200710
62211GARNISH, FRONT PILLAR, RH
main62211-0P010-A1i200510-200610
IVORY,TRIM0#
sub62211-0P011
main62211-0P010-B1i200510-200610
LT.GRAY,TRIM2#
sub62211-0P011
main62211-0P011-A1i200611-201009
IVORY,TRIM0#
main62211-0P011-B1i200611-201009
LT.GRAY,TRIM2#
main62211-0P020-A1i200510-200610
IVORY,TRIM0#
sub62211-0P021
main62211-0P020-B1i200510-200610
LT.GRAY,TRIM2#
sub62211-0P021
main62211-0P021-A1i200611-201009
IVORY,TRIM0#
main62211-0P021-B1i200611-201009
LT.GRAY,TRIM2#
62212GARNISH, FRONT PILLAR, LH
main62212-0P010-A1i200510-200610
IVORY,TRIM0#
sub62212-0P011
main62212-0P010-B1i200510-200610
LT.GRAY,TRIM2#
sub62212-0P011
main62212-0P011-A1i200611-201009
IVORY,TRIM0#
main62212-0P011-B1i200611-201009
LT.GRAY,TRIM2#
main62212-0P020-A1i200510-200610
IVORY,TRIM0#
sub62212-0P021
main62212-0P020-B1i200510-200610
LT.GRAY,TRIM2#
sub62212-0P021
main62212-0P021-A1i200611-201009
IVORY,TRIM0#
main62212-0P021-B1i200611-201009
LT.GRAY,TRIM2#
62217HCLIP, CENTER PILLER GARNISH
main62217-13010i200510-200710
62311BWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH
main62311-0P010-A0i200510-201009
IVORY,TRIM0#
main62311-0P010-C0i200510-201009
BLACK,TRIM2#
62312BWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH
main62312-0P010-A0i200510-201009
IVORY,TRIM0#
main62312-0P010-C0i200510-201009
BLACK,TRIM2#
62331AWEATHERSTRIP, REAR DOOR OPENING TRIM, RH
main62331-0P010-A0i200510-201009
IVORY,TRIM0#
main62331-0P010-C0i200510-201009
BLACK,TRIM2#
62332AWEATHERSTRIP, REAR DOOR OPENING TRIM, LH
main62332-0P010-A0i200510-201009
IVORY,TRIM0#
main62332-0P010-C0i200510-201009
BLACK,TRIM2#
62411BGARNISH, CENTER PILLAR, UPPER RH
main62411-0P010-A1i200510-200610
IVORY,TRIM0#
sub62411-0P011
main62411-0P010-B1i200510-200610
LT.GRAY,TRIM2#
sub62411-0P011
main62411-0P011-A1i200611-201009
IVORY,TRIM0#
main62411-0P011-B1i200611-201009
LT.GRAY,TRIM2#
62412BGARNISH, CENTER PILLAR, UPPER LH
main62412-0P010-A1i200510-200610
IVORY,TRIM0#
sub62412-0P011
main62412-0P010-B1i200510-200610
LT.GRAY,TRIM2#
sub62412-0P011
main62412-0P011-A1i200611-201009
IVORY,TRIM0#
main62412-0P011-B1i200611-201009
LT.GRAY,TRIM2#
62413AGARNISH, CENTER PILLAR, LOWER RH
main62413-0P010-A0i200510-200610
IVORY,TRIM0#
sub62413-0P011
main62413-0P010-C0i200510-200610
BLACK,TRIM2#
sub62413-0P011
main62413-0P011-A0i200611-201009
IVORY,TRIM0#
main62413-0P011-C0i200611-201009
BLACK,TRIM2#
62413CCLIP (FOR CENTER LOWER GARNISH)
main90467-10161i200510-200710
62414AGARNISH, CENTER PILLAR, LOWER LH
main62414-0P010-A0i200510-200610
IVORY,TRIM0#
sub62414-0P011
main62414-0P010-C0i200510-200610
BLACK,TRIM2#
sub62414-0P011
main62414-0P011-A0i200611-201009
IVORY,TRIM0#
main62414-0P011-C0i200611-201009
BLACK,TRIM2#
62461HCLIP (FOR ROOF SIDE INNER GARNISH)
main90467-10161i200510-200710
62470AGARNISH ASSY, ROOF SIDE, INNER RH
main62470-0P010-A1i200510-200610
IVORY,TRIM0#
sub62470-0P011
main62470-0P010-B1i200510-200610
LT.GRAY,TRIM2#
sub62470-0P011
main62470-0P011-A1i200611-201009
IVORY,TRIM0#
sub62470-0P012
main62470-0P011-B1i200611-201009
LT.GRAY,TRIM2#
sub62470-0P012
main62470-0P020-A1i200510-200610
IVORY,TRIM0#
sub62470-0P021
main62470-0P020-B1i200510-200610
LT.GRAY,TRIM2#
sub62470-0P021
main62470-0P021-A1i200611-201009
IVORY,TRIM0#
main62470-0P021-B1i200611-201009
LT.GRAY,TRIM2#
62480AGARNISH ASSY, ROOF SIDE, INNER LH
main62480-0P010-A1i200510-200610
IVORY,TRIM0#
sub62480-0P011
main62480-0P010-B1i200510-200610
LT.GRAY,TRIM2#
sub62480-0P011
main62480-0P011-A1i200611-201009
IVORY,TRIM0#
sub62480-0P012
main62480-0P011-B1i200611-201009
LT.GRAY,TRIM2#
sub62480-0P012
main62480-0P020-A1i200510-200610
IVORY,TRIM0#
sub62480-0P021
main62480-0P020-B1i200510-200610
LT.GRAY,TRIM2#
sub62480-0P021
main62480-0P021-A1i200611-201009
IVORY,TRIM0#
main62480-0P021-B1i200611-201009
LT.GRAY,TRIM2#
62551FGARNISH, REAR SEAT SIDE, RH
main62551-0P010-A0i200510-200610
IVORY,TRIM0#
sub62551-0P011
main62551-0P010-C0i200510-200610
BLACK,TRIM2#
sub62551-0P011
main62551-0P011-A0i200611-201009
IVORY,TRIM0#
main62551-0P011-A0i200710-201009
OLYMPIC PACKAGE,IVORY,TRIM0#
main62551-0P011-C0i200611-201009
BLACK,TRIM2#
main62551-0P011-C0i200710-201009
OLYMPIC PACKAGE,BLACK,TRIM2#
62552FGARNISH, REAR SEAT SIDE, LH
main62552-0P010-A0i200510-200610
IVORY,TRIM0#
sub62552-0P011
main62552-0P010-C0i200510-200610
BLACK,TRIM2#
sub62552-0P011
main62552-0P011-A0i200611-201009
IVORY,TRIM0#
main62552-0P011-A0i200710-201009
OLYMPIC PACKAGE,IVORY,TRIM0#
main62552-0P011-C0i200611-201009
BLACK,TRIM2#
main62552-0P011-C0i200710-201009
OLYMPIC PACKAGE,BLACK,TRIM2#
67913PLATE, FRONT DOOR SCUFF, RH
main67913-0P010-A0i200510-200610
IVORY,TRIM0#
sub67913-0P011
main67913-0P010-C0i200510-200610
BLACK,TRIM2#
sub67913-0P011
main67913-0P011-A0i200611-201009
IVORY,TRIM0#
main67913-0P011-A0i200710-201009
OLYMPIC PACKAGE,IVORY,TRIM0#
main67913-0P011-C0i200710-201009
OLYMPIC PACKAGE,BLACK,TRIM2#
main67913-0P011-C0i200611-201009
BLACK,TRIM2#
67914PLATE, FRONT DOOR SCUFF, LH
main67914-0P010-A0i200510-200610
IVORY,TRIM0#
sub67914-0P011
main67914-0P010-C0i200510-200610
BLACK,TRIM2#
sub67914-0P011
main67914-0P011-A0i200611-201009
IVORY,TRIM0#
main67914-0P011-A0i200710-201009
OLYMPIC PACKAGE,IVORY,TRIM0#
main67914-0P011-C0i200611-201009
BLACK,TRIM2#
main67914-0P011-C0i200710-201009
OLYMPIC PACKAGE,BLACK,TRIM2#
67915PLATE, REAR DOOR SCUFF, OUTSIDE RH
main67915-0P010i200510-200710
main67915-0P010i200710
OLYMPIC PACKAGE
main67930-0P010i200703-200710
2.5S SPECIAL MOON ROOF VERSION
main67930-0P010i200510-200710
2.5S SPECIAL VERSION
main67930-0P010i200710
67916PLATE, REAR DOOR SCUFF, OUTSIDE LH
main67916-0P010i200510-200710
main67916-0P010i200710
OLYMPIC PACKAGE
main67940-0P010i200710
main67940-0P010i200510-200710
2.5S SPECIAL VERSION
main67940-0P010i200703-200710
2.5S SPECIAL MOON ROOF VERSION
67917APLATE, REAR DOOR SCUFF, RH
main67917-0P010-A0i200510-200610
IVORY,TRIM0#
sub67917-0P011
main67917-0P010-C0i200510-200610
BLACK,TRIM2#
sub67917-0P011
main67917-0P011-A0i200611-201009
IVORY,TRIM0#
main67917-0P011-A0i200710-201009
OLYMPIC PACKAGE,IVORY,TRIM0#
main67917-0P011-C0i200710-201009
OLYMPIC PACKAGE,BLACK,TRIM2#
main67917-0P011-C0i200611-201009
BLACK,TRIM2#
67918APLATE, REAR DOOR SCUFF, LH
main67918-0P010-A0i200510-200610
IVORY,TRIM0#
sub67918-0P011
main67918-0P010-C0i200510-200610
BLACK,TRIM2#
sub67918-0P011
main67918-0P011-A0i200611-201009
IVORY,TRIM0#
main67918-0P011-A0i200710-201009
OLYMPIC PACKAGE,IVORY,TRIM0#
main67918-0P011-C0i200710-201009
OLYMPIC PACKAGE,BLACK,TRIM2#
main67918-0P011-C0i200611-201009
BLACK,TRIM2#
67923ACLAMP, DOOR SCUFF PLATE, NO.1
main67923-30030i200510-200710
main67923-30030i200703-200710
2.5S SPECIAL MOON ROOF VERSION
main67923-30030i200710
OLYMPIC PACKAGE
9011906869
main90119-06869
9016450045
main90164-50045
9046710161
main90467-10161
9046712080
main90467-12080
9095008004
main90950-08004

36 parts on this diagram · 2 diagrams in section
