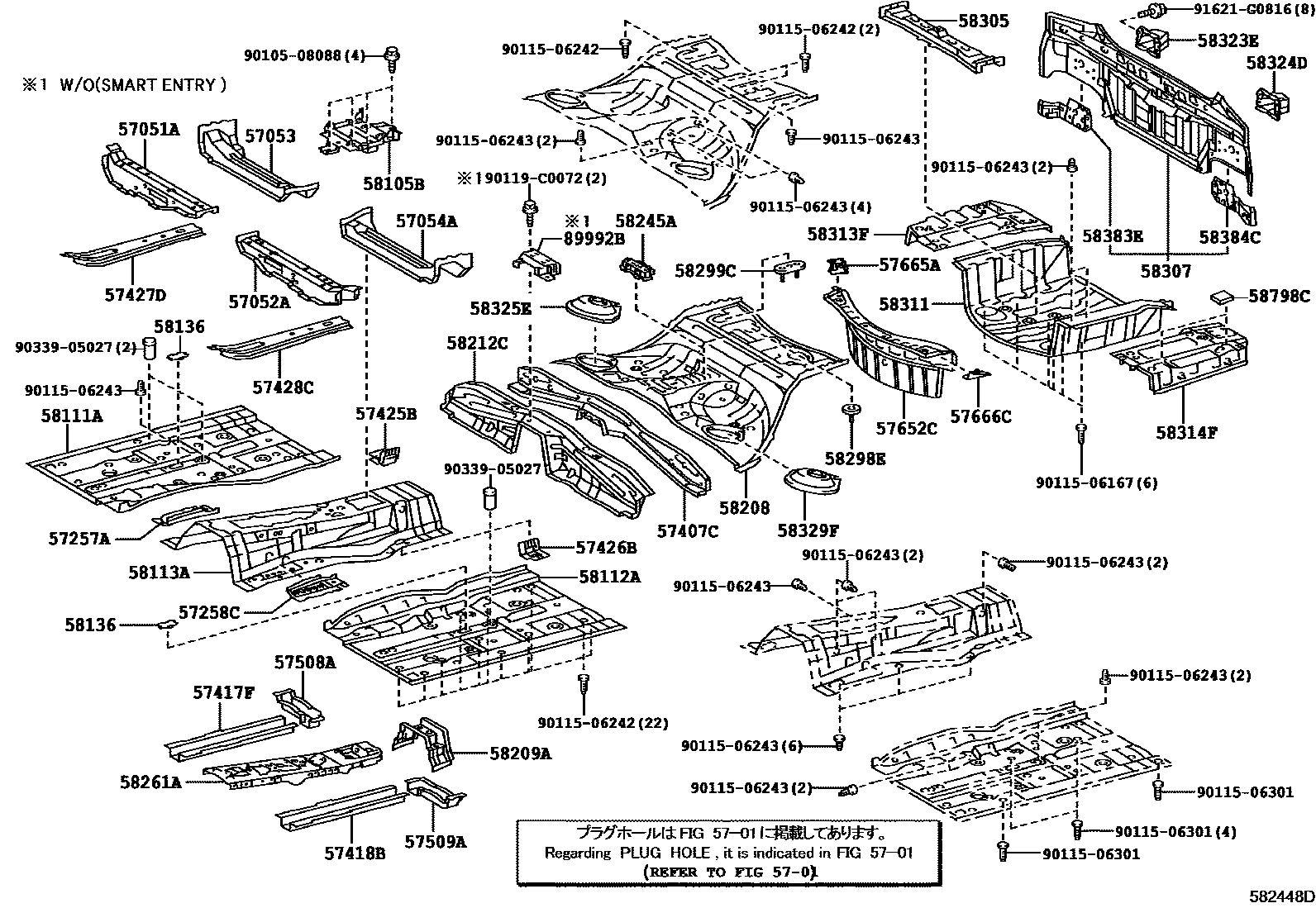

FLOOR PAN & LOWER BACK PANEL

0001 1 0002 1FLOOR UNDER COVER

5701

57051AMEMBER SUB-ASSY, FRONT FLOOR CROSS, RH

main57051-30110iGRX12#200510-200710

57052AMEMBER SUB-ASSY, FRONT FLOOR CROSS, LH

main57052-22090iGRX12#200510-200710

57053REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, RH

main57053-30071iGRX12#200510-200710

57054AREINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, LH

main57054-30071iGRX12#200510-200708

57257ABRACKET, ENGINE REAR MOUNTING MEMBER, RH

main57257-30040iGRX12#200510-200703

main57257-30041iGRX12#200703-200704

57258CBRACKET, ENGINE REAR MOUNTING MEMBER, LH

main57258-30090iGRX12#200510-200703

main57258-30091iGRX12#200703-200704

57407CMEMBER SUB-ASSY, CENTER FLOOR CROSS, NO.1

main57407-0N010iGRX12#200510-200710

57417FREINFORCEMENT, FRONT FLOOR UNDER, RH

main57417-30080iGRX12#200510-200710

57418BREINFORCEMENT, FRONT FLOOR UNDER, LH

main57417-30080iGRX12#200510-200708

57425BREINFORCEMENT, FRONT FLOOR, NO.2 RH

main57425-30020iGRX12#200510-200704

57426BREINFORCEMENT, FRONT FLOOR, NO.2 LH

main57426-30020iGRX12#200510-200704

57427DREINFORCEMENT, FRONT FLOOR, NO.3 RH

main57427-30030iGRX12#200710

57428CREINFORCEMENT, FRONT FLOOR, NO.3 LH

main57427-30030iGRX12#200510-200710

57508AREINFORCEMENT SUB-ASSY, FRONT FLOOR, RH

main57508-0P010iGRX12#200510-200710

57509AREINFORCEMENT SUB-ASSY, FRONT FLOOR, LH

main57509-0P010iGRX12#200709-200710

57652CMEMBER, REAR FLOOR CROSS, NO.1

main57652-0N010iGRX12#200510-200710

57665AREINFORCEMENT, REAR FLOOR CROSSMEMBER, NO.2

main57665-22030iGRX12#200510-200710

57666CREINFORCEMNT, REAR FLOOR CROSSMEMBER

main57666-22030iGRX12#200510-200710

58105BPANEL SUB-ASSY, FRONT FLOOR REAR UPPER SUB

main58105-30040iGRX12#200510-200710

58111APAN, FRONT FLOOR, RH

main58111-30450iGRX12#200510-200710

sub58111-30451

58112APANEL, FRONT FLOOR, LH

main58112-30160iGRX12#200510-200709

sub90950-01950

main58112-30161iGRX12#200710

sub58112-30162

58113APANEL, FRONT FLOOR, CENTER

main58113-0N010iGRX12#200510-200704

58136COVER, FRONT FLOOR HOLE

main58136-51010×2iGRX12#200510-200710

58208PAN, CENTER FLOOR

main58211-0N010iGRX12#200510-200710

58209AREINFORCEMENT SUB-ASSY, DRIVE SHAFT CENTER SUPPORT

main58209-30050iGRX12#200510-200710

58212CPAN, CENTER FLOOR, FRONT

main58202-0N010iGRX12#200510-200710

58245ABRACKET, REAR SEAT HINGE, CENTER NO.1

main58245-0P010iGRX12#200510-200710

58261ACOVER, TRANSMISSION

main58261-30231iGRX12#200510-200710

58298EBRACKET, HOT AIR INTAKE, NO.1

main58298-30030iGRX12#200510-200710

58299CBRACKET, HOT AIR INTAKE, NO.2

main58299-30010iGRX12#200510-200710

58305BRACKET SUB-ASSY, SPARE WHEEL CLAMP

main58305-0N010iGRX12#200510-200710

58307PANEL SUB-ASSY, BODY LOWER BACK

main58307-0P010iGRX12#200510-200710

58311PAN, REAR FLOOR

main58311-0P010iGRX12#200510-200710

58313FEXTENSION, REAR FLOOR PAN TO QUARTER PANEL, RH

main58313-0P010iGRX12#200710-201009

58314FEXTENSION, REAR FLOOR PAN TO QUARTER PANEL, LH

main58303-0P020iGRX12#200510-200710

58323EREINFORCEMENT, REAR BUMPER ARM SUPPORT, RH

main58323-0P010iGRX12#200510-200710

main58323-0P020iGRX12#200710

58324DREINFORCEMENT, REAR BUMPER ARM SUPPORT, LH

main58324-0P010iGRX12#200510-200710

main58324-0P021iGRX12#200710

58325ECOVER, REAR FLOOR SERVICE HOLE

main58325-30020iGRX12#200510-200710

58329FCOVER, REAR FLOOR SERVICE HOLE, NO.2

main58329-30030iGRX12#200510-200710

58383EREINFORCEMENT, BODY LOWER BACK, NO.2 RH

main58383-0P010iGRX12#200510-200710

58384CREINFORCEMENT, BODY LOWER BACK, NO.2 LH

main58384-0P010iGRX12#200510-200710

58798CCUSHION, JACK CARRIER

main58798-0N020iGRX12#200510-200710

FRONT

main58798-0P010iGRX12#200510-200710

REAR

89992BCASE, LESS OSCILLATOR ELECTRICAL KEY

main89992-0P040iGRX122200510-200710

9010508088

main90105-08088

9011506167

main90115-06167

9011506242

main90115-06242

9011506243

main90115-06243

9011506301

main90115-06301

90119C0072

main90119-C0072

9033905027

main90339-05027

91621G0816

main91621-G0816
