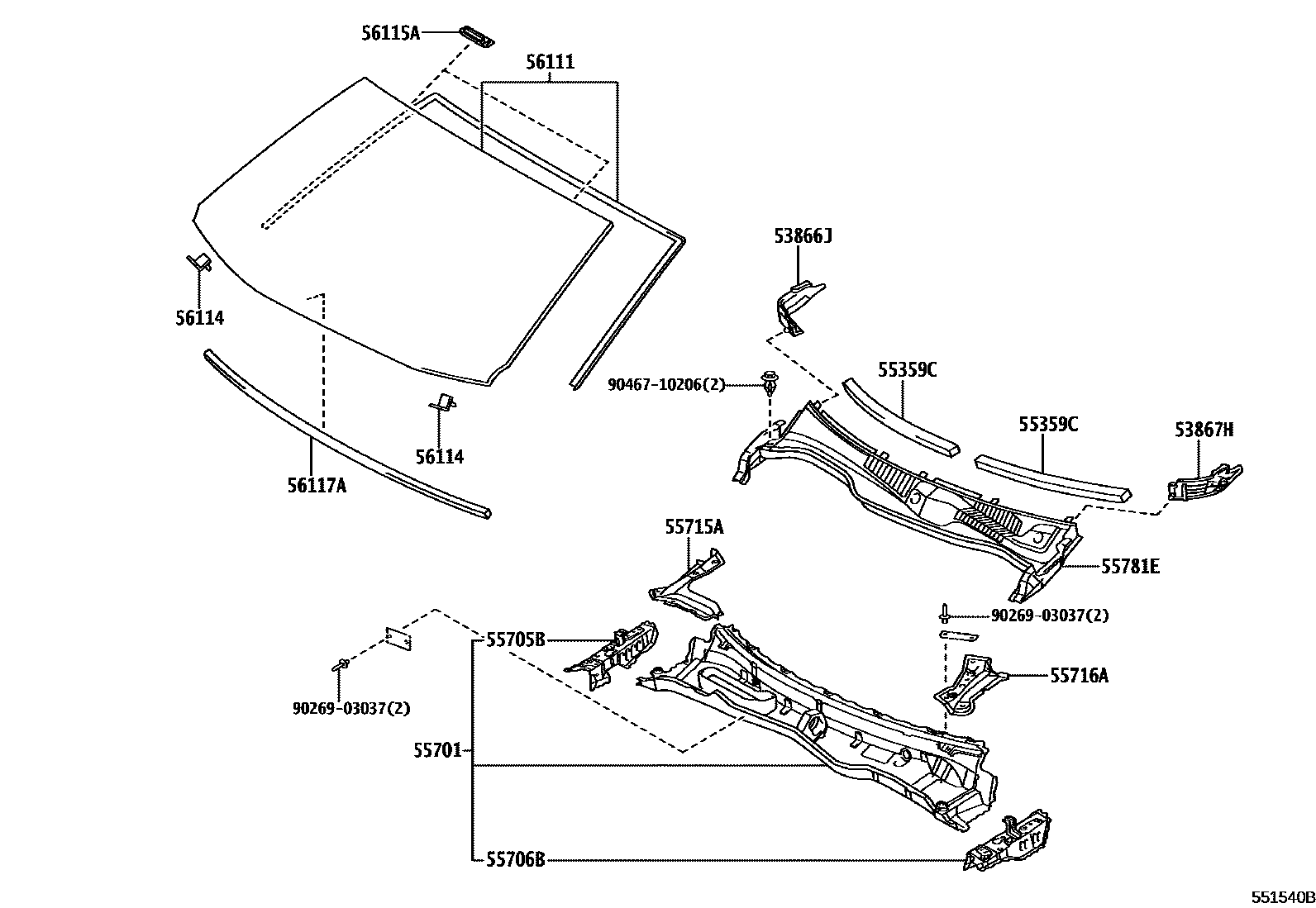

COWL PANEL & WINDSHIELD GLASS

53866JSEAL, FRONT FENDER TO COWL SIDE, RH

main53866-0P010iGRX12#200510-200710

53867HSEAL, FRONT FENDER TO COWL SIDE, LH

main53867-0P010iGRX12#200510-200710

55359CCOSHION, INSTRUMENT PANEL, NO.5

main55359-0P010×2iGRX12#200510-200710

55701PANEL SUB-ASSY, COWL

main55700-0P010iGRX12#200510-200710

55705BPANEL SUB-ASSY, COWL TOP SIDE, RH

main55705-0P010iGRX12#200510-200710

55706BPANEL SUB-ASSY, COWL TOP SIDE, LH

main55706-0P010iGRX12#200510-200710

55715ABRACE, COWL TOP TO APRON, RH

main55715-0P010iGRX12#200510-200710

55716ABRACE, COWL TOP TO APRON, LH

main55716-0P010iGRX12#200510-200710

55781ELOUVER SUB-ASSY, COWL TOP VENTILATOR

main55708-0P010iGRX12#200510-200710

56111GLASS, WINDSHIELD

main56101-0P010iGRX122200510-200710

*LAM,T=4.7,GREEN

main56101-0P020iGRX121200510-200710

*LAM,T=4.7,GREEN

56114RETAINER, WINDSHIELD GLASS

main56114-22050×2iGRX12#200510-200710

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-30110×2iGRX12#200510-200710

56117ADAM, WINDOW GLASS ADHESIVE

main56117-0P010iGRX12#200510-200710

L=1382

9026903037

main90269-03037

9046710206

main90467-10206

15 parts on this diagram · 1 diagram in section
