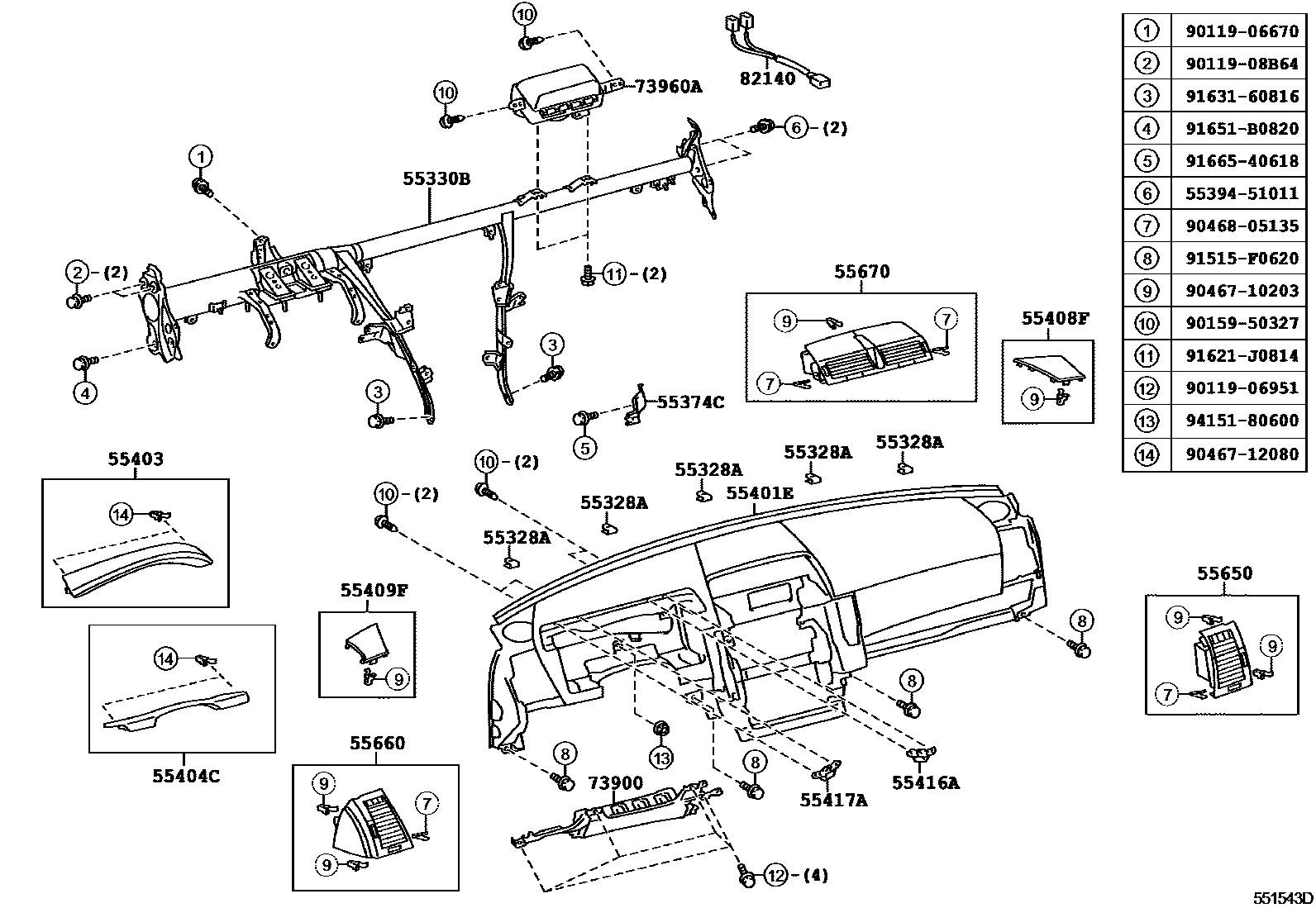

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1DRIVER SIDE 0003 1CENTER 0004 1PASSENGER SIDE

55328ASTAY, INSTRUMENT PANEL, NO.3

main55328-0P020×5iGRX12#200710

55330BREINFORCEMENT ASSY, INSTRUMENT PANEL

main55330-0P010iGRX12#200510-200710

55374CBRACKET, INSTRUMENT PANEL LOWER MOUNTING, NO.1

main55374-0N010iGRX12#200510-200710

55401EPAD SUB-ASSY, INSTRUMENT PANEL SAFETY

main55400-0P010-C0iGRX12#200510-200710

BLACK,TRIM0#,2#

main55400-0P011-C0iGRX121200809-201009

BLACK,TRIM0#,2#

sub55400-0P012

55403HOOD SUB-ASSY, METER

main55403-0P010-C0iGRX12#200510-200710

BLACK,TRIM0#,2#

55404CPANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, NO.2

main55404-0P010-C0iGRX12#200710-201009

BLACK,TRIM0#,2#

55408FPANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.1

main55408-0P010-C0iGRX12#200510-200710

BLACK,TRIM0#,2#

55409FPANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.2

main55409-0P010-C0iGRX12#200510-200710

BLACK,TRIM0#,2#

55416ARETAINER, METER HOOD, NO.1

main55416-30150iGRX12#200510-200710

55417ARETAINER, METER HOOD, NO.2

main55417-30070iGRX12#200710

55650REGISTER ASSY, INSTRUMENT PANEL, NO.1

main55650-0P010-C0iGRX12#200710-201009

BLACK,TRIM0#,2#

55660REGISTER ASSY, INSTRUMENT PANEL, NO.2

main55660-0P010-C0iGRX12#200710-201009

BLACK,TRIM0#,2#

55670REGISTER ASSY, INSTRUMENT PANEL, NO.3

main55670-0P010-C0iGRX12#200510-200710

BLACK,TRIM0#,2#

73900AIRBAG ASSY, INSTRUMENT PANEL, LOWER NO.1

main73900-0P010-A0iGRX12#200710-201009

IVORY,TRIM0#

main73900-0P010-C0iGRX12#200510-200710

BLACK,TRIM2#

73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR

main73960-0P010iGRX12#200510-200710

82140WIRE ASSY, INSTRUMENT PANEL

main82140-0N010iGRX12#200510-200710

5539451011BRACKET, INSTRUMENT PANEL TO PEDAL

main55394-51011

9011906670

main90119-06670

9011906951

main90119-06951

9011908B64

main90119-08B64

9015950327

main90159-50327

9046710203

main90467-10203

9046712080

main90467-12080

9046805135

main90468-05135

91515F0620

main91515-F0620

91621J0814

main91621-J0814

9163160816

main91631-60816

91651B0820

main91651-B0820

9166540618

main91665-40618

9415180600

main94151-80600

30 parts on this diagram · 4 diagrams in section
