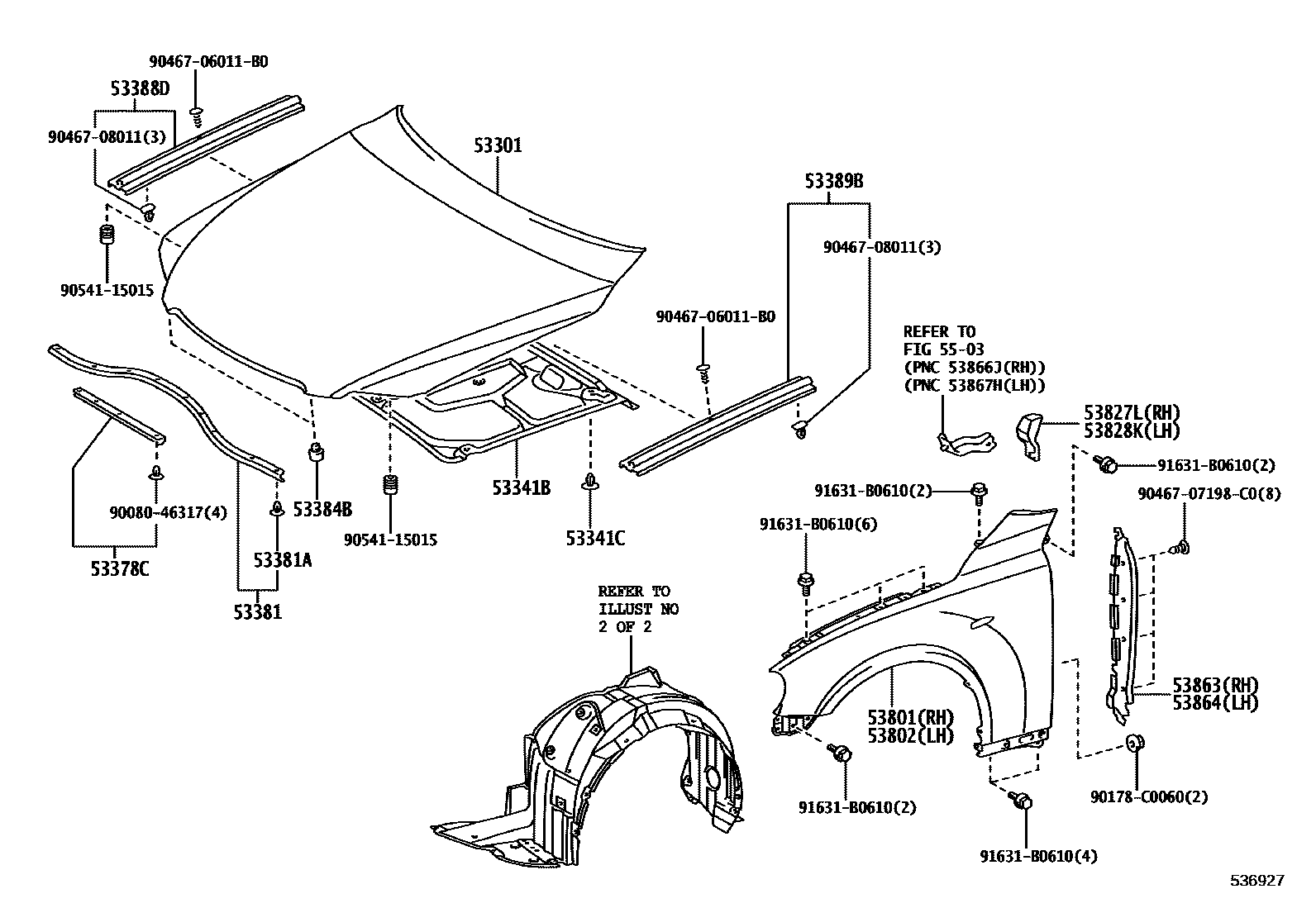

HOOD & FRONT FENDER

0001 1 0002 1FENDER LINER

53301HOOD SUB-ASSY

main53301-0P010iGRX12#200510-200710

53341BINSULATOR, HOOD

main53341-0P010iGRX12#200510-200710

53341CCLIP(FOR HOOD INSULATOR)

main90467-08124×8iGRX12#200510-200710

53378CSEAL, HOOD AIR INTAKE DUCT

main53378-0P010iGRX12#200510-200710

53381SEAL, HOOD TO RADIATOR SUPPORT

main53381-0P010iGRX12#200510-200710

53381ACLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)

main90080-46317×9iGRX12#200510-200710

53384BCUSHION, HOOD, CENTER

main53384-60050×2iGRX12#200510-200710

53388DSEAL, HOOD TO FRONT FENDER, RH

main53388-0P010iGRX12#200510-200710

53389BSEAL, HOOD TO FRONT FENDER, LH

main53389-0P010iGRX12#200510-200710

53801FENDER SUB-ASSY, FRONT RH

main53811-0P010iGRX12#200510-200710

main53811-0P020iGRX12#200710

53802FENDER SUB-ASSY, FRONT LH

main53812-0P010iGRX12#200510-200710

main53812-0P020iGRX12#200710

53827LPROTECTOR, FRONT FENDER SIDE PANEL, RH

main53827-0P010iGRX12#200510-200710

53828KPROTECTOR, FRONT FENDER SIDE PANEL, LH

main53828-0P010iGRX12#200510-200710

53863SEAL, FRONT FENDER TO DOOR HINGE, LOWER RH

main53863-22040iGRX12#200510-200710

53864SEAL, FRONT FENDER TO DOOR HINGE, LOWER LH

main53864-22050iGRX12#200510-200710

5503

9008046317

main90080-46317

90178C0060

main90178-C0060

9046706011B0

main90467-06011B0

9046707198C0

main90467-07198C0

9046708011

main90467-08011

9054115015

main90541-15015

91631B0610

main91631-B0610

23 parts on this diagram · 2 diagrams in section
