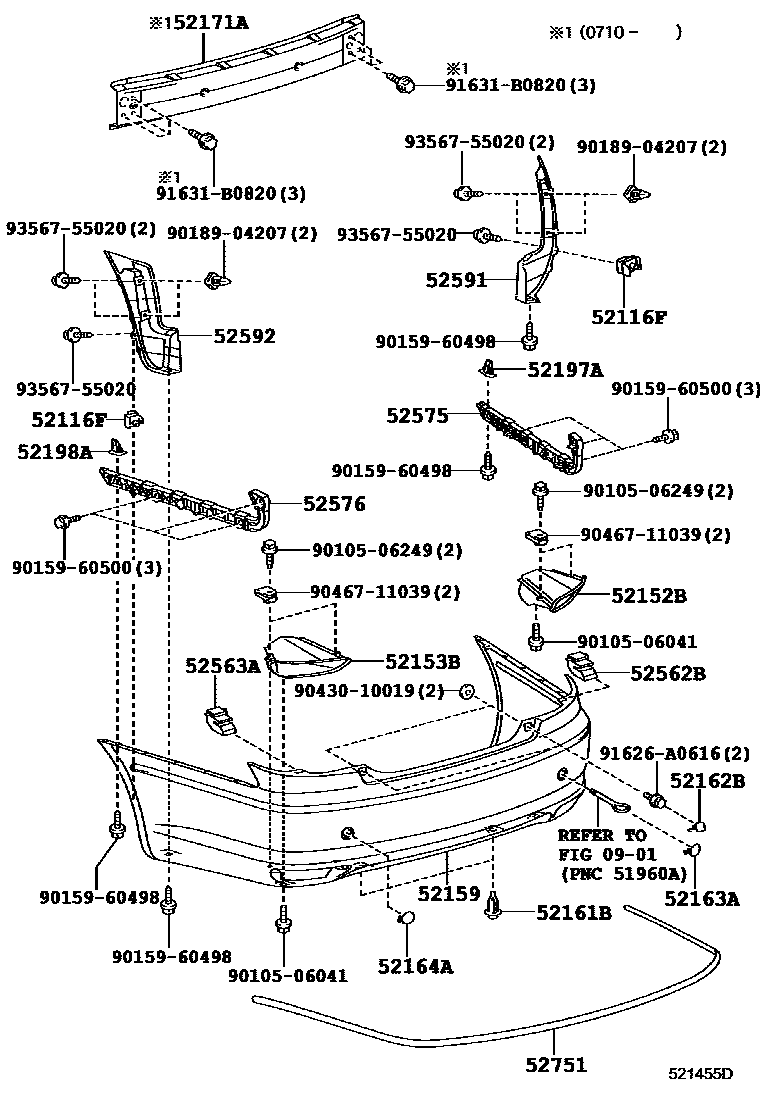

REAR BUMPER & BUMPER STAY
0901
52116FRETAINER, REAR BUMPER
52152BEXTENSION, REAR BUMPER, RH
52153BEXTENSION, REAR BUMPER, LH
52159COVER, REAR BUMPER
PAINT REQ.
52161BPIECE, REAR BUMPER
sub52161-0K040
52162BPLATE, REAR BUMPER, NO.1
52163APLATE, REAR BUMPER, RH
52164APLATE, REAR BUMPER, LH
52171AREINFORCEMENT, REAR BUMPER, NO.1
52197ABRACKET, REAR BUMPER SEAL, RH
52198ABRACKET, REAR BUMPER SEAL, LH
52562BRETAINER, REAR BUMPER, UPPER RH
52563ARETAINER, REAR BUMPER, UPPER LH
52575RETAINER, REAR BUMPER SIDE, RH
52576RETAINER, REAR BUMPER SIDE, LH
52591SEAL, REAR BUMPER SIDE, RH
52592SEAL, REAR BUMPER SIDE, LH
52751MOULDING, REAR BUMPER
9010506041
main90105-06041
9010506249
main90105-06249
9015960498
main90159-60498
9015960500
main90159-60500
9018904207
main90189-04207
9043010019
main90430-10019
9046711039
main90467-11039
91626A0616
main91626-A0616
91631B0820
main91631-B0820
9356755020
main93567-55020
29 parts on this diagram · 1 diagram in section
