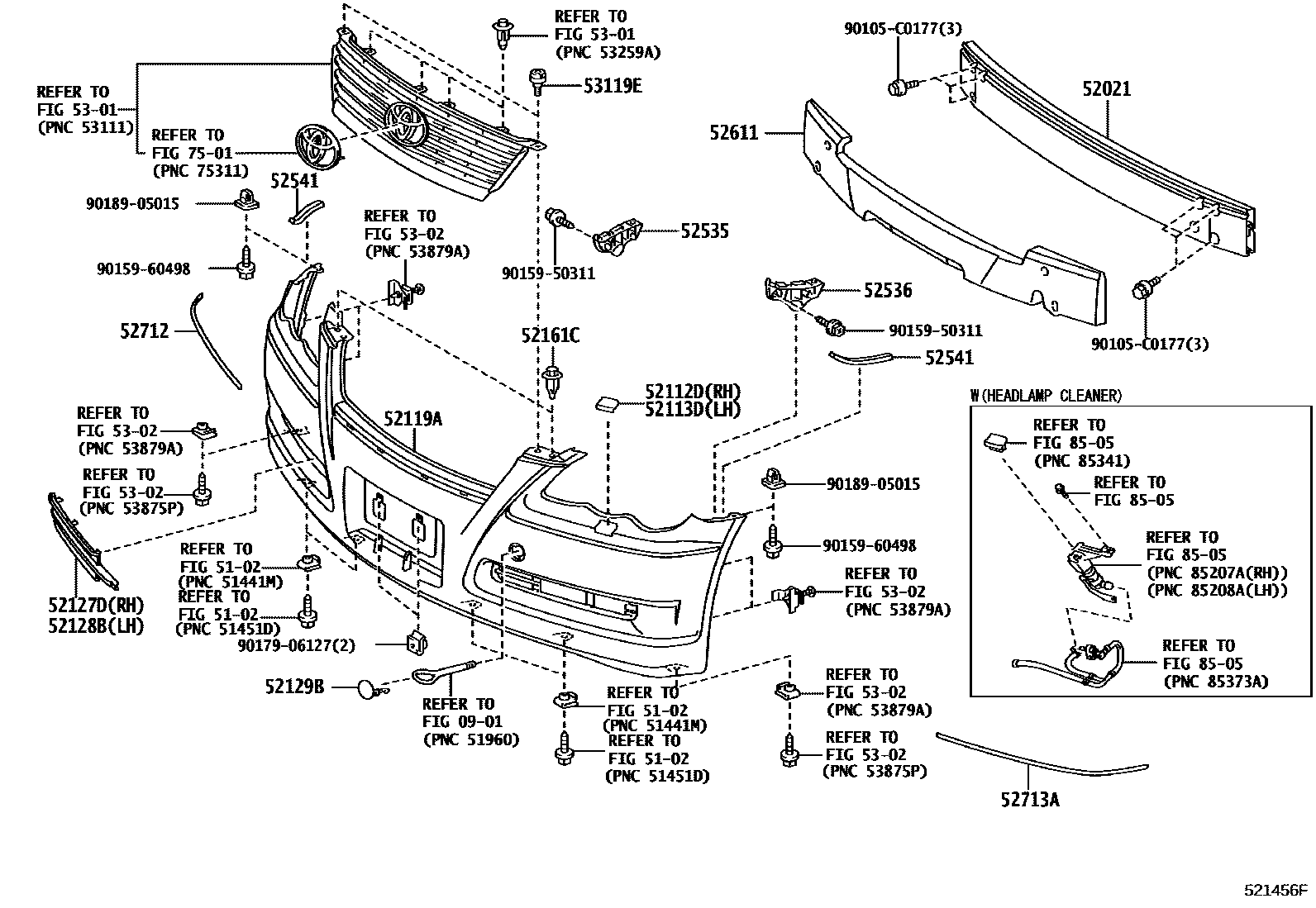

FRONT BUMPER & BUMPER STAY
0901
5102
52021REINFORCEMENT SUB-ASSY, FRONT BUMPER
52112DEXTENSION, FRONT BUMPER, RH
PAINT REQ.
52113DEXTENSION, FRONT BUMPER, LH
PAINT REQ.
52119ACOVER, FRONT BUMPER
PAINT REQ.
PAINT REQ.
PAINT REQ.,SPECIAL MOON ROOF VERSION
52127DCOVER, FRONT BUMPER HOLE, RH
52128BCOVER, FRONT BUMPER HOLE, LH
52129BCOVER, FRONT BUMPER, LOWER
52161CPIECE, FRONT BUMPER
sub52161-0K040
52535RETAINER, FRONT BUMPER SIDE, RH
52536RETAINER, FRONT BUMPER SIDE, LH
52541PROTECTOR, FRONT BUMPER
52611ABSORBER, FRONT BUMPER ENERGY
52712MOULDING, FRONT BUMPER SIDE, RH
52713AMOULDING, FRONT BUMPER SIDE, LH
5301
5302
53119EPROTECTOR, RADIATOR GRILLE
7501
8505
90105C0177
main90105-C0177
9015950311
main90159-50311
9015960498
main90159-60498
9017906127
main90179-06127
9018905015
main90189-05015
26 parts on this diagram · 1 diagram in section
